14.8 NETWK Unit Status Display
14.8.1 Functions of the NETWK unit status display
14.8 NETWK Unit Status Display
14.8.1 Functions of the NETWK unit status display
The network unit status display is a function that uses the communication units below to monitor the network
status.
• MELSECNET/H communication unit (GT15-J71LP23-25, GT15-J71BR13)
• CC-Link IE Controller Network communication unit (GT15-J71GP23-SX)
• CC-Link IE Field Network communication unit (GT15-J71GF13-T2)
• CC-Link communication unit (GT15-J61BT13)
The LED status or error status of a network module can be checked.
For the corrective actions for errors that occur on the network, refer to the following manual.
The Reference Manual of the MELSECNET/H or MELSECNET/10 network system
(PLC to PLC network) to be used
CC-Link IE Controller Network Reference Manual
The User's Manual of the CC-Link IE Field Network master/local module to be used
The User's Manual of the CC-Link system master/local module to be used

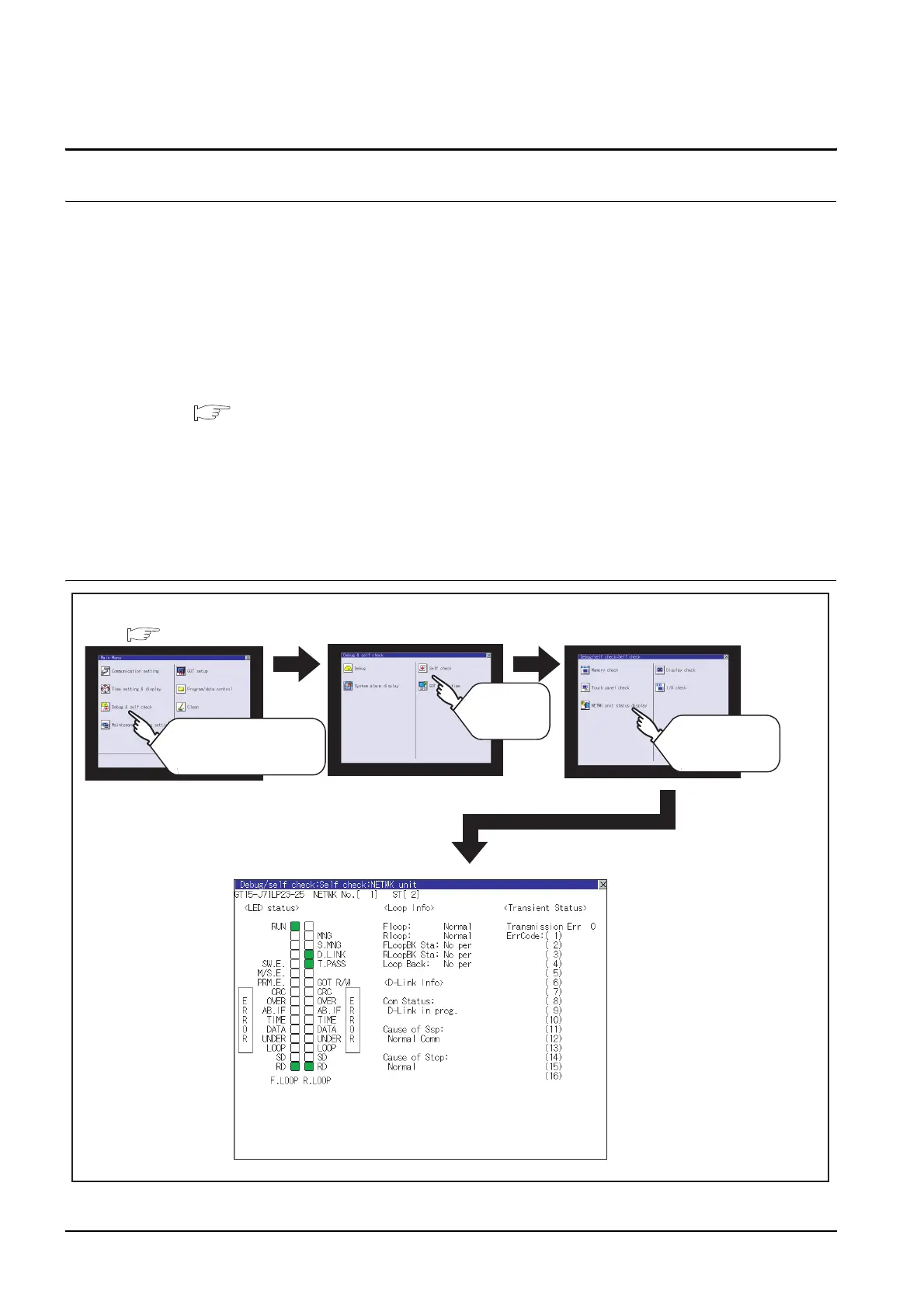

14.8.2 Displaying the NETWK unit status display
Main menu Debug & self check Self check
NETWK unit status display
Touch
[Debug & self check].
Touch
[NETWK unit status
display].
Touch
[Self check].
( 9.3 Utility Display)
