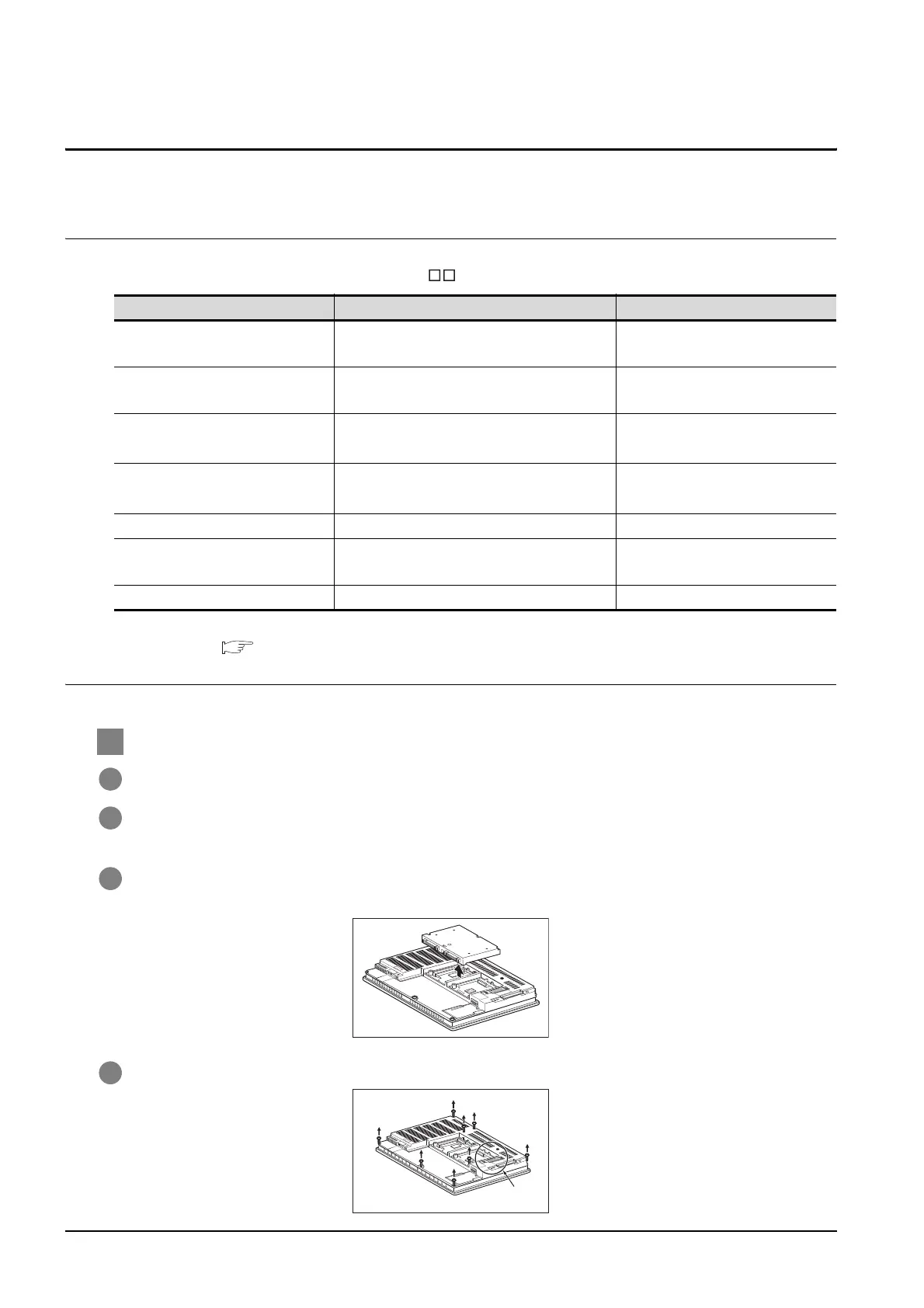

19.6 Backlight Replacement
19.6.1 Applicable backlight
19.6 Backlight Replacement
This section explains the backlight replacing methods.
19.6.1 Applicable backlight
The following backlights are applicable for GT15 .
*1 For how to check the function version, refer to the following.
Appendix 2 Confirming of Versions and Conformed Standards
19.6.2 Replacement procedure of backlight
1 For GT15-90XLTT
1 Power off the GOT.
2 Disconnect the power supply cable and communication cable.
Remove the GOT from the control panel.
3 Remove the extension unit cover on the right side of the GOT.
When extension units, including bus connection units, are mounted on the GOT, remove the units.
4 Remove the GOT rear fixing screws (8 pcs.) with a screwdriver.
Model name Description Target GOT
GT15-90XLTT
For 15" high intensity, wide angle view TFT
(XGA)
GT1595-X
GT15-80SLTT
For 12.1" high intensity, wide angle view
TFT (SVGA)
GT1585V-S, GT1585-S
GT15-70SLTT
For 10.4" high intensity, wide angle view
TFT (SVGA)
GT1575-S (Function version B or
earlier)
*1
GT15-70VLTT
For 10.4" high intensity, wide angle view
TFT (SVGA, VGA)
GT1575V-S (Function version C
or later)
*1
, GT1575-V
GT15-70VLTN For 10.4" TFT (VGA) GT1575-VN, GT1572-VN
GT15-60VLTT
For 8.4" high intensity, wide angle view TFT
(VGA)
GT1565-V
GT15-60VLTN For 8.4" TFT (VGA) GT1562-VN
