8.8 CF Card
8.8.4 CF card inserting/removing method with CF card extension unit
8 - 41
1
OVERVIEW
2
SYSTEM
CONFIGURATION
3
SPECIFICATIONS
4
PART NAME AND
SETTINGS
5
EMC AND LOW
VOLTAGE
DIRECTIVE
6
INSTALLATION
7
WIRING
8
OPTION
8.8.4 CF card inserting/removing method with CF card extension unit
Install/remove the CF card with the power supply of GOT is OFF or CF card access switch is OFF.

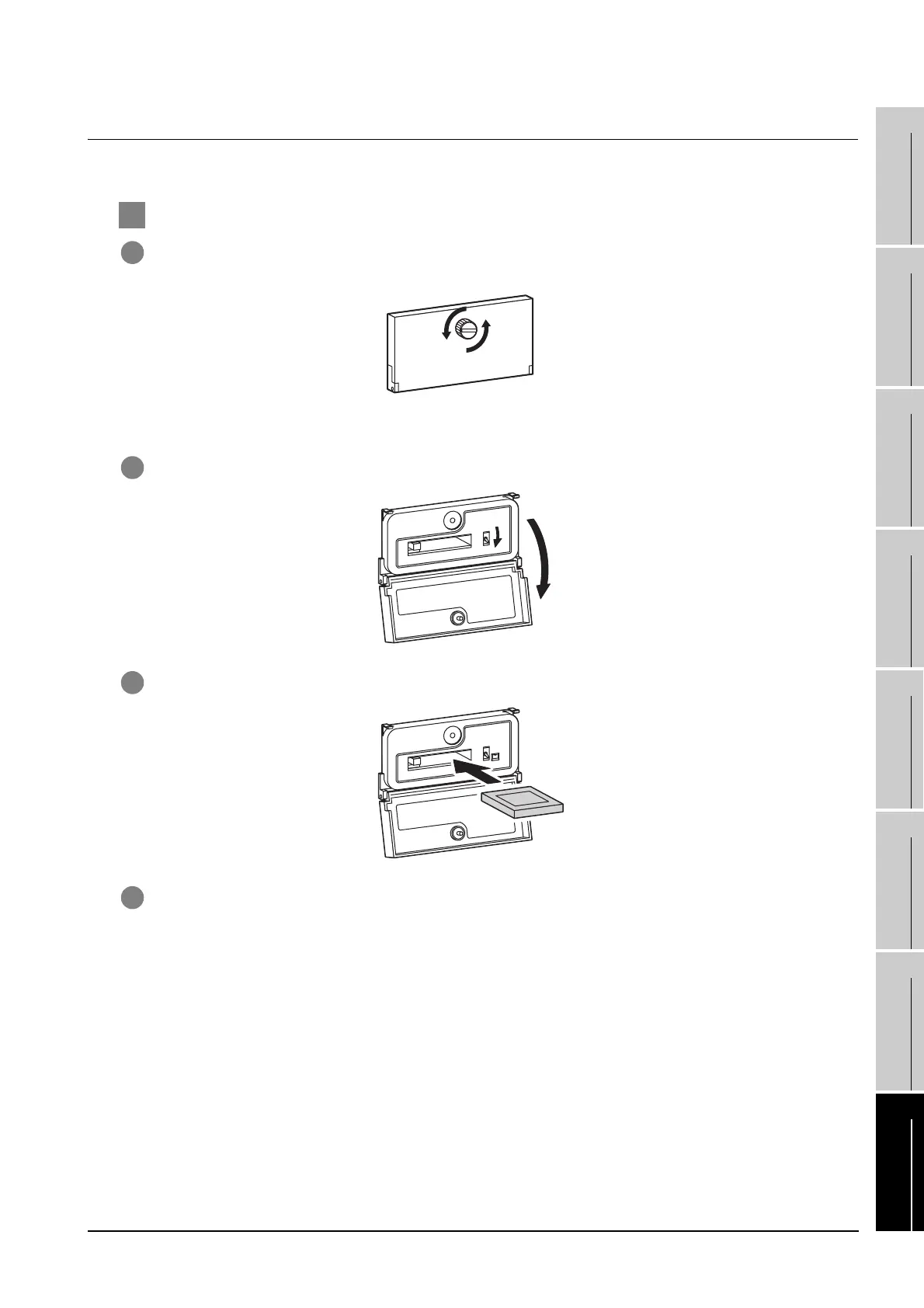

1 Installation
1 When the CF card cover is fixed with the CF card cover fixing screw, unscrew the screw.
2 Open the CF card cover, and turn off the CF card access switch of the unit.
3 Insert the CF card into the CF card connector with the front side facing up.
4 Turn on the CF card access switch.
To Next Page
