Mitsubishi GOT1000 GT15 User Manual

14.4 Drawing Check
14.4.3 Drawing check operation
14 - 9
9
UTILITY FUNCTION
10
COMMUNICATION INTERFACE SETTING
11
DISPLAY AND OPERATION SETTINGS
12
CLOCK SETTINGS AND BATTERY STATUS DISPLAY
13
FILE DISPLAY AND COPY
14
GOT SELF CHECK
15
CLEANING OF DISPLAY SECTION
16
MAINTENANCE TIME NOTIFICATION SETTING

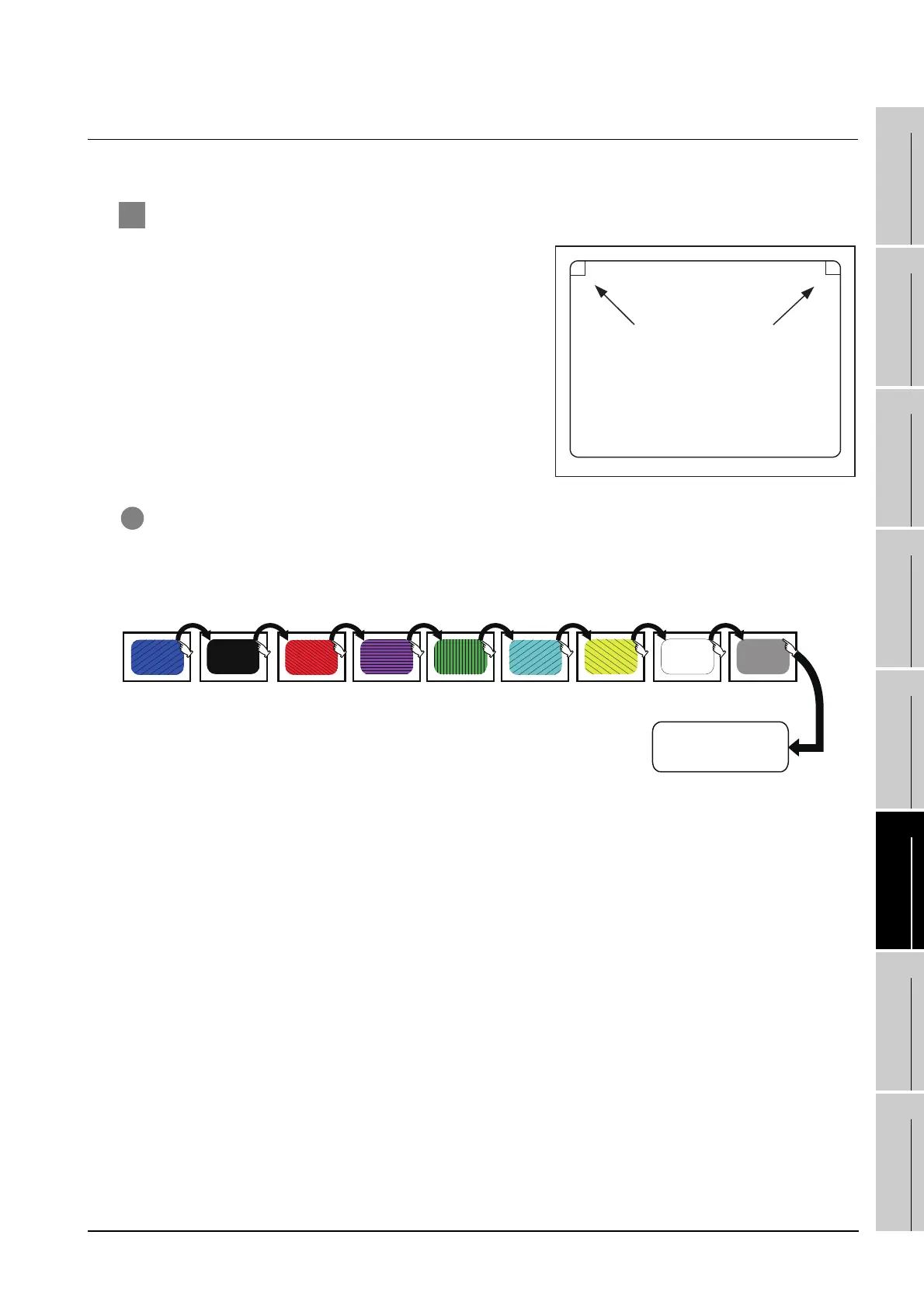

14.4.3 Drawing check operation
The screen for drawing check can be displayed by touching [Drawing check] on the Display check menu.
1 Before execute drawing check
Touching the upper right part of the screen proceeds to
the next check in each step during drawing check.
Touching the upper left part of the screen returns to the
[Display check] screen.
1 Missing bit, Color Check
Each touch of the upper-right part of the screen, the entire screen color changes in the following order:
blue, black, red, purple, green, light blue, yellow, white, and gray.
Check missing bit and color visually.
If touch the upper right part of the screen at the final color (white screen), the following 2) Basic figure
check screen is displayed.
Upper-left touch
position
Upper-right touch
position
Black Red Purple Green Light blue Yellow White Gray Blue
To (b) Basic
figurecheck screen
