9.1 Utility Execution
9 - 1
9
UTILITY FUNCTION
10
COMMUNICATION
INTERFACE
SETTING
11
DISPLAY AND
OPERATION
SETTINGS
12
CLOCK SETTINGS
AND BATTERY
STATUS DISPLAY
13
FILE DISPLAY AND
COPY
14
GOT SELF CHECK
15
CLEANING OF
DISPLAY SECTION
16
MAINTENANCE
TIME NOTIFICATION
SETTING
9. UTILITY FUNCTION
Utility is a function, which carries out connection of GOT and controller, screen display and operation method
settings, program/data control and self-check etc.
Refer to the following for the utility function list.
9.3 Utility Display
9.1 Utility Execution
For utility execution, utility has to be displayed by installing BootOS and standard monitor OS in the C drive
(built in flash memory).

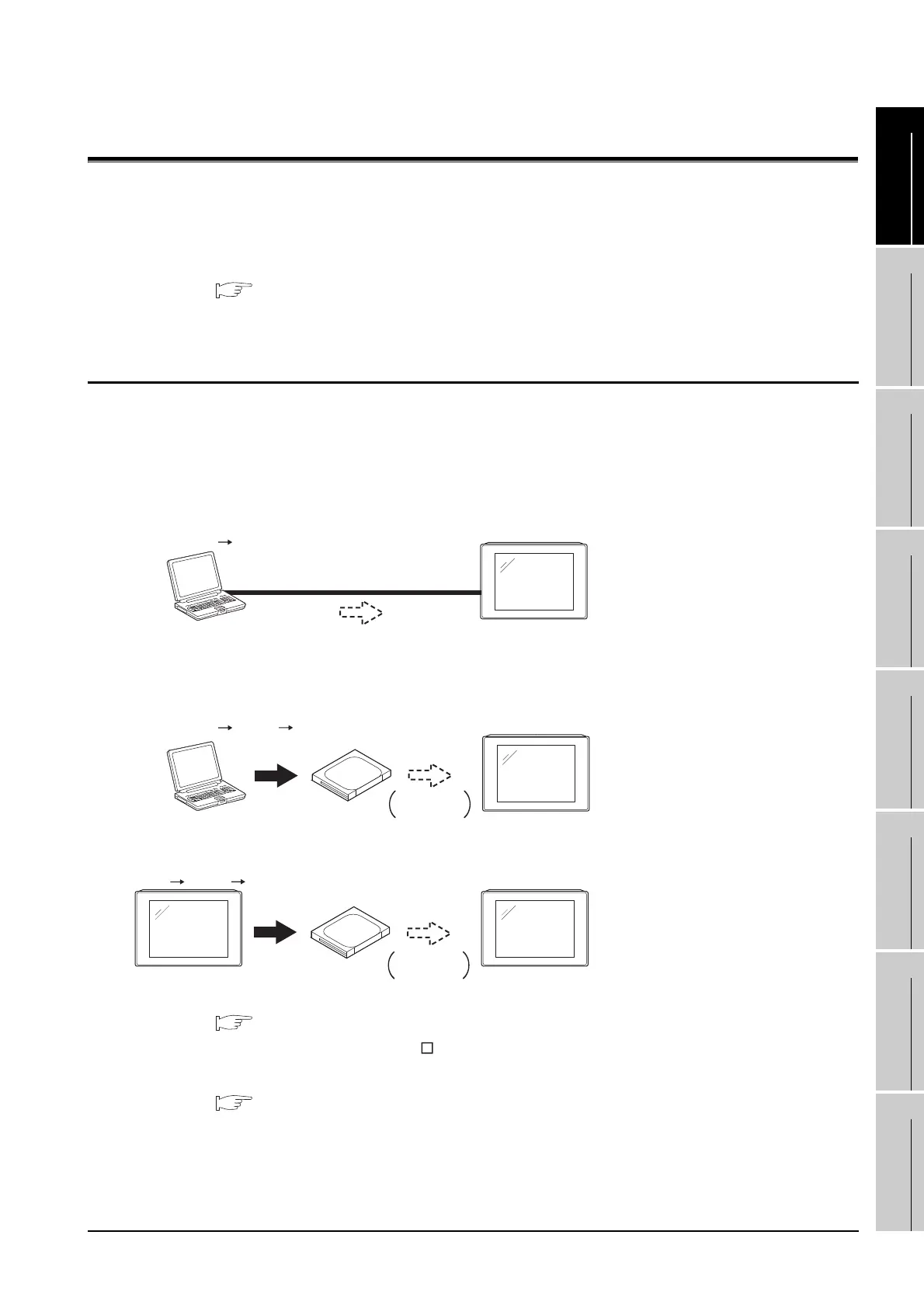

There are following three types for the installing BootOS and standard monitor OS methods.
Refer to the following for the installation which uses GT Designer3 or GT Designer2.
• GT Designer3 Version1 Screen Design Manual (Fundamentals)
• GT Designer2 Version Basic Operation/Data Transfer Manual
Refer to the following for the installation which uses GOT.
18. INSTALLATION OF COREOS, BOOTOS AND STANDARD MONITOR OS
BootOS, standard
monitor OS installation
CF card
GOTGOT
OS file
upload
3) GOT CF card GOT
Install the CF
card in GOT
• Install OS from GOT to GOT using
CF card
Via USB interface or
RS-232 interface
BootOS or standard OS installation
• Installed directly from the GT Designer3
or GT Designer2
BootOS or standard
monitor OS installation
CF card
GT Designer3
or
GT Designer2
GT Designer3
or
GT Designer2
GOT
GOT
OS file
write
GT Designer2 GOT
GT Designer2 CF card GOT
Install the CF
card in GOT
• When GOT is remote, installed easily
using the CF card
GT Designer3
or
GT Designer3
or
1)
2)
To Next Page
