6. Press the wheel or the ENTER button.
o The input cursor returns to the servo number.
o This completes the assignment procedure for one receiver output.
Procedure for erasing an assignment
1. Select the servo.
2. Press the wheel or the ENTER button.
3. Press the REV/CLR button. Pressing the button again restores the
assignment.
4. Press the wheel or the ENTER button.
5.6.3 Monitor
The servo monitor visualises the actuation movement of the servos. It enables you
to detect errors and check the function / operation of cruise controls, gyro systems,
speed controllers, etc.

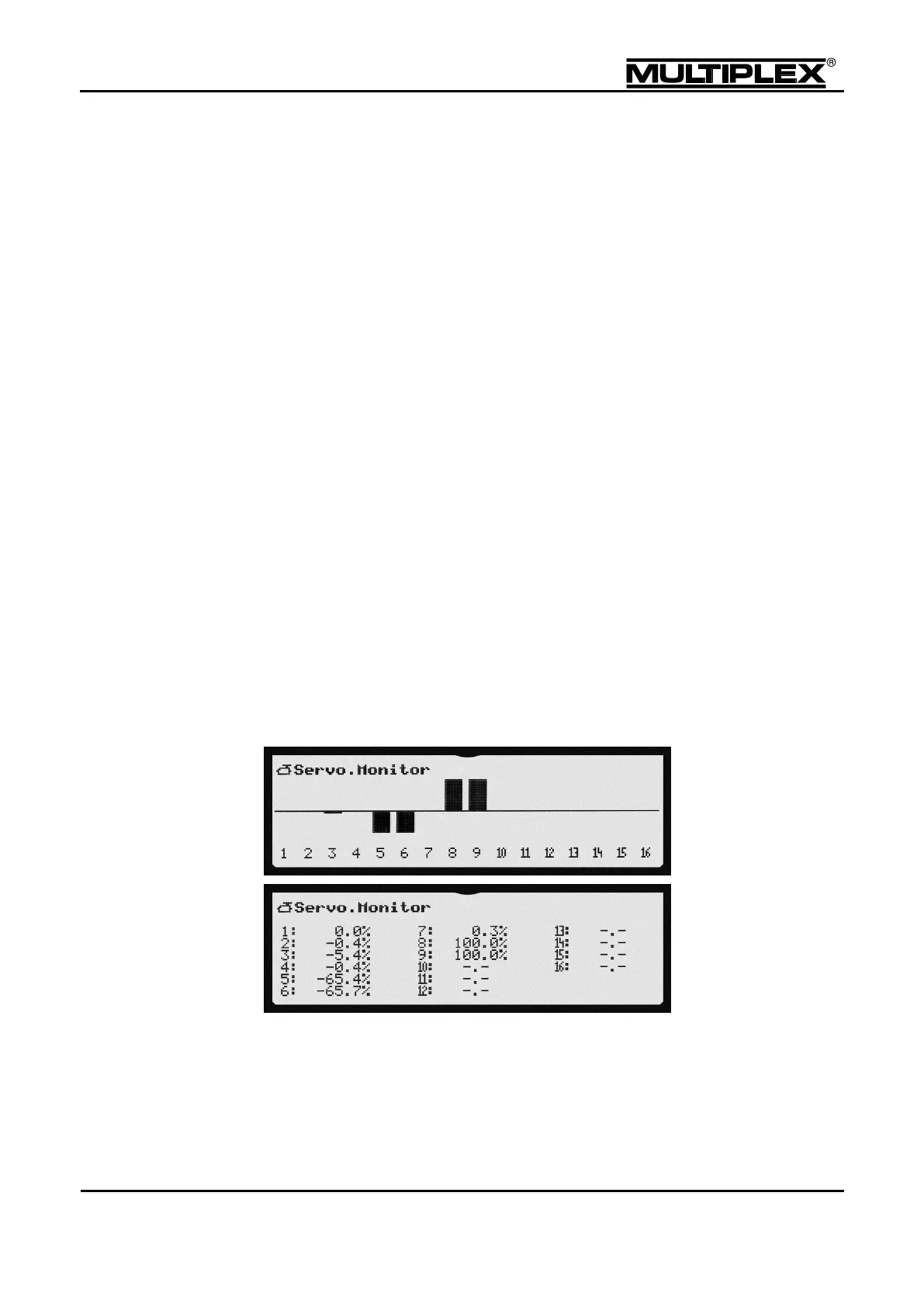

Two screen types are available:
graphic, with a display of output signals in bar-chart form
numerical, with the values stated as percentages
Press the + / – buttons or use the central wheel to toggle between the two screen
types. The figure shows the servo monitor for the PROFI TX16. The display varies
according to the number of available servo channels.
