Multiplex PROFI TX 9 User Manual

Model templates
PROFI TX
Page 77
4.2.5 HELImech. model template
This template is intended for collective pitch-controlled I.C. helicopters with
mechanically mixed rotor head.
Governor mode is switched off in the throttle channel. The Switch-3 control
function was replaced by Mixture for mixture configuration.
Function
1
Aileron
2
Elevator
3
Rudder
4
Collective
5
Throttle

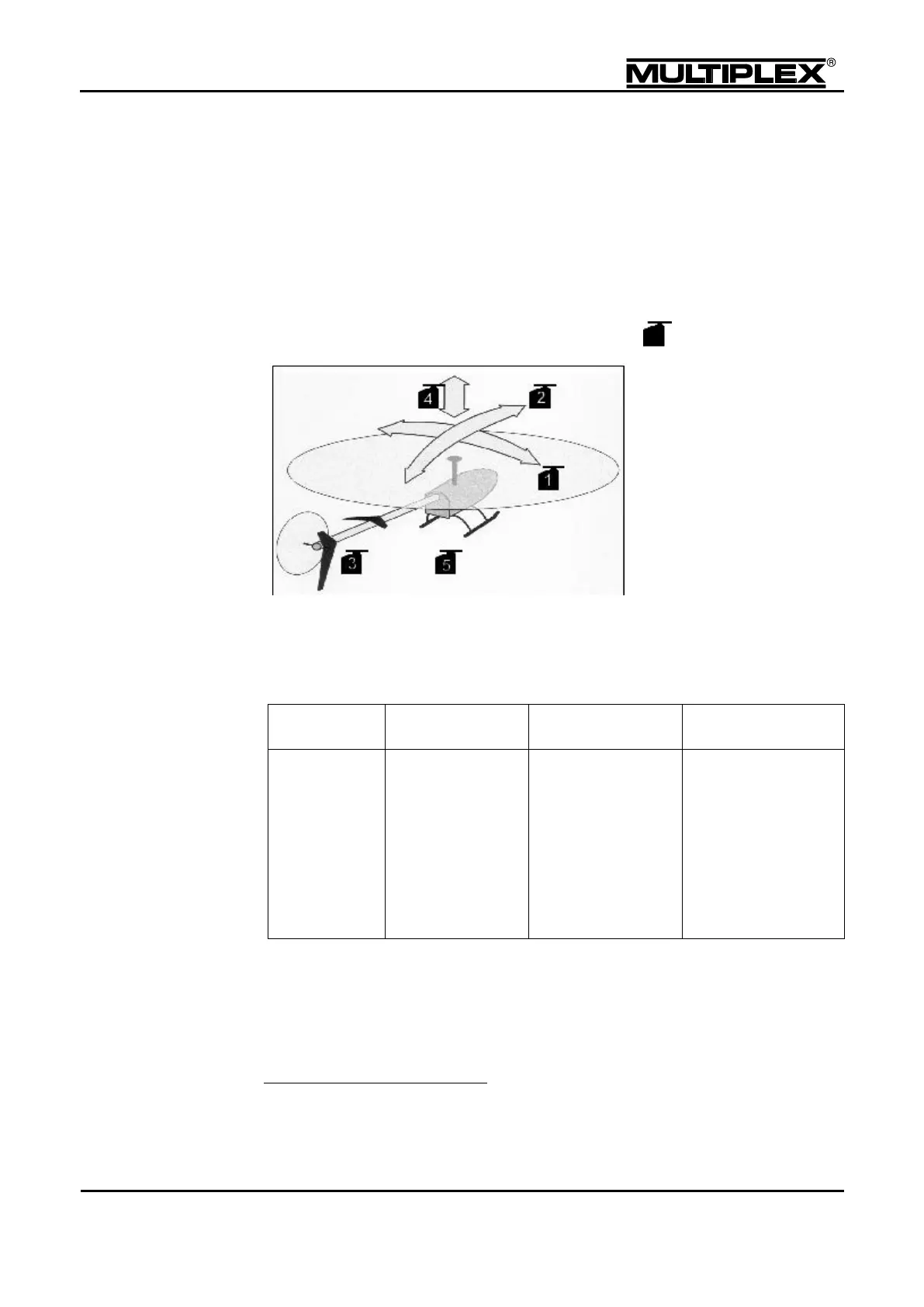

Fig. 16: HELImech. servo assignment
Mixer
Name
Mixer inputs
Settings
Value
TAIL ROTOR
Aileron
1
, Collective
Offset
Coll.+
Coll.-
Zero point
Rudd.Diff.
OFF
OFF
OFF
0%
OFF
If you convert the configured helicopter to electronic mixing, you just need to
rename the Aileron, Elevator, and Collective servos to MAINROTOR-L,
MAINROTOR-R, etc. in the Servo > Assign menu. The main rotor mixer is then
available in the Mixer menu.
1
Collective and Offset are switched off automatically if the gyro operates in
Heading mode.
