PROFI TX
3.1.4 The interior

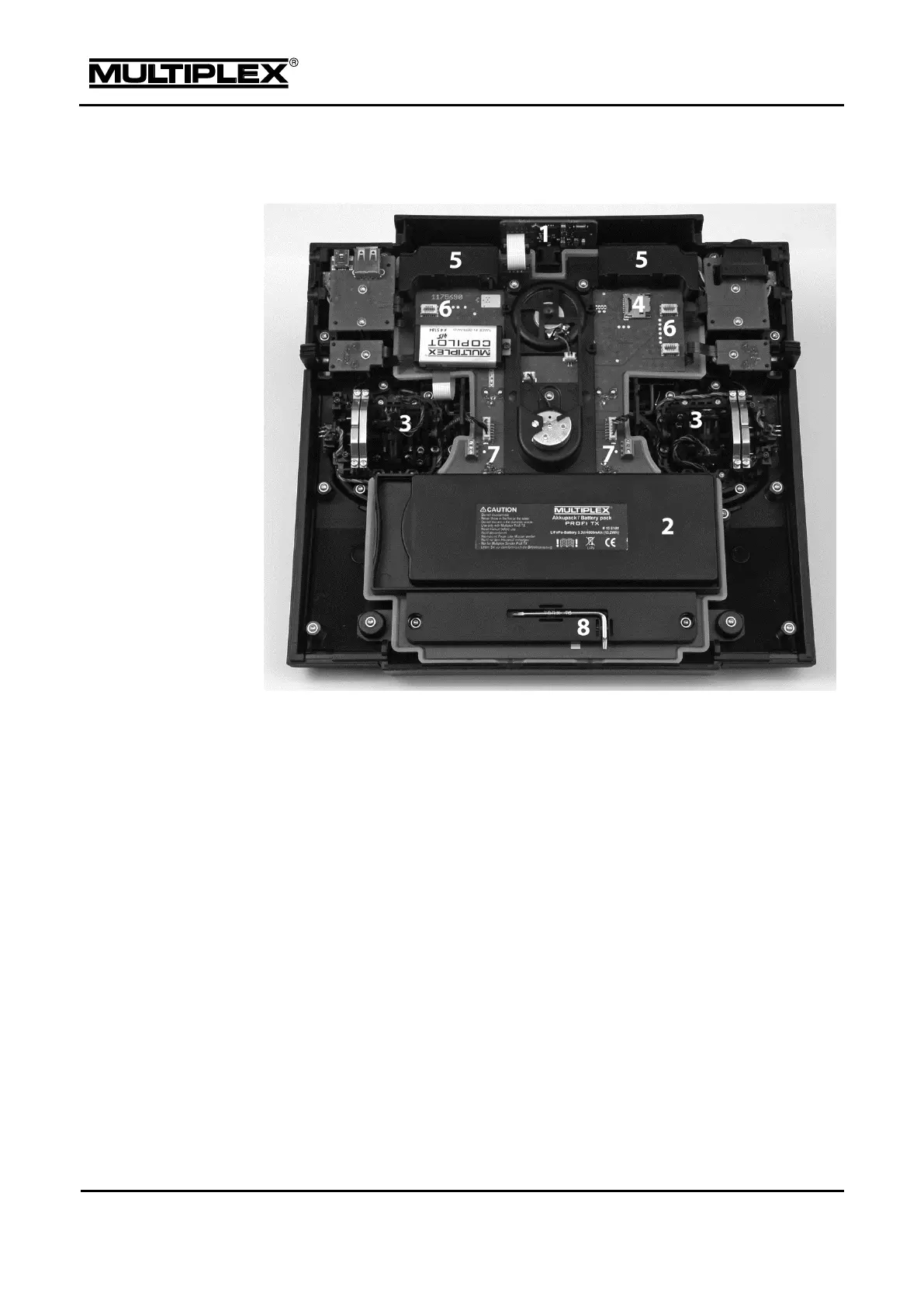

Fig. 3: The interior of the transmitter
1
RF module with IOAT aerial
2
Transmitter battery (see section 3.4 "Transmitter battery" on page 41)
3
Control units
4
microSD card
5
Covers for the sockets for controls installable on the front
6
4 sockets for additional modules (see section 3.3.4 "Installing additional
controls" on page 37)
7
2 clamp terminals for connecting the controls installable on the stick tops
8
TORX screwdriver
