5.6.1 Calibrate
You can use the Calibrate menu to adjust the travels, centre and any
intermediate points for all servos so that they move evenly and run to the end-
points required.
The menu shows a list of all the servos which can be used with your transmitter
type (9, 12, or 16 servos).
The sub-menu is identical for all servos.

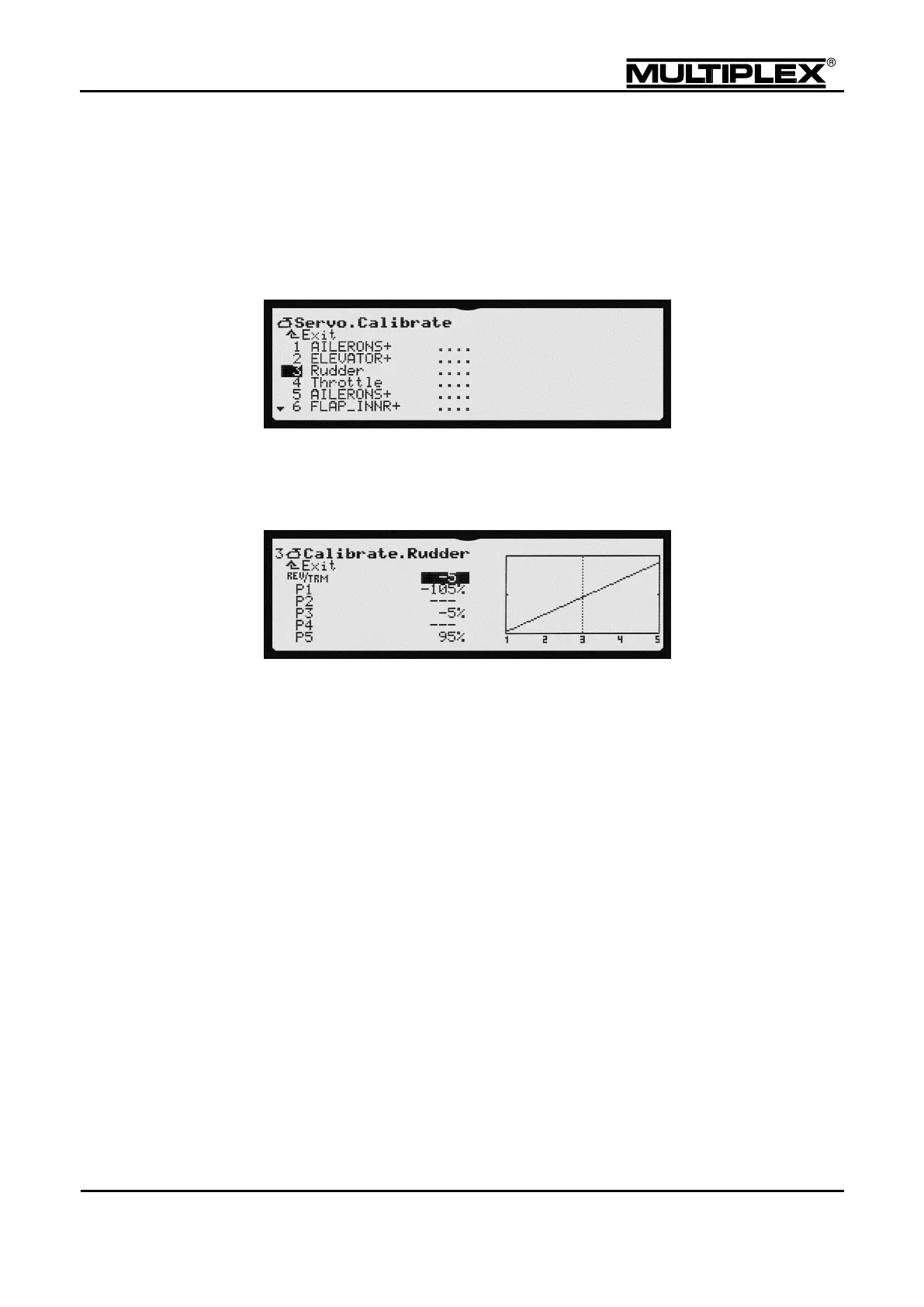

Any parameter changes are immediately reflected in the graph. The channel
number (receiver output) of the selected servo is shown above the graph.
REV/TRM
The REV/TRM parameter has two functions:
o Servo reverse (REV) changes the direction of servo rotation.
To reverse the direction of servo rotation "open" the end-point and
press the REV/CLR button: The entire curve is "reversed" and the
prefixes of all curve points change.
o Servo trim (TRM) shifts all points on the servo curve in parallel. Use
the wheel or the +/- buttons to adjust the trim.
The set trim value results in a parallel shift of the curve. The curve points
are limited to +/- 110%. The shape of the curve remains unchanged until
the limit is reached. The effect is the same as the standard trim
procedure.
