Multiplex PROFI TX 9 User Manual

Model templates
Page 76
PROFI TX
4.2.4 HELIccpm model template
For collective pitch-controlled I.C. helicopters with rotor head for electronic mixing
(Collective Cyclic Pitch Mixer).
Governor mode is switched off in the throttle channel. The Switch-3 control
function was replaced by Mixture for mixture configuration. If you are using a
speed controller, switch on the Governor mode to switch off the throttle curve
(page 118).
Function
1
MAINROTOR-FB
2
MAINROTOR-L.
3
TAIL ROTOR
4
MAINROTOR-FB
5
Throttle

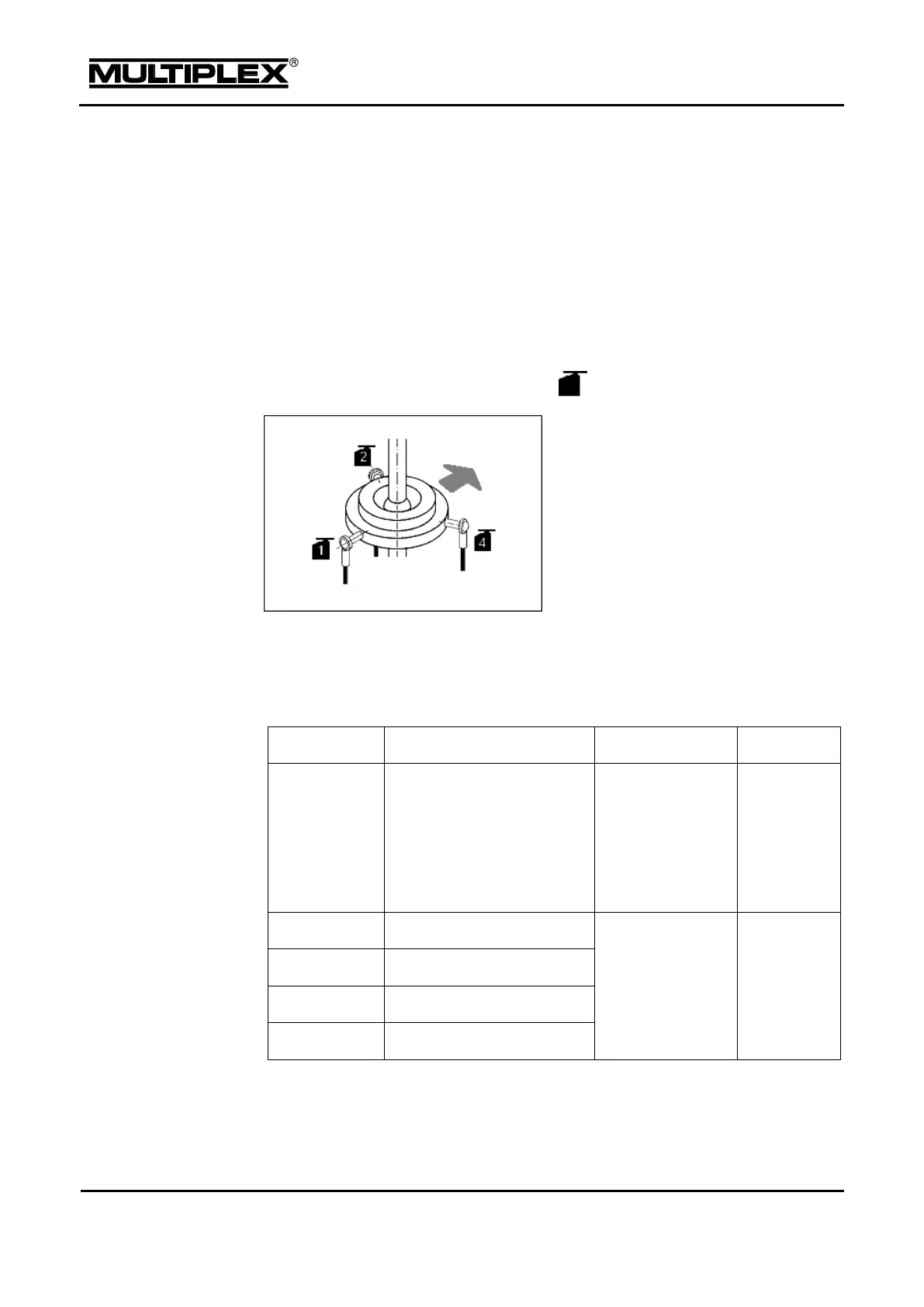

Fig. 15: Servo assignment for electronically
mixed rotor heads
6
Gyro
Mixer
Name
Mixer inputs
Settings
Value
TAIL ROTOR
Aileron, Collective
Collective and Offset are switched
off if the gyro operates in Heading-
hold mode.
Offset
FP4
Coll.+
Coll.-
FP4
Zero point
Rudd.Diff.
FP4
OFF
OFF
OFF
0%
OFF
MAINROTOR-R.
Rudder, Elevator, Collective
Geometry
Rotation
Lever +/-
120%
0°
0%
MAINROTOR-L.
Rudder, Elevator, Collective
MAINROTOR-FB
Rudder, Elevator, Collective
MAINROTOR-4
Rudder, Elevator, Collective
FP4
= 4 flight phases; for helicopters, the fourth flight phase is always AUTOROT
(auto-rotation).
