Nordson 3100V Series Customer Product Manual

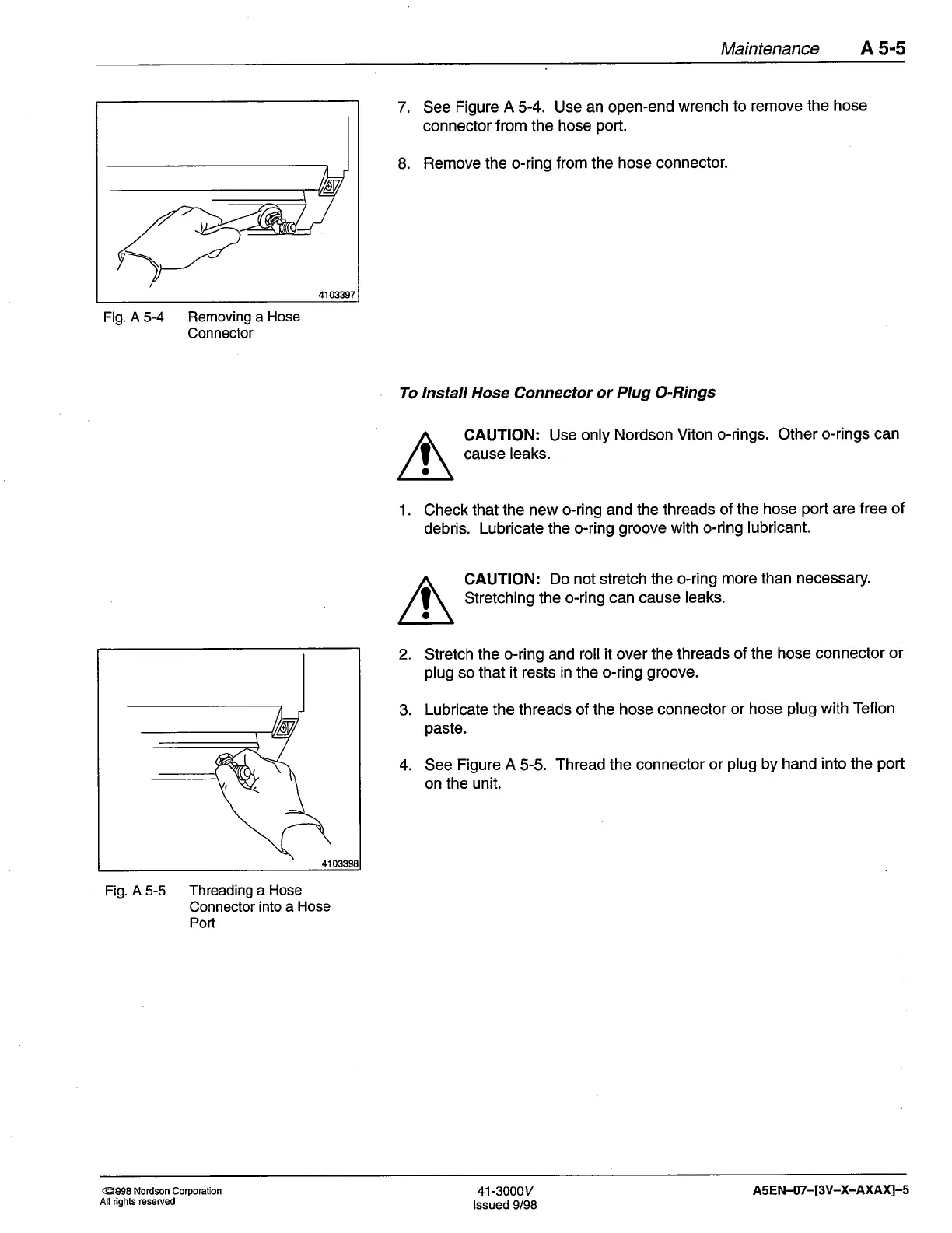

Maintenance A
5-5
4103397
Fig. A 5-4
Removing a
Hose
Connector
4t03398
Fig.
A 5-5 Threading a
Hose
Connector
into a
Hose
Port
7.
See
Figure
A
5-4. Use
an open-end
wrench
to remove
the hose
connector
from the hose
port.
8.
Remove the o-ring from the
hose connector.
To lnstall Hose Connector
or Plug O-Rings
CAUTION: Use
only Nordson
Viton o-rings. Other
o-rings can
cause
leaks.
1.
Check
that the new o-ring and
the threads
of the
hose
port
are
free of
debris.
Lubricate the o-ring
groove
with o-ring
lubricant.
CAUTION:
Do not stretch the
o-ring more
than necessary.
Stretching
the o-ring
can cause
leaks.
2.
Stretch
the o-ring and roll
it
over
the threads
of the hose
connector
or
plug
so that it rests in the o-ring
groove.
3.
Lubricate the threads of the hose
connector
or hose
plug
with Teflon
paste.
4. See
Figure A
5-5.
Thread the connector
or
plug
by hand
into the
port
on
the unit.
@998
Nordson Corporation
All rights reserved
41
-3000y
lssued 9/98
A5EN-07-[3V-X-AXAX]-5
