Nordson 3100V Series Customer Product Manual

Control B
2-37
Operator Panel
Removal
WARNING:
Risk of
equipment damage,
personal
injury
or
death. Disconnect
and lock out electrical
power
to the unit,
including
inpuVoutput
(l/O)
lines.
1. Place
the unit's
POWER switch
in
the
off
position,
disconnect
and
lock
out electrical
power
to the unit
at the branch circuit disconnect
switch,
and disconnect
and lock out electrical
power
supplied through
any l/O wiring.
2.
Open the electrical
enclosure. Refer
to Opening and
Closing the
Electrical Enclosure.
3. Remove
the
power
board. Refer to Power Board
Removalin
Replacing
a
Control
Assembly
Board.
4. Disconnect
the ribbon
cable from XP1 on
the control board.
5. Close the control-end
frame
and
secure
it with the captive screws
6.
See
Figure
B 2-10.
Using a flat-blade screwdriver
and
pliers, pull
the
operator
panel
away from the
control-end frame
and
guide
the
ribbon
cable
through the hole
in the control-end frame.
4130096A

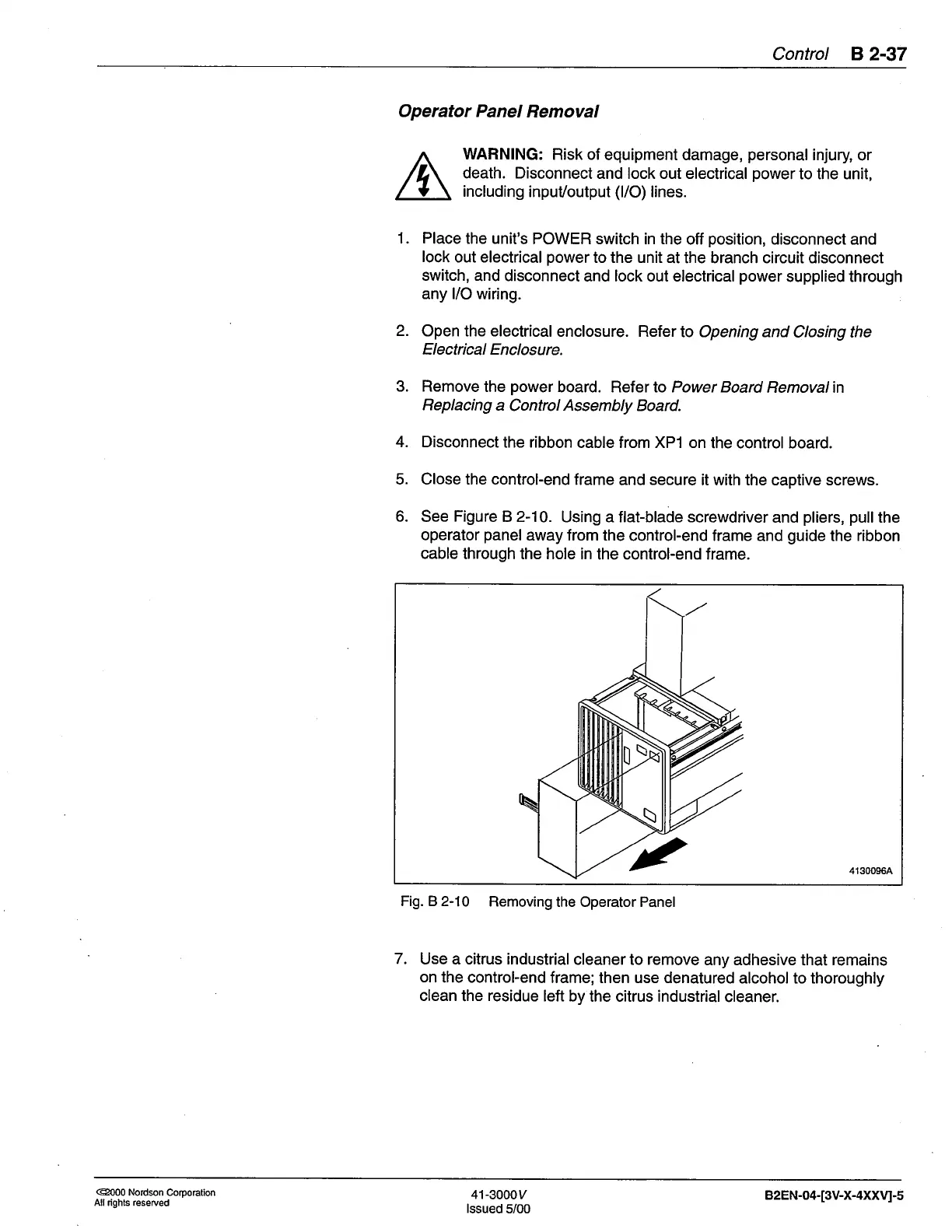

Fig. B 2-10
Removing
the Operator Panel
7.
Use a citrus industrial
cleaner to remove
any adhesive
that
remains
on
the control-end
frame; then use denatured
alcohol to thoroughly
clean
the
residue
left by
the citrus industrial
cleaner.
@000
Nordson Corporation
All rights reserved
41-3000y
lssued
5/00
82EN-04-[3V-X-4XXVI-5
