Nordson 3100V Series Customer Product Manual

A 3-10
lnstallation
lnstalling
Hoses

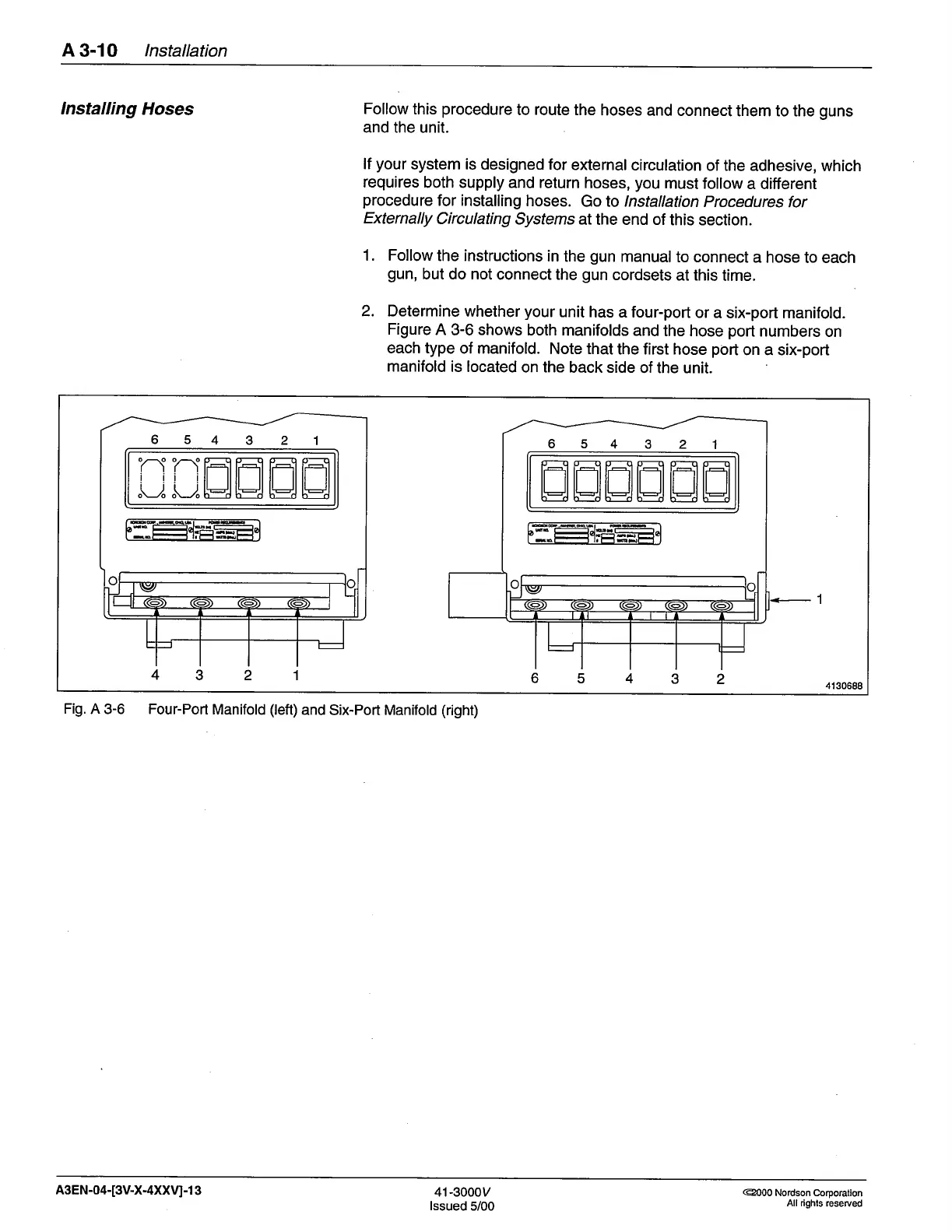

Fig.
A 3-6 Four-Port
Manifold
(left)
and Six-Port Manifotd
(right)
Follow
this
procedure
to
route
the
hoses
and connect
them to the
guns
and the unit.
lf
your
system is
designed for
external
circulation
of the
adhesive, which
requires
both supply
and return hoses,
you
must follow
a different
procedure
for installing
hoses.
Go to lnstallation
Procedures
for
Externally
Circulating
Systems
at the end of
this section.
1. Follow
the instructions
in
the
gun
manual
to connect
a hose
to each
gun,
but do not
connect the
gun
cordsets
at this
time.
2. Determine
whether
your
unit
has a four-poft
or
a six-port manifold.
Figure
A
3-6
shows
both
manifolds
and the hose
port
numbers
on
each type
of manifold.
Note that
the first
hose
port
on a six-port
manifold
is located
on the
back side
of the unit.
654321
H
6s4321
H
o
((o)) (c<
r(G
1
432
1
65432
4130688
A3EN-04-[3V-X-4XXVJ-1
3
41
-3000v
lssued
5/00
q00
Nordson Corporation
All righls
reserved
