Nordson 3100V Series Customer Product Manual

lnstallation
A
3-7

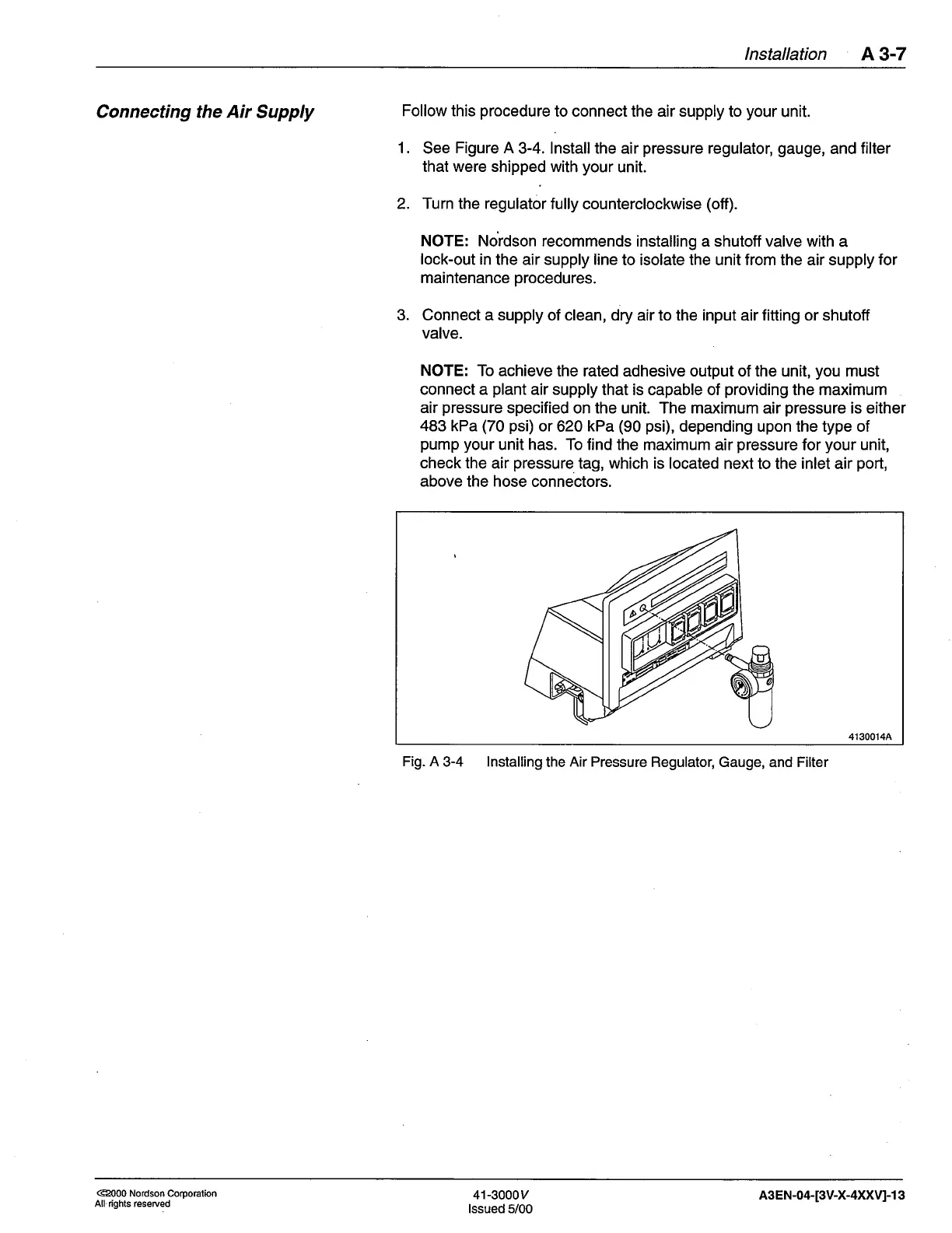

Connecting the Air
Supply
Follow this
procedure
to connect the
air
supply
to
your
unit.
1.
See
Figure A
3-4. lnstall the
air
pressure
regulator,
gauge,
and
filter
that were shipped with
your
unit.
2. Turn the regulator
fully counterclockwise
(off).
NOTE: Noidson
recommends installing a shutoff valve with
a
lock-out
in the air supply line
to isolate the unit from the air supply
for
maintenance
procedures.
3. Connect a supply
of clean, dry air to the input
air
fitting or shutoff
valve.
NOTE: To achieve
the rated adhesive output of the unit,
you
must
connect a
plant
air
supply
that is capable of
providing
the maximum
air
pressure
specified on the unit. The maximum
air
pressure
is either
483 kPa
(70
psi)
or 620
kPa
(90
psi),
depending upon the type of
pump
your
unit has. To find the
maximum air
pressure
for
your
unit,
check
the air
pressure
tag, which is located
next to the inlet air
port,
above
the hose connectors.
4130014A
Fig.
A 3-4 Installing
the
Air Pressure
Regulator, Gauge,
and
Filter
e000 Nordson Corporation
All rights reserved
41-3000v
lssued 5/00
A3EN-04-[3V-X-4XXVj-1 3
