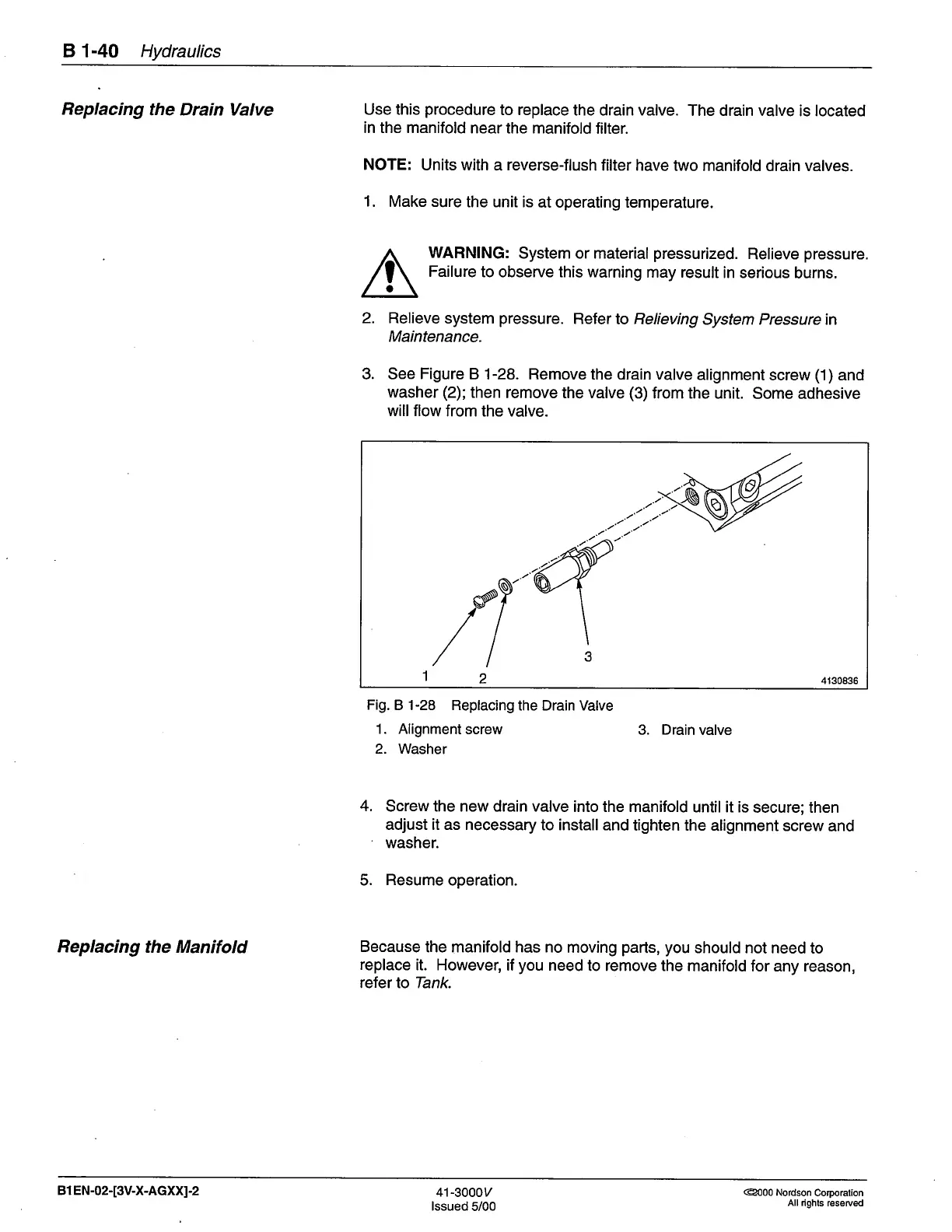

Nordson 3100V Series Customer Product Manual

B 1-40
Hydraulics
Replacing
the Drain Valve
Replacing
the Manifold
Fig.
B 1-28 Replacing
the Drain Valve
1. Alignment
screw
2. Washer
Use this
procedure
to replace
the drain valve.
The drain valve
is located
in the manifold
near the manifold
filter.
NOTE:
Units with
a
reverse-flush
filter
have two manifold
drain valves
1.
Make sure
the unit is
at operating temperature
WARNING:
System or material
pressurized.
Relieve
pressure
Failure
to observe this warning
may result
in serious
burns.
2. Relieve
system
pressure.
Refer
to Relieving
System Pressurein
Maintenance.
3. See
Figure
B 1-28. Remove
the drain valve
alignment
screw
(1)
and
washer
(2);
then
remove the valve
(3)
from the
unit.
Some
adhesive
willflow
from the valve.
3
1
2 4130836
3.
Drain
valve
4.
Screw the new drain valve
into the manifold
until it is
secure; then
adjust it as necessary
to install
and tighten the
alignment screw
and
washer.
5.
Resume
operation
Because
the manifold has no
moving
parts,
you
should not
need to
replace
it. However,
if
you
need
to remove the
manifold for any reason,
refer lo Tank.
B1 EN-02-[3V-X-AGXX]-2
41
-3000v
lssued
5/00
e000 Nordson
Corporation
All rights
reserved
