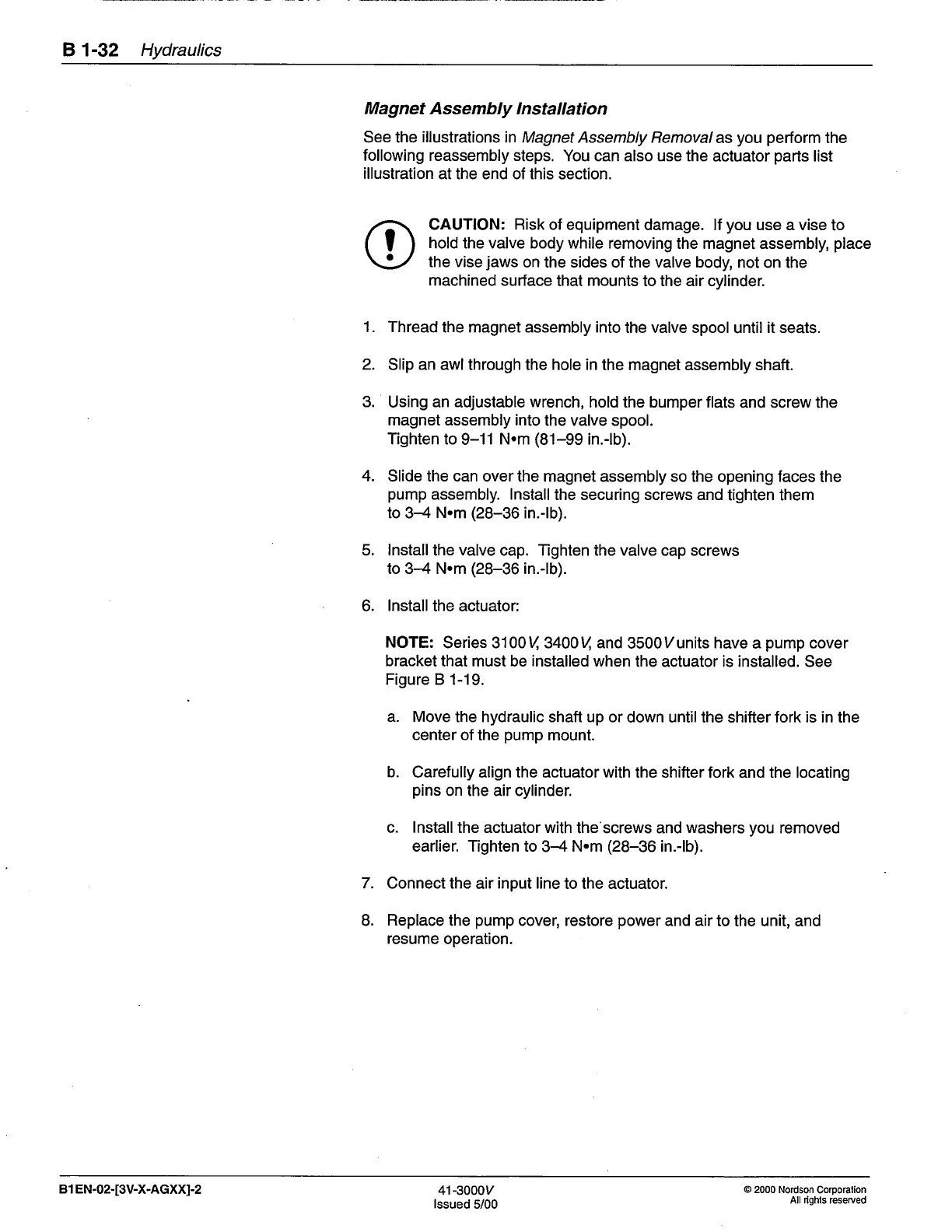

B 1-32
Hydraulics
Magnet
Assembly lnstallation
See the
illustrations
in Magnet Assembly Removalas
you perform
the
following reassembly steps.
You can also use the
actuator
parts
list
illustration
at the end of this section.
CAUTION: Risk of equipment
damage. lf
you
use a vise
to
hold the valve body while removing
the magnet
assembly,
place
the vise
jaws
on the sides of the valve body,
not on the
machined surface
that
mounts
to the air cylinder.
1. Thread
the magnet assembly into
the valve spool
until
it seats
2.
Slip an awlthrough the hole in
the magnet assembly shaft.
3.
Using an adjustable
wrench,
hold the
bumper
flats
and screw the
magnet assembly into
the valve spool.
Tighten to
9-11
N.m
(81-99
in.-lb).
4.
Slide
the can
over the magnet assembly so the
opening
faces
the
pump
assembly. lnstallthe
securing screws and
tighten them
to 3-4 N.m
(28-36
in.-lb).
5.
lnstallthe valve
cap. Tighten the valve
cap
screws
to 3-4 N.m
(28-36
in.-lb).
6.
lnstallthe
actuator:
NOTE:
Series 3100t1 3400t4 and
3500Vunits
have
a
pump
cover
bracket
that must be installed when
the actuator is installed. See
Figure B 1-19.
a.
Move
the hydraulic shaft up or
down until the shifter fork is in the
center of
the
pump
mount.
b. Carefully align the actuator with
the shifter fork and the locating
pins
on the air cylinder.
c. lnstall the actuator with
the'screws and
washers
you
removed
earlier. Tighten to
3-4
N.m
(28-36
in.-lb).
7. Connect the
air
input line
to the actuator.
8.
Replace
the
pump
cover, restore
power
and air
to the unit, and
resume
operation.
I
a
B't EN-02-[3V-X-AGXX]-2
41-3000y
lssued
5/00
@
2000 Nordson
Corporation
All righls reserved
