Nordson 3100V Series Customer Product Manual

A 2-16
Description
System Controls Area

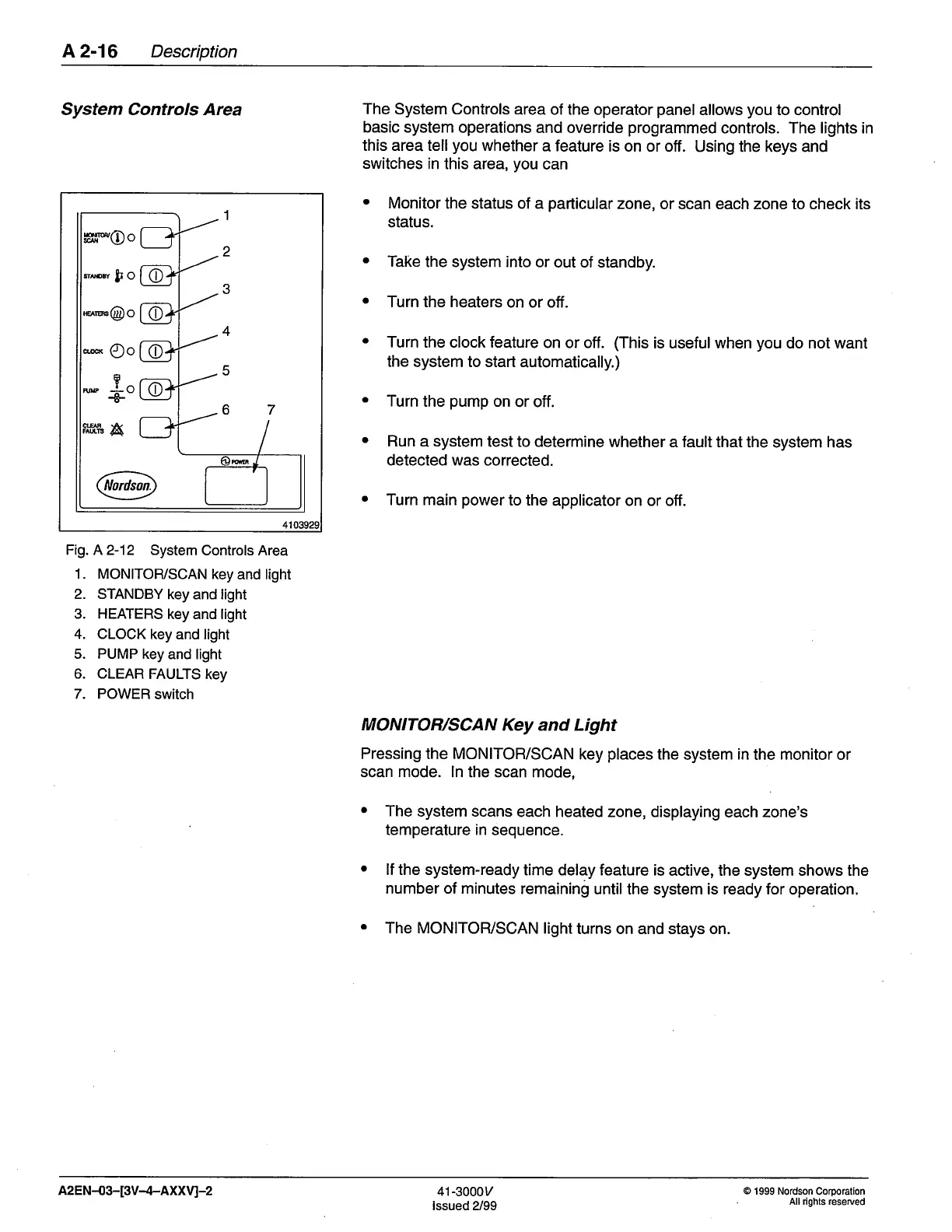

Fig. A2-12 System
Controls Area
1. MONITOF/SCAN
key
and light
2. STANDBY
key and light
3. HEATERS
key and light
4. CLOCK
key and light
5. PUMP key
and light
6. CLEAR
FAULTS
key
7. POWER
switch
a
a
The
System Controls
area of the operator
panel
allows
you
to control
basic
system operations
and override
programmed
controls. The lights in
this area tell
you
whether
a
feature
is on or off.
Using the keys and
switches
in this area,
you
can
Monitor
the status of
a
particular
zone,
or scan each zone to check its
status.
Take
the system into or
out of standby.
Turn the heaters
on or off.
Turn
the clock feature
on or off.
(This
is useful when
you
do not want
the system to start
automatically.)
Turn
the
pump
on
or off.
Run
a
system
test to determine
whether a fault that
the system has
detected was corrected.
Turn main
power
to the
applicator on or off
MONITOR/SCAN
Key and Light
Pressing
the MONITOR/SCAN
key
places
the system
in
the monitor or
scan mode. ln the scan mode,
The
system scans
each heated zone, displaying
each zone's
temperature in
sequence.
lf the system-ready
time delay feature is
active, the system shows the
number of minutes
remainin!
until the system is ready for
operation.
The MONITOR/SCAN
light
turns on and stays on.
a
a
a
a
a
a
a
1
2
3
4
5
t
7
41
o
o
!o
Oo
ffiA
@
e
+o
A2EN-03-[3V-4-AXXVI-2
41
-3000v
lssued 2/99
@
1999 Nordson
Corporation
All rights reserved
