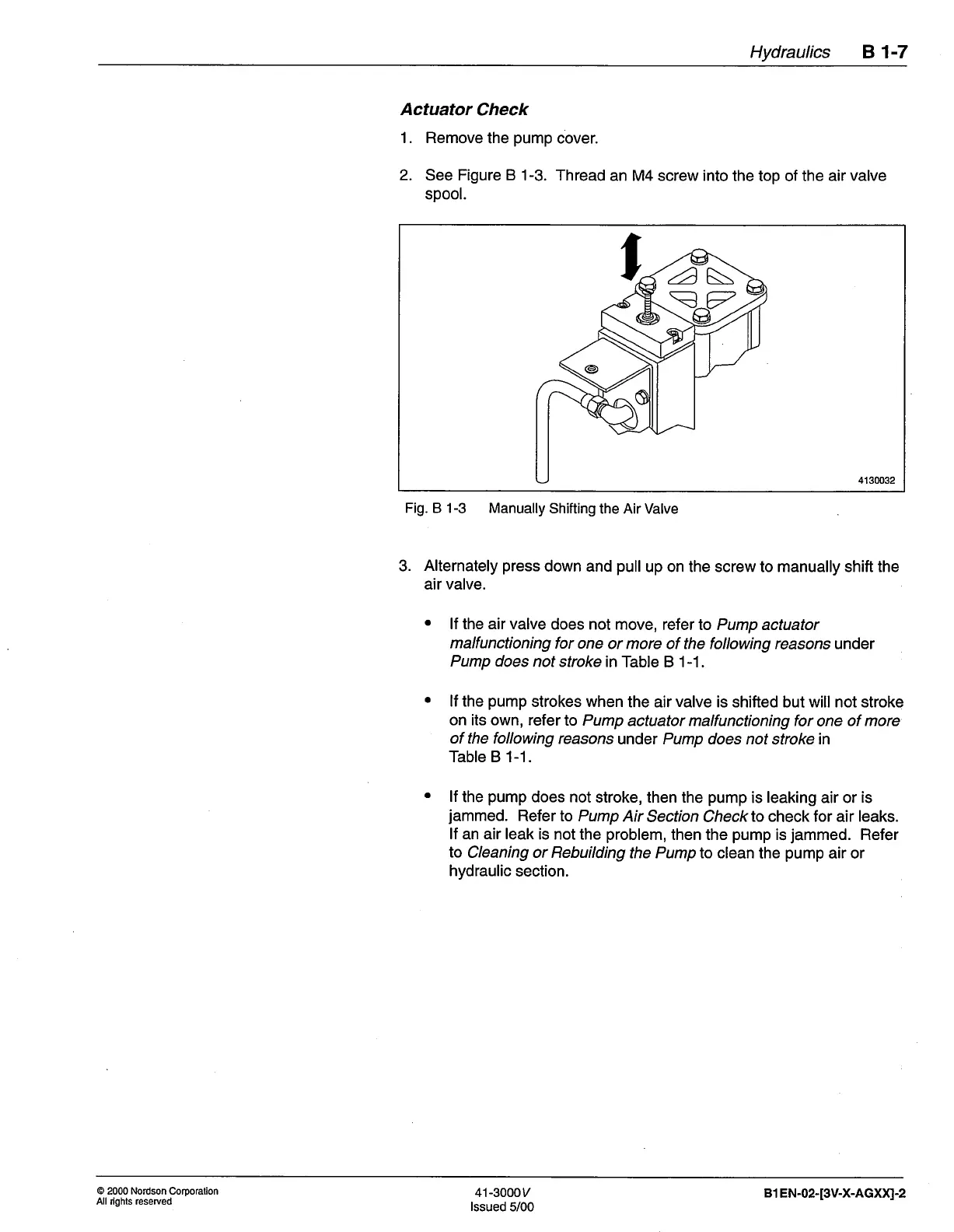

Hydraulics
B 1-7
Actuator
Check
1. Remove
the
pump
cover
2.
See Figure
B
1-3. Thread
an M4 screw into
the top of the air
valve
spool.
4130032
Fig. B 1-3 Manually
Shifting
the Air Valve
3.
Alternately
press
down and
pull
up on the screw to manually shift the
air valve.
lf the air valve
does not move,
refer to Pump actuator
malfunctioning
for one
or more of the following reasons under
Pump does
not stroke in
Table B 1-1 .
lf the
pump
strokes when
the air
valve
is shifted but will not stroke
on its own, refer
to Pump
actuator malfunctioning for
one
of more
of
the
following
reasons
under Pump does not
strokein
Table B 1-1.
lf
the
pump
does not
stroke, then the
pump
is
leaking
air or
is
jammed.
Refer to Pump
Air
Section Checklo
check for
air
leaks.
lf
an air
leak
is not the
problem,
then the
pump
is
jammed.
Refer
to
Cleaning or Rebuilding
the Pump to clean
the
pump
air or
hydraulic
section.
a
a
a
@
2000 Nordson Corporation
All
,ights reserued
4'l-3000y
lssued
5/00
81
EN-02-[3V-X-AGXXJ-2
