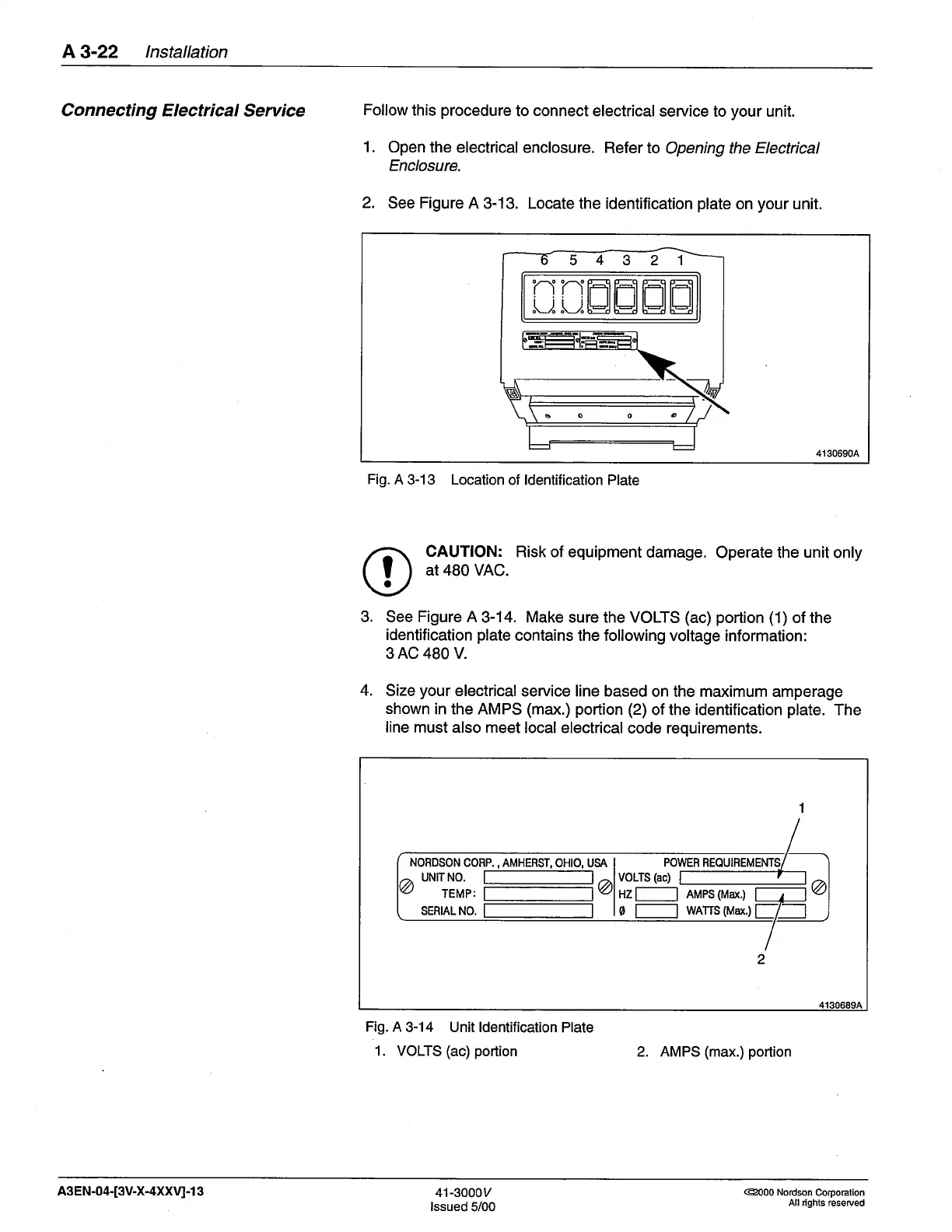

Nordson 3100V Series Customer Product Manual

A3-22
lnstallation
Connecting Electrical
Seruice
Follow
this
procedure
to
connect
electrical
service to
your
unit.
1.
Open the
electrical enclosure.
Refer to
Opening the
Electrical
Enclosure.
2.
See Figure
A 3-13. Locate
the identification
plate
on
your
unit.
54321
Ci]"HHHH
o
o
41306904
Fig.
A 3-13 Location
of ldentification Plate
CAUTION:
Risk of equipment
damage.
Operate the
unit
only
at 480 VAC.
3. See Figure A
3-14. Make sure the VOTTS
(ac)
portion
(1)
of the
identification
plate
contains the following voltage
information:
3AC 480 V.
4.
Size
your
electrical
service line based
on the maximum amperage
shown
in the AMPS
(max.) portion
(2)
of the identification
plate.
The
line
must
also
meet
local electrical
code requirements.
@
TEMP:
NORDSON
CORP.
,
AMHERST,
OHIO,
UNIT NO.
SERIAL NO.
POWER REOUI
VOLTS
(ac)
HZ
o
AMPS
(Max.)
WATIS
(Max.)
1
2
alenARqa
Fig. A
3-14 Unit ldentification Plate
1. VOLTS
(ac)
portion
2. AMPS
(max.) portion
I
A3 EN-04-[3V-X-4XXVI-l
3
41-3000y
lssued
5/00
@000
Nordson Corporalion
All rlghts reserved
