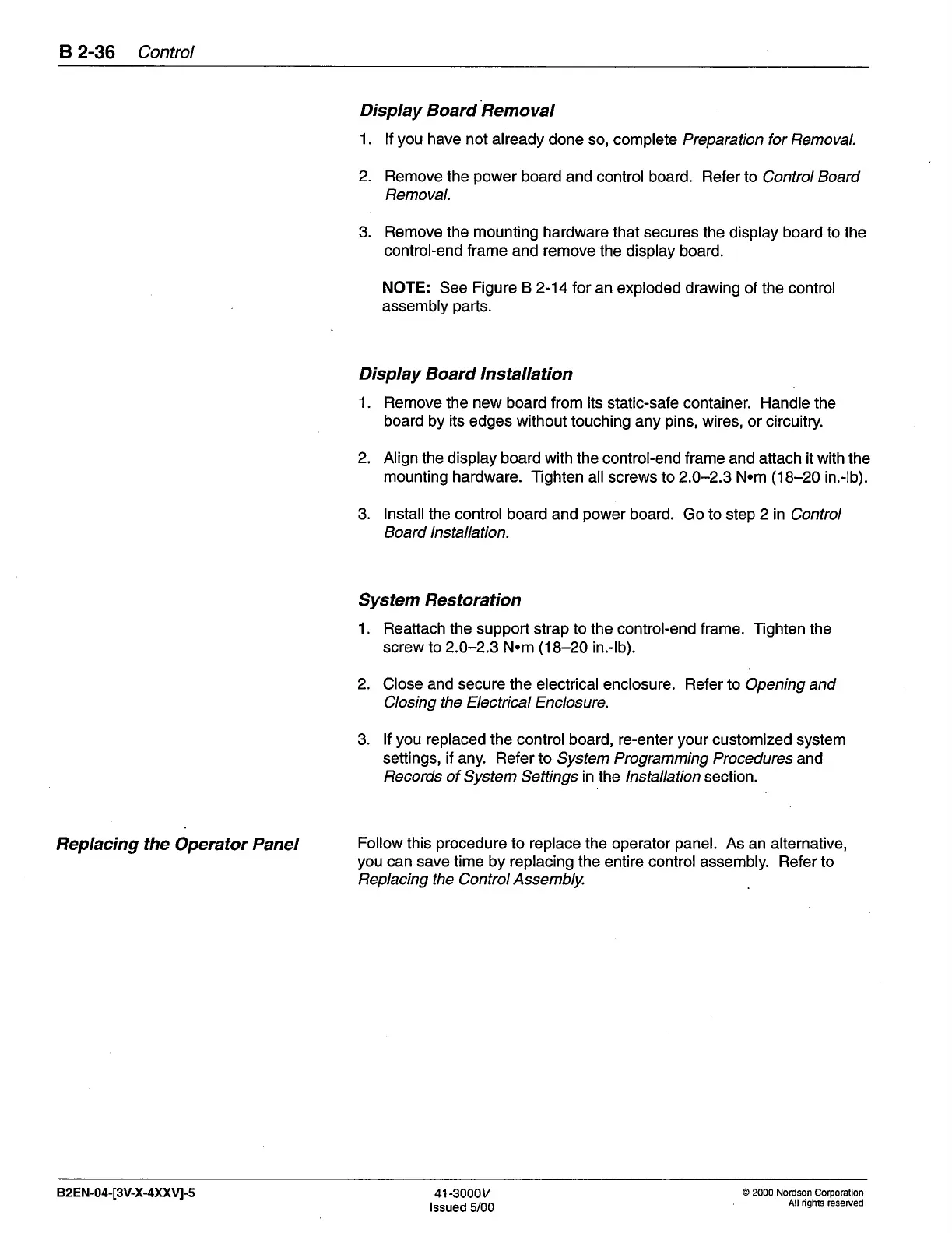

B 2-36
Control
Replacing the
Operator
Panel
Display
Board Removal
1. lf
you
have not already
done so, complete Preparation for Removal.
2.
Remove the
power
board
and control board. Refer to
Control
Board
Removal.
3.
Remove
the
mounting
hardware that secures
the display
board
to the
control-end frame
and
remove
the display board.
NOTE:
See
Figure B
2-14 for an
exploded
drawing
of the control
assembly
parts.
Display Board lnstal lation
1.
Bemove the new board from its
static-safe container. Handle the
board by
its
edges without touching any
pins,
wires,
or circuitry.
2.
Align the display board with the
control-end frame and attach it with the
mounting hardware. Tighten
allscrews 1o2.0-2.3 N.m
(18-20
in.-lb).
3.
lnstall
the control board and
power
board.
Go to step
2in
Control
Board lnstallation.
System
Restoration
1. Reattach the support strap to
the control-end frame. Tighten the
screw lo2.0-2.3 N.m
(18-20
in.-lb).
2.
Close and
secure
the electrical enclosure. Refer to
Opening
and
Closing
the Electrical Enclosure.
3.
lf
you
replaced
the control board, re-enter
your
customized
system
settings, if any. Refer to
Sysfem
Programming Procedures
and
Records
of System Seftings in lhe lnstallafion section.
Follow
this
procedure
to replace the operator
panel.
As
an alternative,
you
can save time by replacing the
entire control assembly. Refer to
Replacing the Control Assembly.
82EN-04-[3V-X-4XXVj-5
41-3000v
lssued
5/00
@
2000 Nordson Corporatlon
All rights reserved
