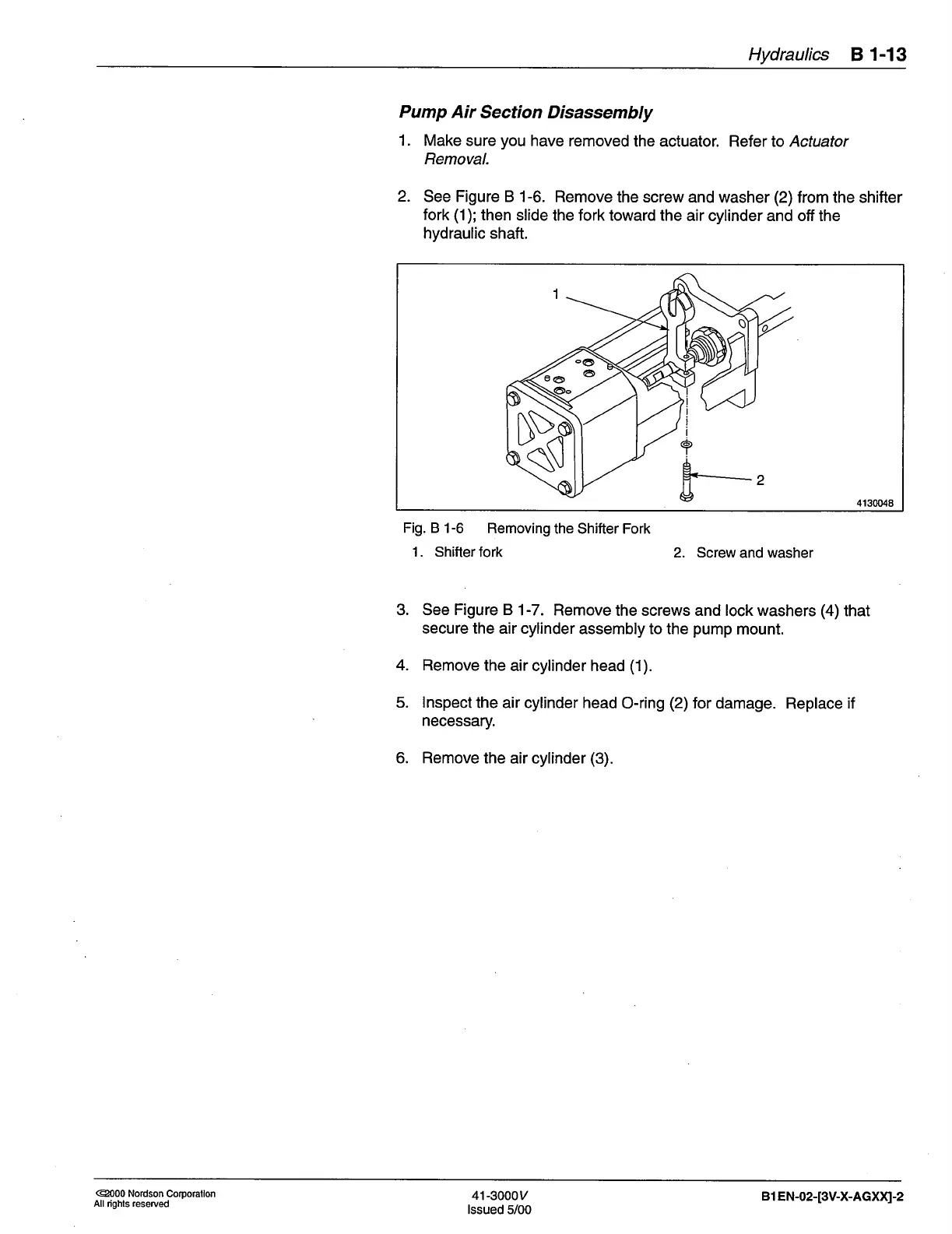

Nordson 3100V Series Customer Product Manual

Hydraulics
B
1-13
Pump Air
Section Disassembly
1. Make sure
you
have
removed
the actuator. Refer to Actuator
Removal.
2.
See Figure B 1-6. Remove
the screw
and washer
(2)
from the shifter
fork
(1);
then
slide the fork toward the
air cylinder and off the
hydraulic shaft.
ee)
o6
6
1
2
4130048
Fig. B 1-6
Removing
the Shlfter Fork
1. Shifter
fork
3. See
Figure B
1-7. Remove
the screws and lock washers
(4)
that
secure the air cylinder
assembly to
the
pump
mount.
4. Remove
the
air cylinder head
(1).
5. lnspect
the air cylinder head
O-ring
(2)
for damage.
Replace
if
necessary.
6.
Remove
the air cylinder
(3)
2. Screwand washer
@000 Nordson
Corporallon
All
rights
reserved
41-3000y
lssued 5/00
81
EN-02-[3V-X-AGXXI-2
