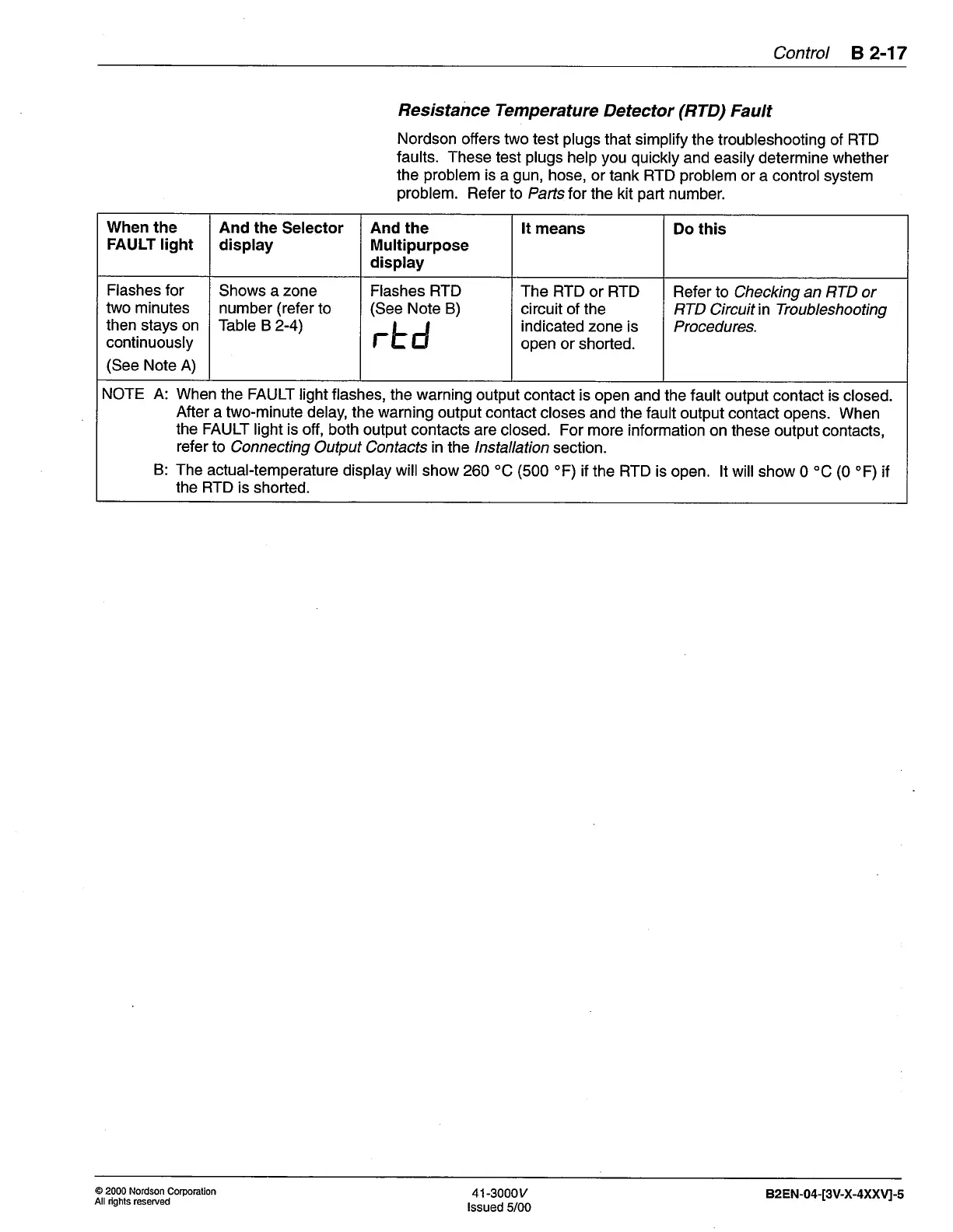

Control
B 2-17
Resistance
Temperature
Detector
(RTD)
Fault
Nordson
offers two test
plugs
that simplify
the troubleshooting of RTD
faults. These
test
plugs
help
you quickly
and easily determine whether
the
problem
is
a
gun,
hose,
or tank RTD
problem
or
a control system
problem.
Refer
to
Partstor
the kit
part
number.
When
the
FAULT light
And
the
Selector
display
And the
Multipurpose
display
It
means
Do this
Flashes for
two minutes
then stays on
continuously
(See
Note A)
Shows a
zone
number
(refer
to
Table B 2-4)
Flashes RTD
(See
Note B)
rLd
The RTD
or RTD
circuit of the
indicated zone
is
open or shorted.
Refer
to Checking an RTD or
RT D
Ci
rcu it
in
Trou
b I e shooti ng
Procedures.
NOTE A:
When the FAULT
light flashes,
the
warning
output
contact is open
and the fault output contact is
closed.
After
a two-minute delay,
the warning output contact
closes
and the fault output contact
opens. When
the FAULT
light is off,
both output contacts are
closed. For more
information on
these output contacts,
refer
to Connecting
Output Contacts in lhe lnstallafion
section.
B:
The actual-temperature
display will
show 260
'C
(500
'F)
if
the RTD is open
the RTD
is shorted.
It will
show 0
'C
(0
'F)
if
@
