Nordson 3100V Series Customer Product Manual

Control
B 2-11

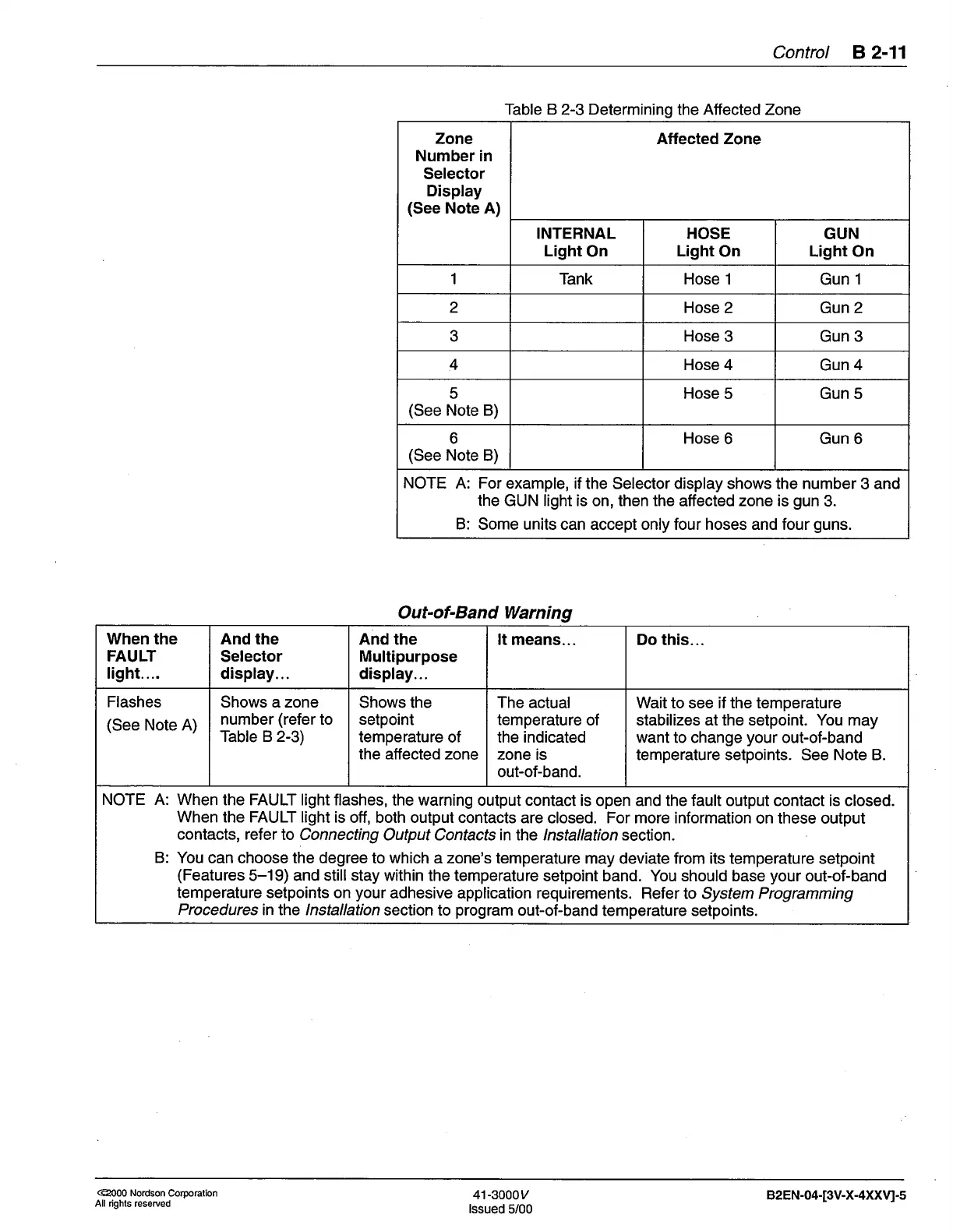

Table B
2-3
Determining
the Affected Zone
Zone
Number in
Selector
Display
(See
Note A)
Affected Zone
INTERNAL
Light
On
HOSE
Light
On
GUN
Light On
1 Tank Hose 1
Gun
1
2 Hose 2
Gun
2
J
Hose
3 Gun 3
4
Hose 4
Gun
4
5
(See
Note B)
Hose
5 Gun 5
6
(See
Note
B)
Hose
6 Gun 6
NOTE
A: For example,
if the Selector display shows the number
3
and
the GUN light is on, then the
affected
zone is
gun
3.
B:
Some units can accept only four hoses and four
guns.
Out-of-Band Warning
When the
FAULT
!ight....
And the
Setector
display..
And the
Multipurpose
display...
It means... Do this
Flashes
(See
Note A)
Shows a zone
number
(refer
to
Table B 2-3)
Shows the
setpoint
temperature
of
the affected zone
The actual
temperature
of
the indicated
zone is
out-of-band.
Wait to see if the temperature
stabilizes at the setpoint. You may
want
to change
your
out-of-band
temperature setpoints. See Note B.
NOTE A: When
the FAULT light flashes,
the warning output contact
is open and the fault output contact is closed.
When the FAULT light
is off, both output
contacts are closed. For more information
on these output
contacts, refer
to Connecting
Output Contactsinlhe lnstallatrbn section.
B:
You can choose the degree
to
which
a zone's temperature
may deviate from its temperature setpoint
(Features
5-19) and still stay within the temperature
setpoint band. You should base
your
out-of-band
temperature setpoints on
your
adhesive application
requirements. Refer to Sysfem Programming
Procedures
in the lnstallation
section to
program
out-of-band
temperature setpoints.
eO00 Nordson Corporation
All rights
reserued
41-3000v
lssued
5/00
82EN-04-[3V-X-4XXVj-s
