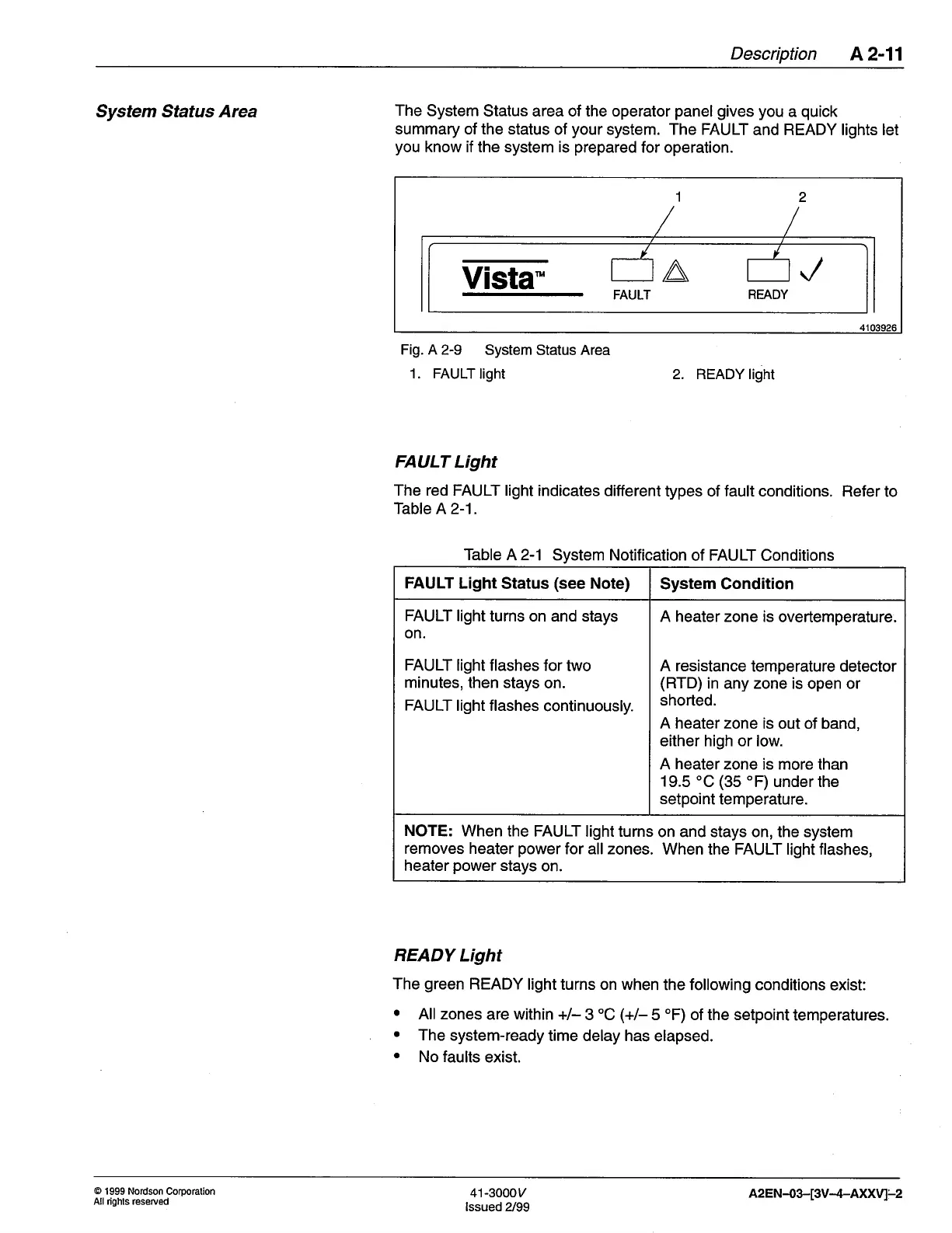

Nordson 3100V Series Customer Product Manual

Description
A2-11
System Status Area
The
System
Status area of the operator
panel gives you
a
quick
summary of the status
of
your
system. The FAULT
and READY lights let
you
know if the system is
prepared
for operation.
Fig. A
2-9 System
Status
Area
1. FAULT
light
2. READY light
FAULT
Light
The red FAULT light
indicates different
types of fault conditions. Refer
to
Table A 2-1.
Table
A
2-1
System Notification
of FAULT
Conditions
READY Light
The
green
READY
light turns on when
the following conditions
exist:
.
All zones
are within +/-
3
'C
(+/-
5
'F)
of the setpoint
temperatures.
.
The
system-ready
time delay has
elapsed.
.
No faults exist.
Vista*
FAULT
A
J
READY
1
2
alnaorA
FAULT
Light
Status
(see
Note)
System Condition
FAULT light
turns on and stays
on
FAULT
light flashes for
two
minutes, then stays
on.
FAU[T
light flashes
continuously.
A heater zone is
overtemperature.
A resistance
temperature detector
(RTD)
in any zone is
open
or
shorted.
A heater zone
is out of band,
either high or low.
A
heater
zone is more
than
19.5'C
(35
"F)
underthe
setpoint
temperature.
NOTE:
When the
FAULT light turns
on and stays on, the system
removes heater
power
for all zones.
When the FAULT light flashes,
heater
power
stays
on.
@
1999 Nordson
Corporation
All righls reserved
41-3000y
lssued 2/99
A2 E N-03-[3V-4-AXXV1-2
