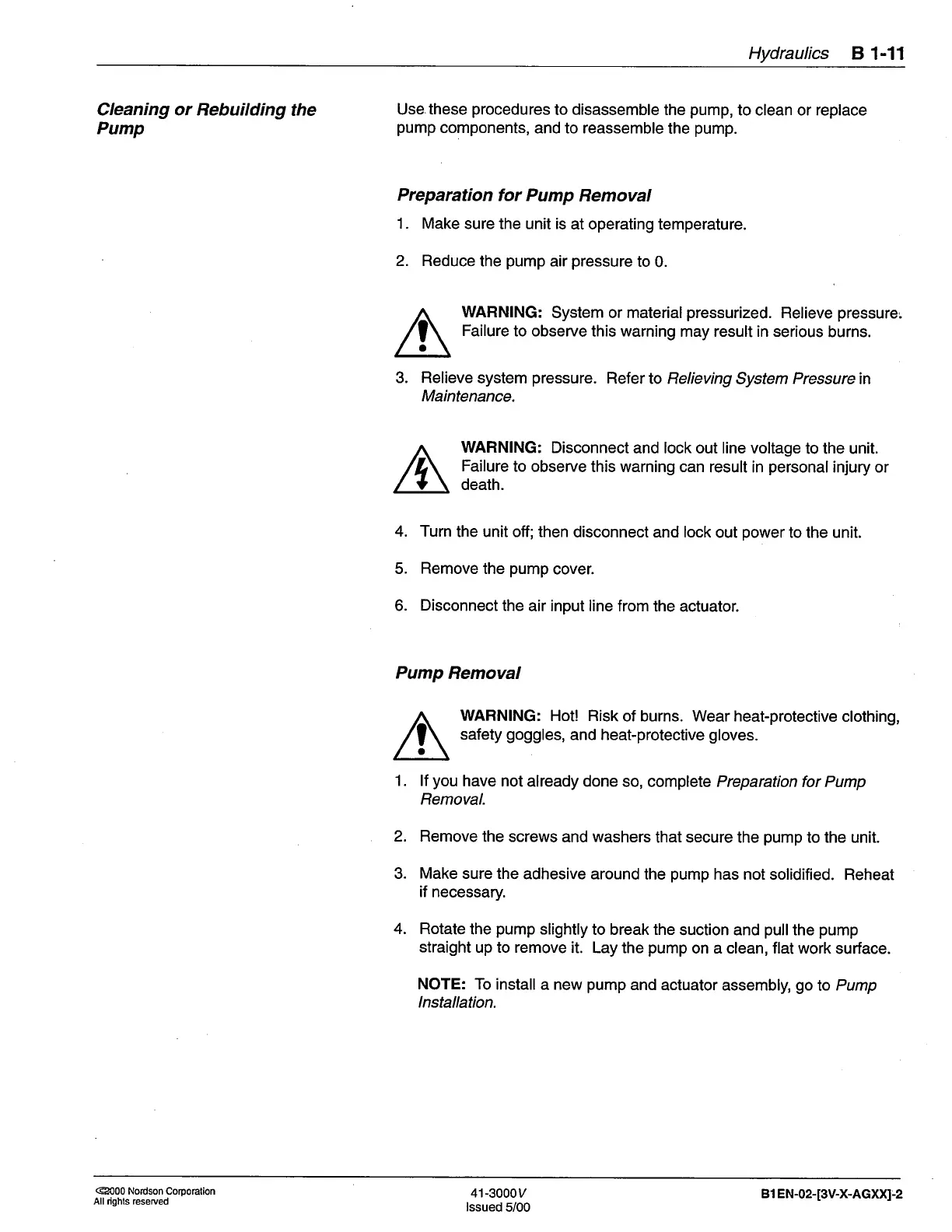

Nordson 3100V Series Customer Product Manual

Hydraulics
B 1-11
Cleaning or Rebuilding
the
Pump
Use.these
procedures
to
disassemble
the
pump,
to clean or replace
pump
components,
and to reassemble
the
pump.
Preparation
for Pump
Removal
1. Make
sure the unit is
at operating
temperature.
2. Reduce
the
pump
air
pressure
to
0.
WARNING:
System or material
pressurized.
Relieve
pfessure.
Failure
to obserue
this warning may result in serious
burns.
3. Relieve
system
pressure.
Referto Relieving
System
Pressurein
Maintenance.
WARNING:
Disconnect
and lock out line voltage
to the unit.
Failure
to
obserue this warning can
result in
personal
injury or
death.
4. Turn
the unit off; then
disconnect
and
lock
out
power
to the unit.
5.
Remove
the
pump
cover.
6.
Disconnect
the
air input line from
the actuator.
Pump
Removal
WARNING:
Hot! Risk
of burns. Wear heat-protective
clothing,
safety
goggles,
and heat-protective
gloves.
1. lf
you
have
not already done
so, complete Preparation
for
Pump
Removal.
2. Remove
the screws
and
washers
that secure the
pump
to the unit.
3. Make sure the
adhesive around
the
pump
has not
solidified. Reheat
if necessary.
4. Rotate
the
pump
slightly
to break the
suction and
pull
the
pump
straight
up to remove
it. Lay the
pump
on a clean, flat work
surface.
NOTE: To
install a new
pump
and
actuator assembly,
go
lo
Pump
lnstallation.
@000 Nordson Corporation
All rights reserued
41-3000y
lssued
5/00
BlEN-02-[3V-X-AGffi:2
