Nordson 3100V Series Customer Product Manual

B 1-56
Hydraulics
Filter Assembly Parts List

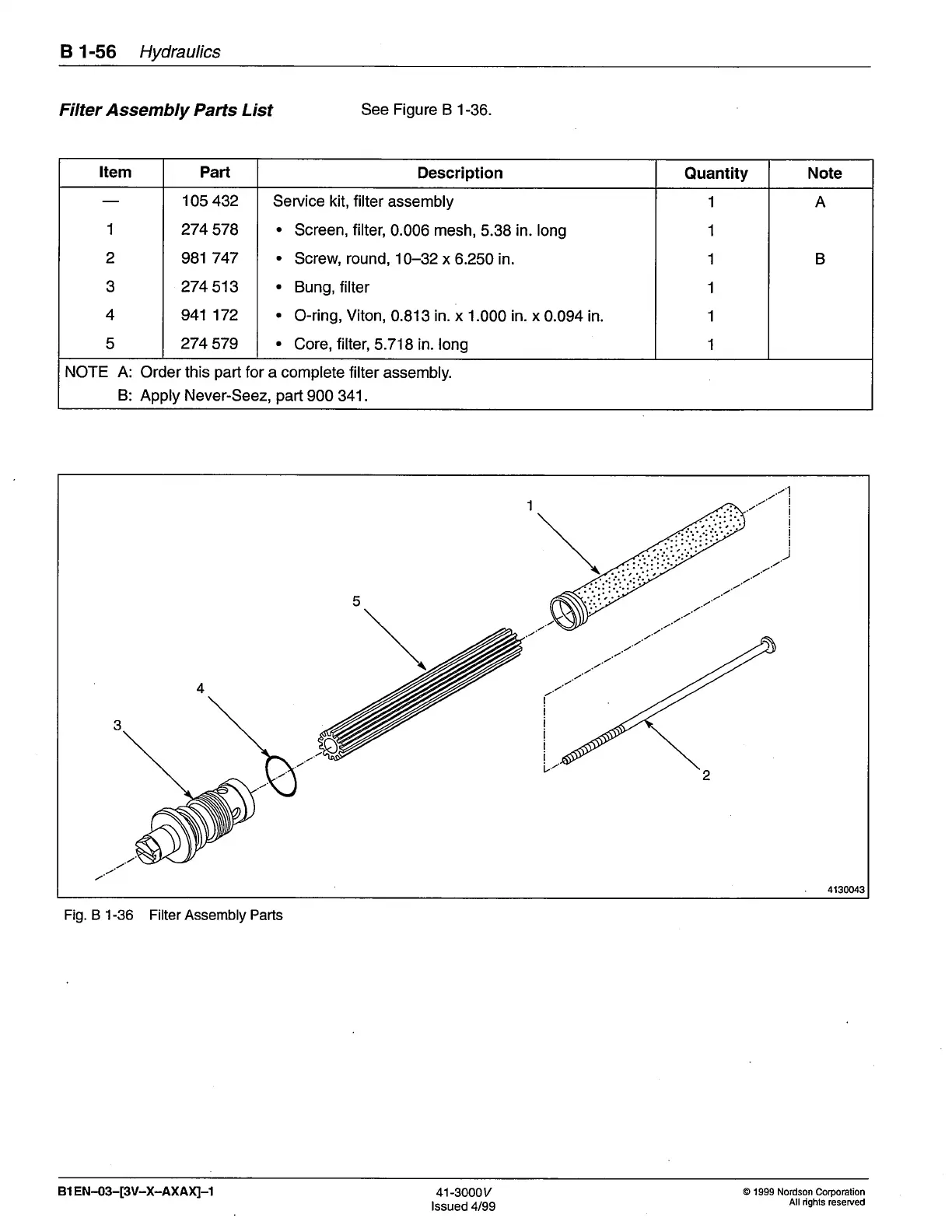

Fig. B 1-36 Filter Assembly Parts
See
Figure
B 1-36
Item
Part
Description
Quantity
Note
1
2
3
4
5
105
432
274
578
981
747
274
513
941 172
274
579
Seruice
kit, filter
assembly
.
Screen,
filter,
0.006
mesh,
5.38 in. long
.
Screw, round, 10-32
x 6.250 in.
.
Bung, filter
.
O-ring,
Viton,
0.813
in. x
1.000
in. x
0.094 in
.
Core, filter,5.71B
in. long
1
1
1
1
1
1
A
B
NOTE
A: Order this
part
for a complete
filter assembly.
B:
Apply Never-Seez,
part
900 341.
1
5
4
3
2
4r30043
BlEN-03-[3V-X-AXAR-1
41-3000y
lssued
4/99
@
1999 Nordson
Corporation
All rights
reserved
