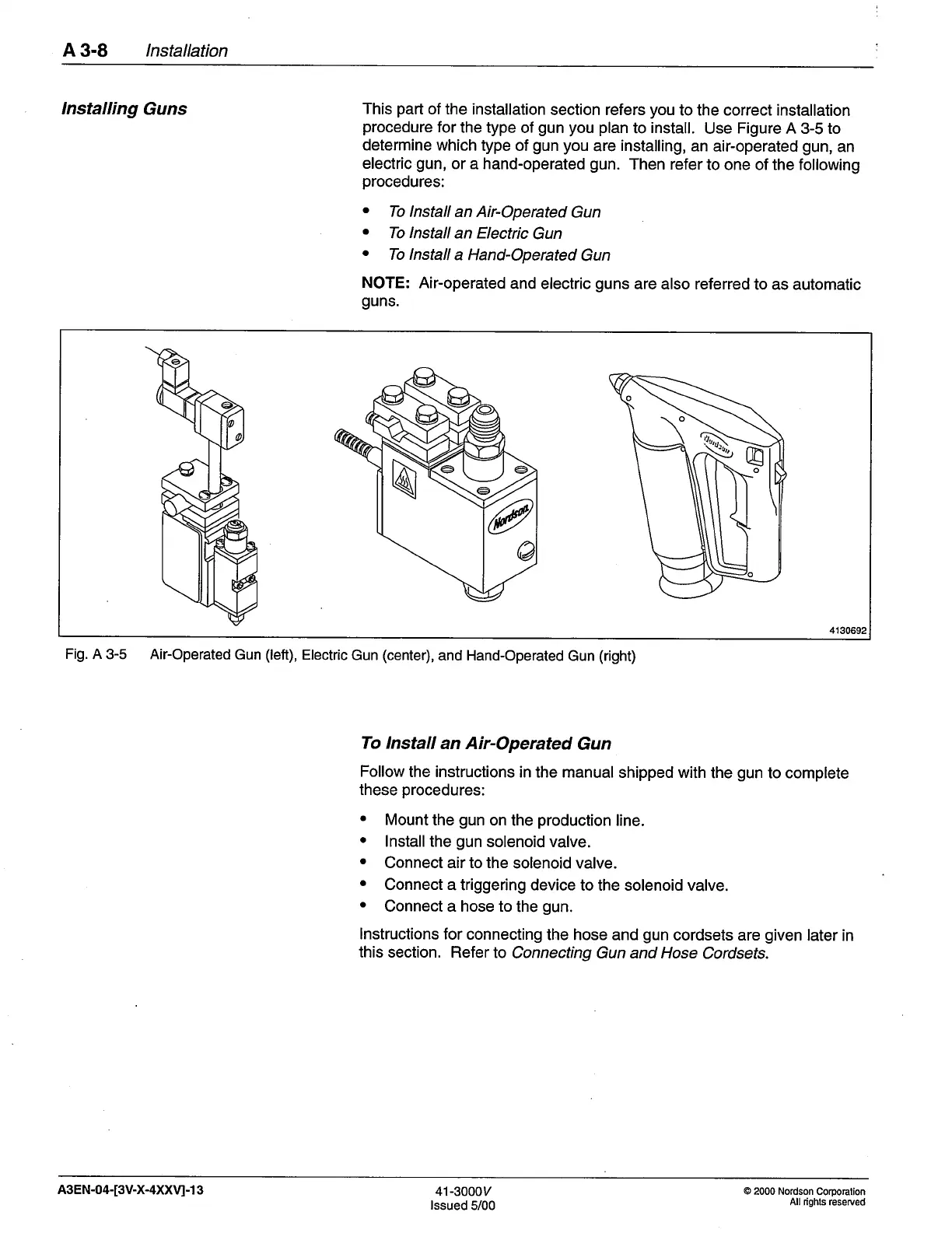

Nordson 3100V Series Customer Product Manual

A
3-8
lnstallation
lnstalling
Guns
This
part
of the
installation
section refers
you
to the correct installation
procedure
for
the type
of
gun
you
plan
to
install.
Use
Figure
A 3-5 to
determine
which
type of
gun
you
are
installing,
an
air-operated
gun,
an
electric
gun,
or
a
hand-operated
gun.
Then refer
to one of the following
procedures:
o
To lnstallan
Air-Operated
Gun
.
To
lnstall
an
Electric
Gun
o
To lnstalla
Hand-Operated
Gun
NOTE: Air-operated
and electric
guns
are also referred
to as automatic
guns.
4130692
Fig.
A 3-5 Air-Operated
Gun
(left),
Electric
Gun
(center),
and Hand-Operated
Gun
(right)
To lnstall
an Air-Operated
Gun
Follow
the instructions
in the manual
shipped with
the
gun
to complete
these
procedures:
.
Mount
the
gun
on the
production
line.
o
lnstall the
gun
solenoid valve.
o
Connect air to the
solenoid valve.
.
Connect a triggering device
to the solenoid valve.
.
Connect a hose to
the
gun.
lnstructions for
connecting
the hose
and
gun
cordsets are
given
later in
this section. Refer
to
Connecting Gun and Hose
Cordsets.
A3EN-04-[3V-X-4XXVj-1
3
4't-3000v
lssued
5/00
O
2000 Nordson
Corporalion
All righls reserved
