Nordson 3100V Series Customer Product Manual

A
3-16
lnstallation
Opening the Electrical
Enclosure
To make
the electrical connections inside
the unit, follow this
procedure
to open the unit
and access the electrical enclosure.
WARNING: Risk
of equipment damage,
personal
injury or
death. Disconnect
and lock
out electrical
power
to the unit.
1. Place
the
unit's
POWER
switch in the off
position
and disconnect and
lock
out electrical
power
to the unit at the branch
circuit
disconnect
switch.
2.
See
Figure
A 3-10.
Loosen
the
captive
screws on the electrical
enclosure lid, lift
the lid from the unit,
and
prop
it against the
pump
cover. Take care not
to disconnect the
ground
wire.
3.
Make
sure the support strap is not wrapped
around any board
components.
Untangle the strap if necessary.
4. Loosen
the two captive screws
on either side of
the
control-end frame
and lower the frame. You
may need to
pull
the
front
and
rear
panels
apart to release
the frame.
5.
Avoid
direct contact with internal
electrical connections,
components,
or wiring.
6.
Make
sure allground wires
are securely connected
t
t'
41308494

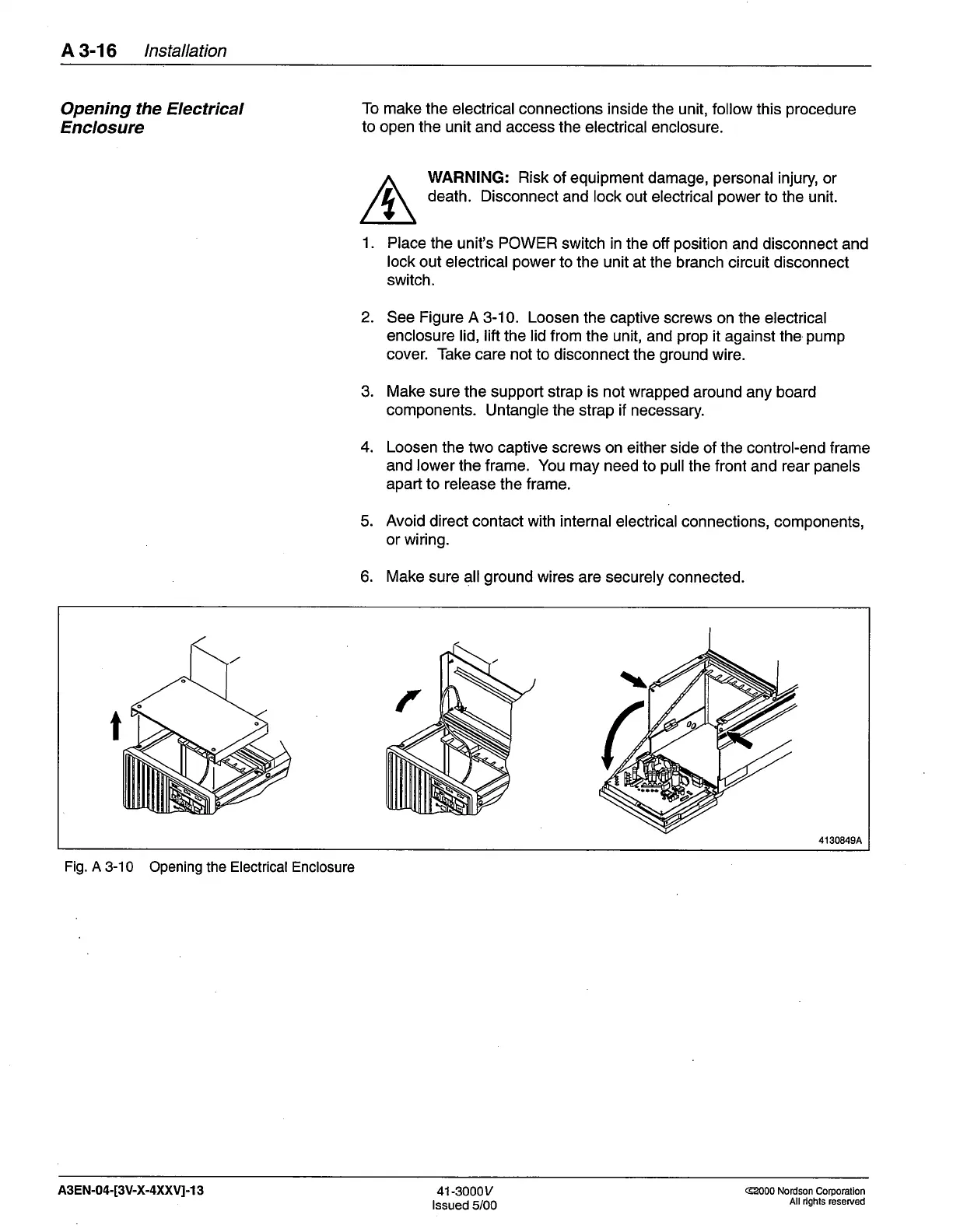

Fig.
A 3-10 Opening
the
ElectricalEnclosure
A3EN-04-[3V-X-4XXUI-1
3
41-3000v
lssued
5/00
@000 Nordson Corporatlon
All rights resewed
