B 1-2
Hydraulics
2.
Overview
of the
Hydraulic
System
Two
major assemblies
make up the hydraulic
system: an air-driven
piston
pump
and a manifold.
See
Figure
B 1-1. The
pump
assembly
includes
an air section,
a hydraulic section, and
an actuator.
The
manifold
assembly, which is indirectly
heated by the tank, includes
an
aluminum
manifold with hose
ports,
a filter assembly,
a drain
valve,
and a
pressure
relief valve.
1
4
2
3
4130033

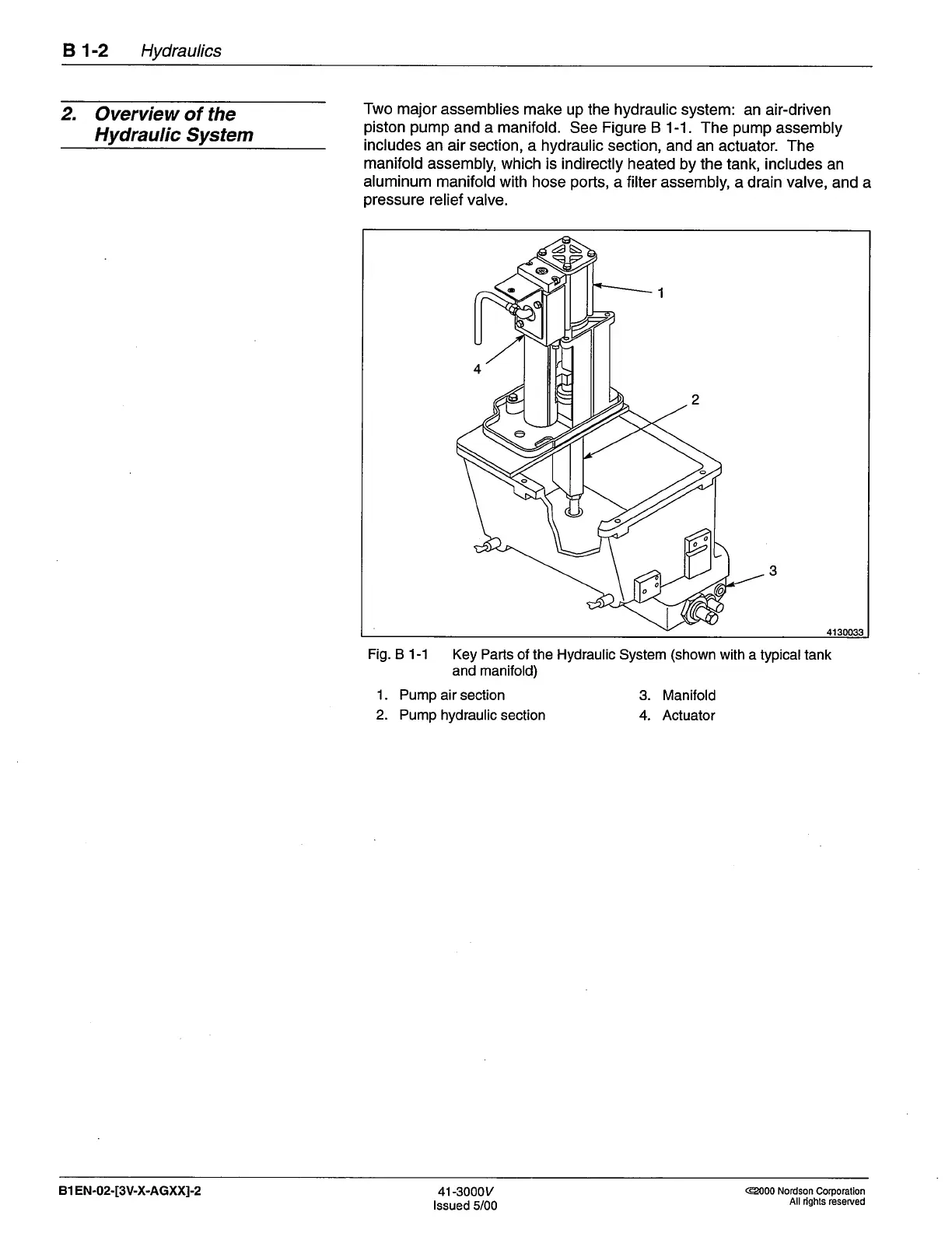

Fig. B 1-1 Key
Parts of the Hydraulic System
(shown
with
a typical tank
and manifold)
1. Pump
air section 3. Manifold
2. Pump
hydraulic
section 4. Actuator
81 EN-02-[3V-X-AGXX]-2
41
-3000v
lssued
5/00
@O00 Nordson
Corporalion
All rights resewed
