Nordson 3100V Series Customer Product Manual

16
Hot Melt Hose
5920023

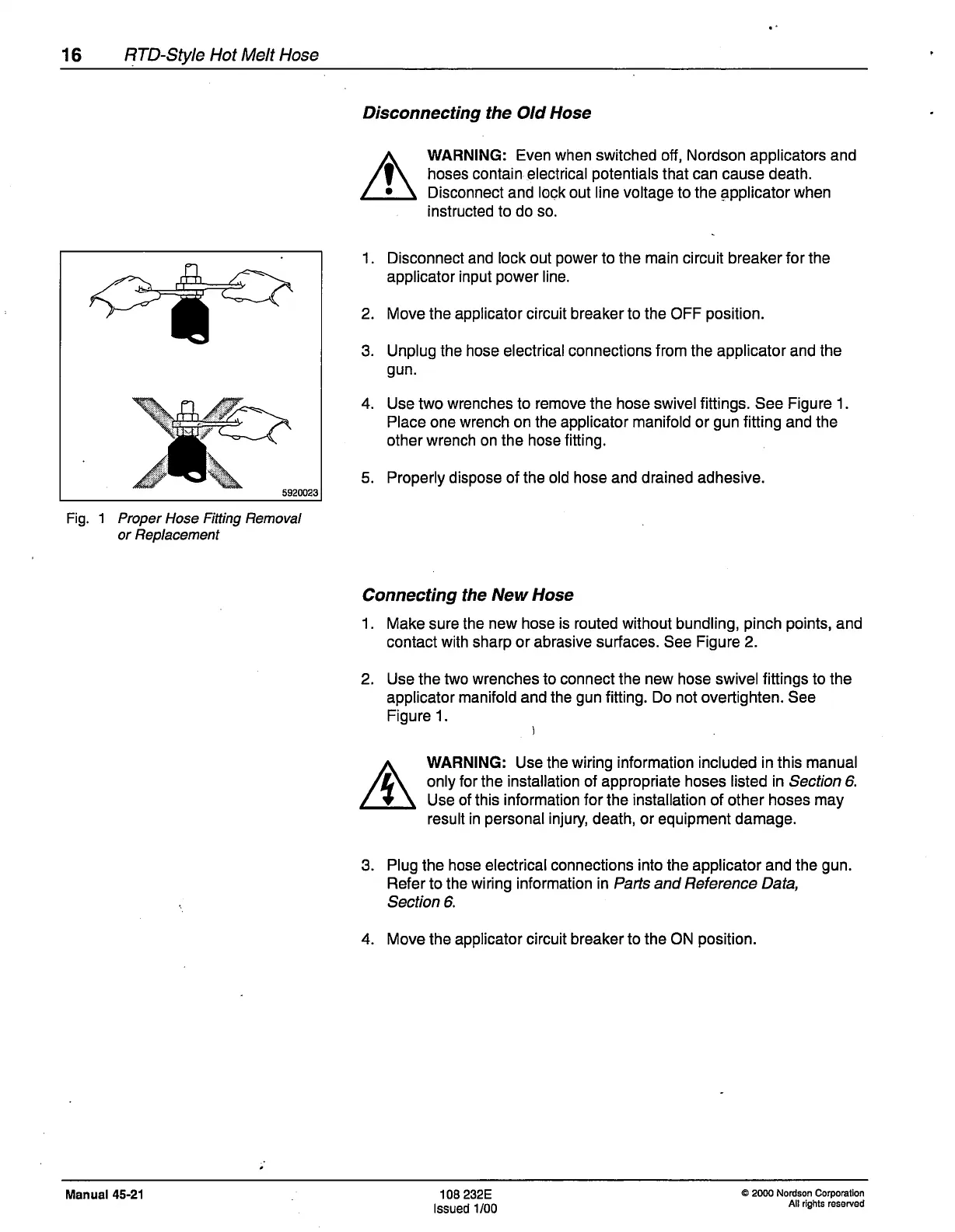

Fig.
1 Proper
Hose
Fitting Removal
or
Replacement
Disconnecting the Old Hose
WARNING: Even when switched
off,
Nordson
applicators and
hoses contain electrical
potentials
that can cause death.
Disconnect and
lock
out line
voltage
to the
qpplicator
when
instructed to do so.
1 . Disconnect and lock out
power
to the main circuit breaker for the
applicator input
power
line.
2. Move
the applicator
circuit breaker
to
the
OFF
position.
3. Unplug the hose electrical connections from the applicator and the
gun.
4.
Use two
wrenches
to
remove the hose
swivel
fittings. See Figure 1
Place one wrench on the applicator manifold or
gun
fitting and the
other wrench on the hose fitting.
5. Properly dispose of the old hose and drained adhesive.
Connecting the
New Hose
1. Make
sure the
new hose is routed without
bundling,
pinch points,
and
contact with sharp or abrasive surfaces. See
Figure
2.
2. Use
the
two wrenches to connect the new hose swivel fittings to the
applicator
manifold and the
gun
fitting. Do not overtighten. See
Figure 1.
)
WARNING:
Use the
wiring information included in this manual
only
for
the installation of appropriate
hoses listed in Section 6.
Use of this
information for
the
installation
of other
hoses may
result in
personal
injury,
death, or equipment damage.
3.
Plug
the
hose electrical connections into the applicator and the
gun
Refer
to the
wiring information in Parts and Reference Data,
Section 6.
4.
Move the applicator
circuit breaker to the ON
position
Manual 45-21 108232E
lssued
1/00
O
zU)O Nordson Corporatlon
All rights ressrved
