Nordson 3100V Series Customer Product Manual

Tank
B 3-9

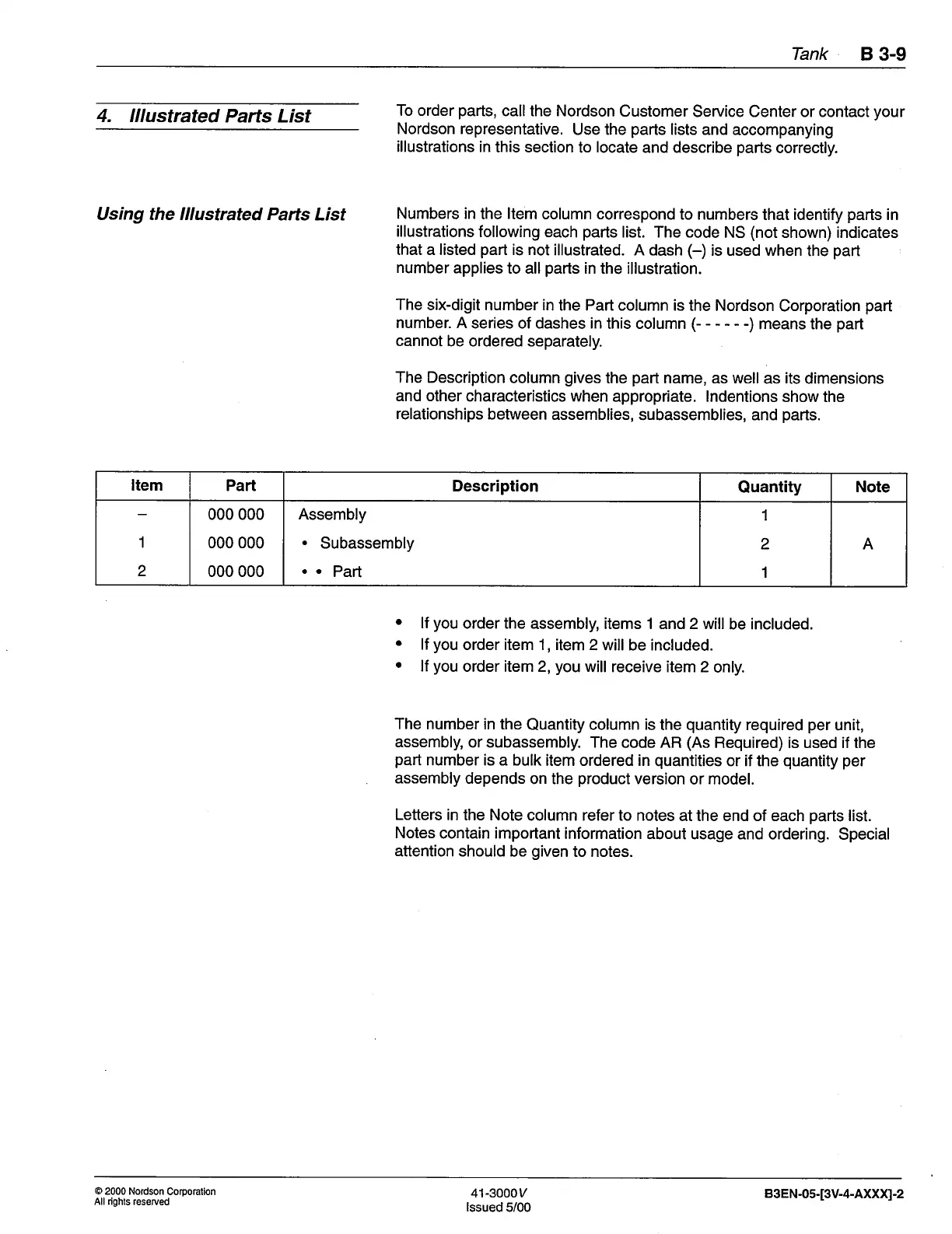

4. lllustrated Parts List
Using the lllustrated Parts
List
To order
parts,
call the Nordson
Customer
Service Center or contact
your
Nordson representative.
Use the
parts
lists and
accompanying
illustrations in
this section
to
locate
and describe
parts
correctly.
Numbers in
the
ltem
column correspond
to numbers
that identify
parts
in
illustrations
following each
parts
list. The code
NS
(not
shown) indicates
that a listed
part
is not
illustrated. A dash
(-)
is used when
the
part
number
applies
to all
parts
in the illustration.
The
six-digit number in
the Part column is
the Nordson
Corporation
part
number. A
series of dashes in
this column
(-
-
-
- - -)
means the
part
cannot
be ordered separately.
The Description
column
gives
the
part
name, as well
as
its
dimensions
and other
characteristics when
appropriate. lndentions
show the
relationships
between
assemblies,
subassemblies, and
parts.
.
lf
you
order the
assembly, items 1 and 2 will
be included
.
lf
you
order item 1, item
2 will be included.
.
lf
you
order item 2,you
will receive item 2
only.
The
number in the
Quantity
column is
the
quantity
required
per
unit,
assembly,
or subassembly.
The code AR
(As
Required) is used if the
part
number is a bulk
item ordered in
quantities
or if the
quantity per
assembly
depends
on the
product
version
or model.
Letters
in the Note
column refer to notes
at the end of each
parts
list.
Notes
contain important
information
about usage and ordering.
Special
attention should
be
given
to notes.
Item
Part
Description
Quantity
Note
1
2
000 000
000 000
000 000
Assembly
.
Subassembly
. .
Part
1
2
1
A
@
2000 Nordson
Corporatlon
All righls
reserved
41-3000y
lssued
5/00
BsEN-05-[3V-4-AXXX]-2
