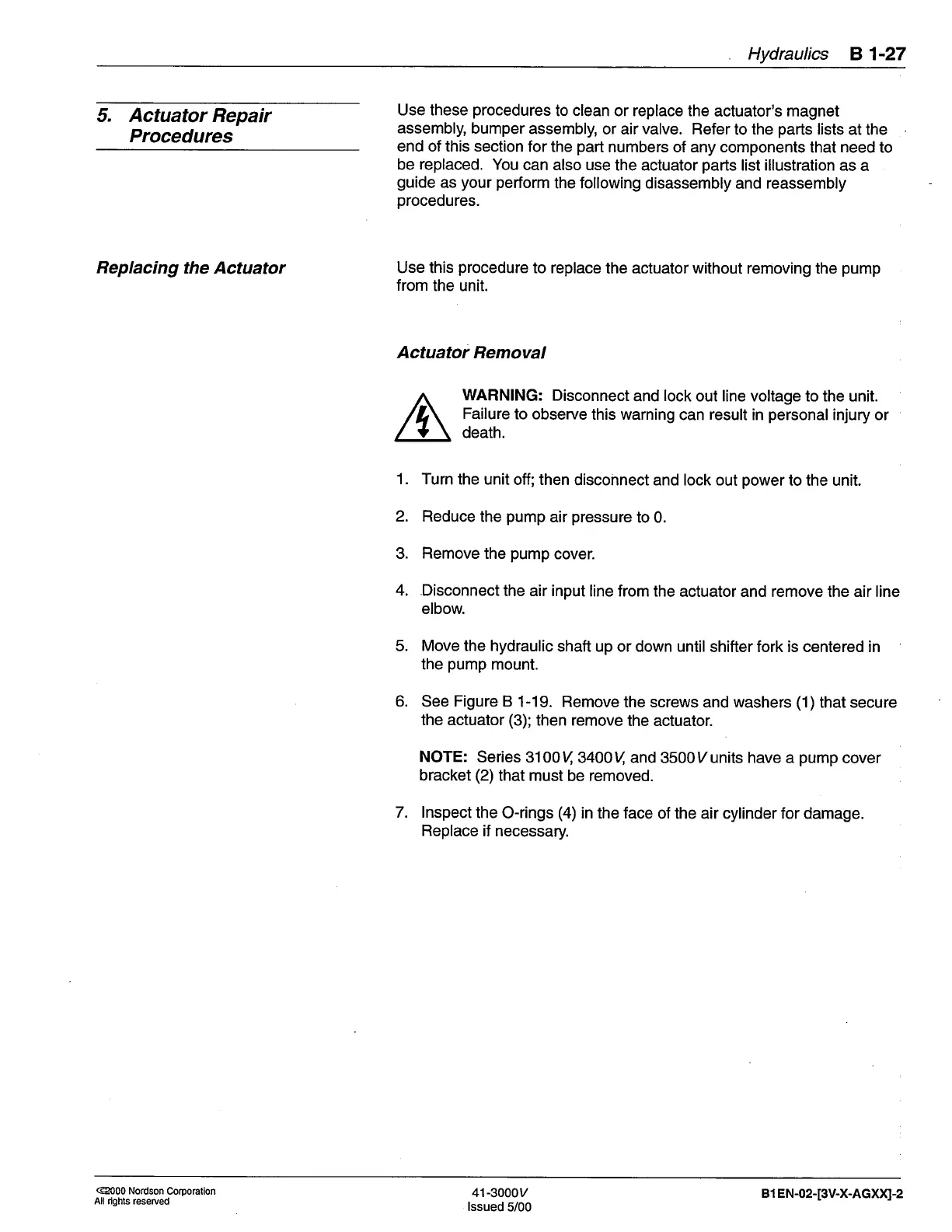

Nordson 3100V Series Customer Product Manual

Hydraulics
B 1-27
5. Actuator
Repair
Procedures
Use these
procedures
to
clean
or replace the
actuator's magnet
assembly, bumper
assembly,
or air
valve.
Refer
to
the
parts
lists at the
end of this section
for the
part
numbers of any components
that
need
to
be
replaced.
You
can also use
the actuator
parts
list illustration
as a
guide
as
your perform
the following
disassembly and reassembly
procedures.
Use this
procedure
to replace
the actuator
without
removing the
pump
from
the unit.
Actuator
Removal
WARNING:
Disconnect
and
lock
out line voltage to the unit.
Failure
to observe
this warning
can
result
in
personal
injury or
death.
1. Turn
the unit
off; then
disconnect and lock out
power
to the unit.
2. Reduce
the
pump
air
pressure
to 0.
3.
Remove
the
pump
cover
4. Disconnect
the air input
line from the
actuator and remove the air line
elbow.
5.
[Vlove
the
hydraulic
shaft up or down until
shifter fork is centered in
the
pump
mount.
6.
See
Figure B
1-19. Remove
the screws
and
washers
(1)
that secure
the actuator
(3);
then remove
the actuator.
NOTE:
Series
3100t4
340OV, and 35007units have a
pump
cover
bracket
(2)that
must
be
removed.
7. lnspect
the
O-rings
(4)
in
the
face
of the air cylinder for
damage
Replace
if necessary.
Replacing
the Actuator
@000 Nordson
Corporation
All rights reseNed
41-3000v
lssued
5/00
81 EN-02-[3V-X-AGXXI-2
