Nordson 3100V Series Customer Product Manual

B
1-38
Hydraulics
Removing
the
Solenoid
Valve
(contd)
lnstalling
the
Solenoid Valve
5
1
4
2
4130834A
Fig. B

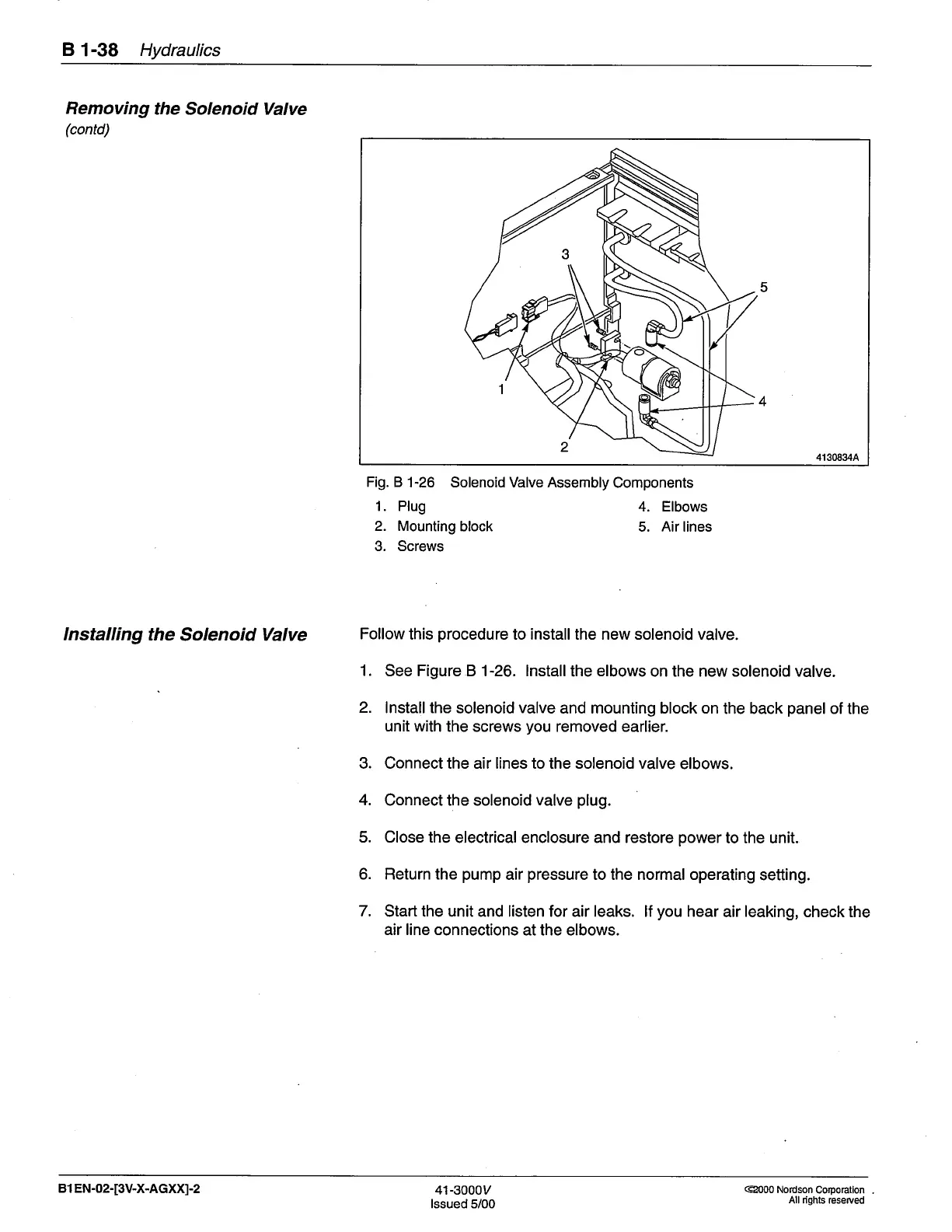

1-26 Solenoid Valve Assembly
Components
1. Plug
4. Elbows
2. Mounting
block
5. Air lines
3. Screws
Follow
this
procedure
to install the new solenoid valve.
1.
See Figure B 1-26. lnstall
the
elbows
on the new solenoid valve.
2.
lnstall the
solenoid
valve
and mounting block on
the back
panel
of
the
unit with
the screws
you
removed earlier.
3. Connect the air lines to the solenoid valve
elbows.
4.
Connect the solenoid
valve
plug.
5. Close the
electrical enclosure and restore
power
to the unit.
6. Return the
pump
air
pressure
to the normal operating
setting.
7.
Start the unit and listen for air leaks. lf
you
hear
air
leaking,
check the
air line connections
at the elbows.
