Nordson 3100V Series Customer Product Manual

Description
A 2-9
Air Pressure
Regulator
1
2
3
4130666

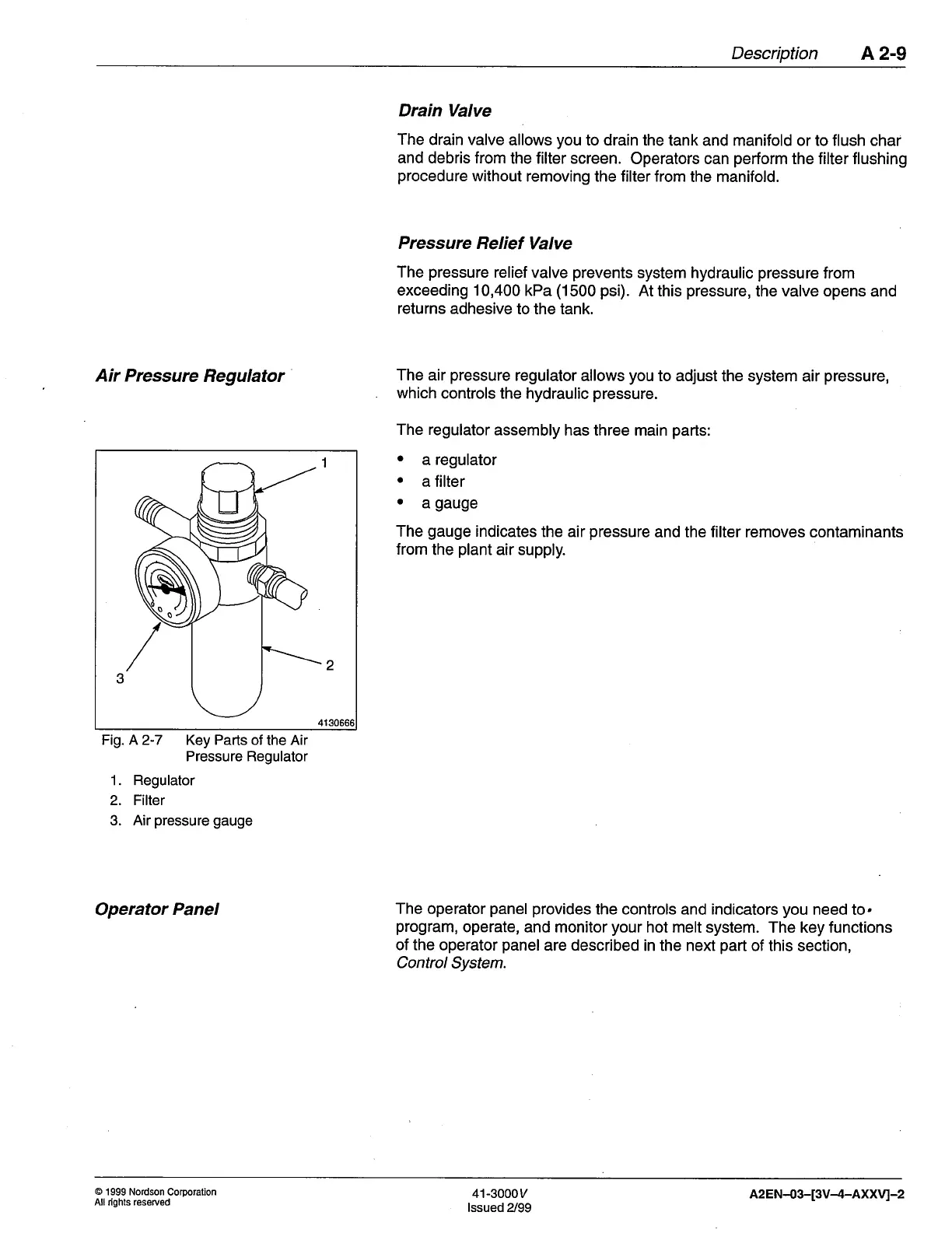

Fig. A2-7 Key Parts of
the
Air
Pressure Regulator
1. Regulator
2. Filter
3. Air
pressure
gauge
Operator
Panel
Drain
Valve
The
drain valve
allows
you
to drain the
tank and manifold or to flush char
and debris from
the filter screen.
Operators can
perform
the filter flushing
procedure
without
removing the filter from
the manifold.
Pressure
Relief Valve
The
pressure
relief
valve
prevents
system hydraulic
pressure
from
exceeding
10,400 kPa
(1500 psi).
At this
pressure,
the
valve opens
and
returns
adhesive to the tank.
The
air
pressure
regulator
allows
you
to adjust
the system air
pressure,
which
controls the hydraulic
pressure.
The regulator
assembly
has three main
parts:
o
a
regulator
.
a filter
.
a
gauge
The
gauge
indicates
the air
pressure
and the filter removes contaminants
from
the
plant
air supply.
The operator
panel
provides
the controls
and
indicators
you
need to,
program,
operate,
and monitor
your
hot melt
system. The key functions
of the
operator
panel
are described in the next
part
of this section,
ControlSystem.
@
1999 Nordson
Corporalion
All dghts reserved
41-3000y
lssued 2/99
A2 EN-03-[3V-4-AXXVI-2
