Chapter 8 Installation and Connection
EVIS EXERA II VIDEO SYSTEM CENTER CV-180
8.3 Fitting of accessories
Videoscope cable holder (MAJ-1466)
The videoscope cable holder (MAJ-1466) is used to temporarily hang the
connector on the endoscope end of the videoscope cable. The holder is attached
to the video system center by ditches A or ditches B (see Figure 8.5).
Do not hook anything other than the videoscope cable on the
videoscope cable holder.

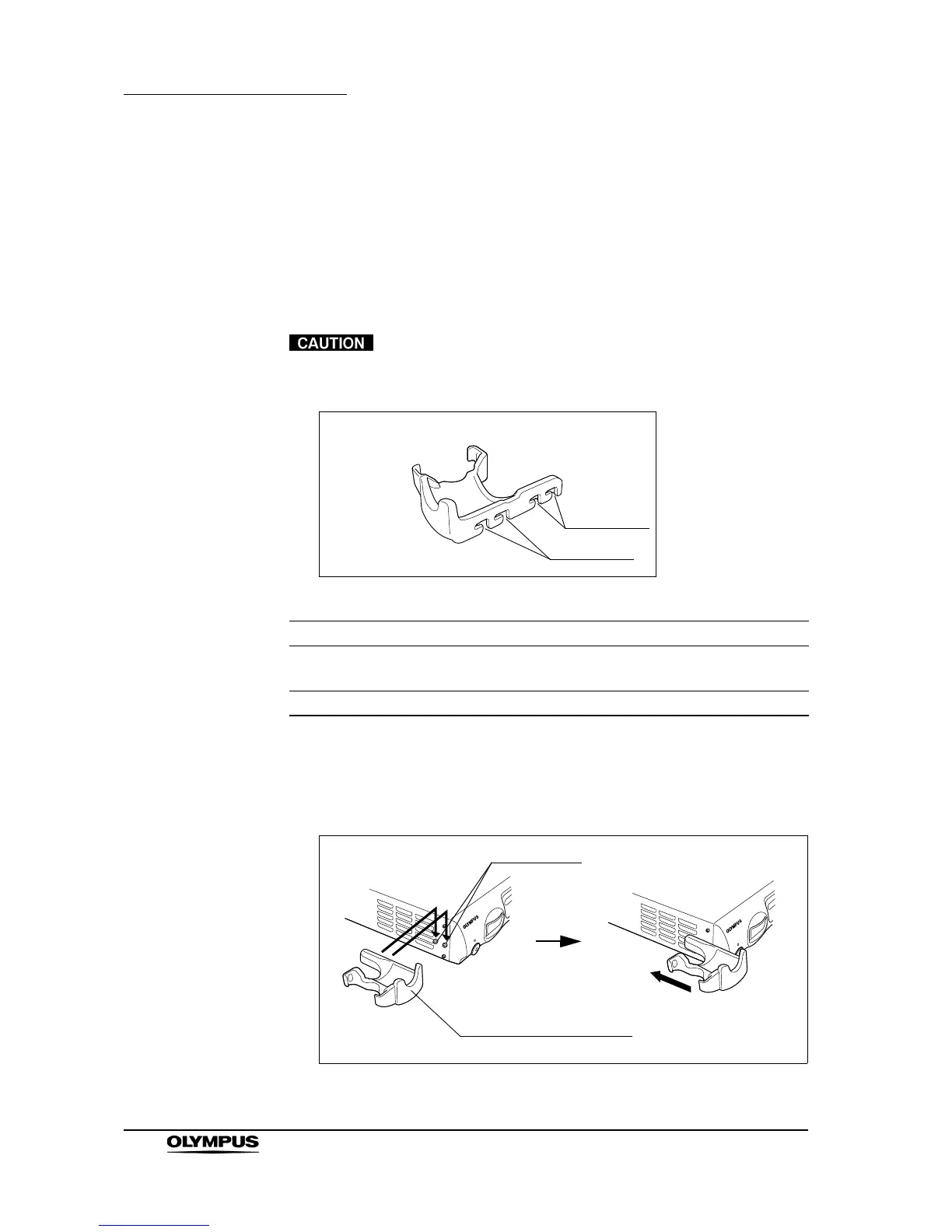

Figure 8.5
1. Fit ditches A or B to the projections on the left side of the instrument.
2. Push the videoscope cable holder backward until it clicks.
Figure 8.6
Ditch Remark
A
The scope cable holder projects forward from the front panel.
(When the water container is mounted on the light source.)
B The scope cable holder does not project forward from the front panel.
Table 8.1
Scope cable holder
Ditches A
Ditches B
Scope cable holder
Projections
(a)
(b)
