22
Chapter 2
Nomenclature and Function
s
EVIS EXERA II VIDEO SYST
EM CENTER CV-180

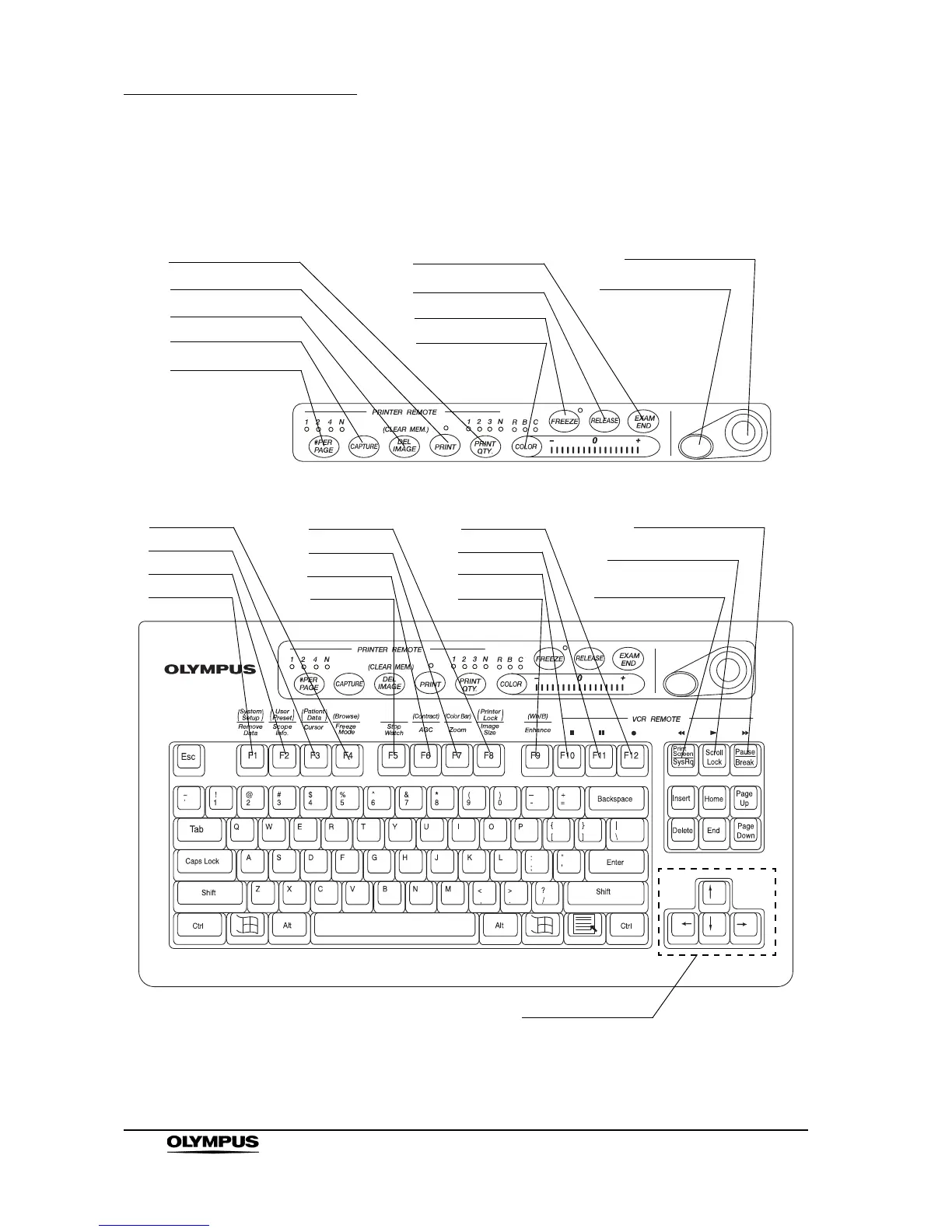

2.3
Keyboard
20.
PRINT QTY. key
19.
PRINT key
18.
DEL IMAGE key
17.
CAPTURE key
24.
EXAM END key
23.
RELEASE key
22.
FREEZE key
21.
COLOR key
26.
Domepoint
25.
Click key
4.
F4 key
3.
F3 key
2.
F2 key
1.
F1 key
8.
F8 key
7.
F7 key
6.
F6 key
5.
F5 key
12.
F12 key
11.
F11 key
10.
F10 key
9.
F9 key
16.
#PER PAGE key
15.
Pause key
14.
Scroll lock key
13.
Print screen key
27.
Arrow key
s
29
31
Table of Contents
Default Chapter
3
Table of Contents
3
Labels and Symbols
9
Important Information - Please Read before Use
11
Intended Use
11
Instruction Manual
11
User Qualifications
13
Instrument Compatibility
13
Repair and Modification
14
Signal Words
14
Dangers, Warnings and Cautions
15
Cardiac Applications
19
Summary of Equipment Functions
20
Chapter 1 Checking the Package Contents
22
Chapter 2 Nomenclature and Functions
23
Front Panel
23
Rear Panel
27
Keyboard
30
Side Panels
35
Videoscope Cable EXERA II (MAJ-1430)
35
Set-Up of Screen Options
36
Monitor
37
Pointer
41
Chapter 3 Inspection
42
Inspection of the Power Supply
43
Inspection of the Examination Light
44
Inspection of the Automatic Brightness Control Function
45
Inspection of the Monitor Display
46
Inspection of the Freeze Function
47
Inspection of the Release Function
47
Inspection of the Pinp (Picture in Picture) Function
47
Inspection of the Orientation Function
47
Inspection of the Special Light Observation Function
48
Inspection of the Scope Switches and Foot Switches
48
3.11 Power off
48
Chapter 4 Operation
49
Operation Flow
52
Connection of an Endoscope
54
Turning the Video System Center on
58
Recall of User Preset Data
59
White Balance Adjustment
60
Patient Data
65
Observation of the Endoscopic Image
67
Recording of the Observation Image
67
Termination of the Operation
68
Chapter 5 Functions
70
Front Panel
70
Image Source Buttons
70
Pinp (Picture in Picture) Display
72
Image Enhancement Mode (ENH.)
75
Iris Mode
77
White Balance
78
Brightness Adjustment (Exposure)
79
STOP Button and PC Card Indicator
83
PC Card Slot and Eject Button
84
RESET Button
88
Keyboard
89
Domepoint
89
Clearing Characters from the Screen ("F1")
90
System Setup ("Shift" + "F1")
92
Scope Information ("F2")
92
User Preset ("Shift" + "F2")
93
Cursor ("F3")
93
Patient Data ("Shift" + F3)
94
Freeze Mode ("F4")
94
Browse ("Shift" + "F4")
95
Stopwatch ("F5")
96
Automatic Gain Control (AGC) ("F6")
97
Contrast Mode ("Shift" + "F6")
98
Image Zooming ("F7")
99
Color Bar ("Shift" + "F7")
101
Image Size ("F8")
102
Printer Lock ("Shift" + "F8")
103
Image Enhancement ("F9")
104
White Balance Adjustment ("Shift" + "F9")
105
Color Tone Adjustment ("COLOR")
106
Freeze ("FREEZE")
107
Release ("RELEASE")
109
Arrow Pointer ("Shift" + Arrow Keys and Domepoint)
110
Color Mode ("Shift" + "Alt" + "1", "2", "3", "4")
112
Ending Examination ("EXAM END")
113
Image Recording and Playback (PC Card)
114
Storage Level of the PC Card
114
Recording the Frozen Image on a PC Card
116
PC Card Menu
118
Basic Operation of the PC Card Menu
119
Formatting of the PC Card
122
Playback Images from the PC Card
123
Deleting Images from a PC Card
125
Deleting Folder from PC Card
126
Annotation of Images
127
Playback Image Annotation
130
Playback the Images Using the Personal Computer
132
Image Files and Folders
133
Image Recording and Playback (Other than PC Card)
135
Image Filing System
135
Videocassette Recorder (VCR)
137
Printing Images
139
Video Printer
139
Pre-Entry of Patient Data
144
Basic Operation in the Patient Menu
144
Entering New Patient Data
145
Displaying Patient Data
148
Editing Previously Entered Patient Data
149
Deleting Previously Entered Patient Data
150
Clearing All Patient Data Previously Entered
151
Recording Patient Data into PC Card
152
Loading Patient Data from PC Card
154
Scope Information
156
Displaying and Entering Scope Information
157
Special Light Observation
159
NBI (Narrow Band Imaging)
159
Chapter 6 Fuse Replacement
161
Chapter 7 Care, Storage and Disposal
163
Care
163
Storage
164
Disposal
164
Chapter 8 Installation and Connection
165
Installation Work Flow
166
Installation of the Equipment
167
Fitting of Accessories
170
Light Source
172
Monitor
178
Keyboard
186
Videocassette Recorder (VCR)
187
Video Printer
189
OLYMPUS Flushing Pump (OFP)
191
8.10 Foot Switch
192
8.11 Ultrasound Center
193
8.12 Connection to the AC Mains Power Supply
197
Chapter 9 Function Setup
201
Turning Power on
201
System Setup
202
Basic Operation of the System Setup
202
System
205
Printer
209
Image Filing System
214
Monitor
216
Aspect Ratio
217
Videocassette Recorder
219
Saving the System Setup
221
Summary of Settings
222
User Preset
224
Basic Operation of the User Preset
224
Remote Switch and Foot Switch (EXERA and VISERA)
227
Release Function
231
Recording Format for PC Card
232
Freeze Function
233
Image Enhancement (Normal Observation)
234
Color Mode
236
Image Size
237
Iris
240
Iris Speed
243
Auto Gain Control (AGC)
245
Contrast
246
Exposure Area
247
Electronic Shutter
248
Patient Data Display
249
Scope Nickname
250
Release Index Time
251
Indication of the Special Light Observation
252
Monitor Orientation Function
253
Pinp (Picture in Picture) Function
254
Special Light Observation
258
Image Enhancement (NBI Observation)
258
Saving the User Preset
259
Resetting the User Preset Data to the Factory Defaults
260
Deleting User Preset Data
261
Summary of Settings
263
Chapter 10 Troubleshooting
267
10.1 Troubleshooting Guide
267
Error Messages
274
10.2 Returning the Video System Center for Repair
276
Appendix
277
System Chart
277
Transportation, Storage, and Operation Environment
284
Specifications
284
EMC Information
290
