Chapter 5 Functions
EVIS EXERA II VIDEO SYSTEM CENTER CV-180
RESET button
The “RESET” button resets the settings modified during use of the video system
center to the original values. The settings to be reset are the following items:
• User preset data: To be reset to their original settings.
• Items shown in Table 5.5: To be reset to the factory defaults.
1. Press and hold the “RESET” button on the front panel (see Figure 5.16). All
front panel indicators should blink for about 1 second, then the settings are
reset.

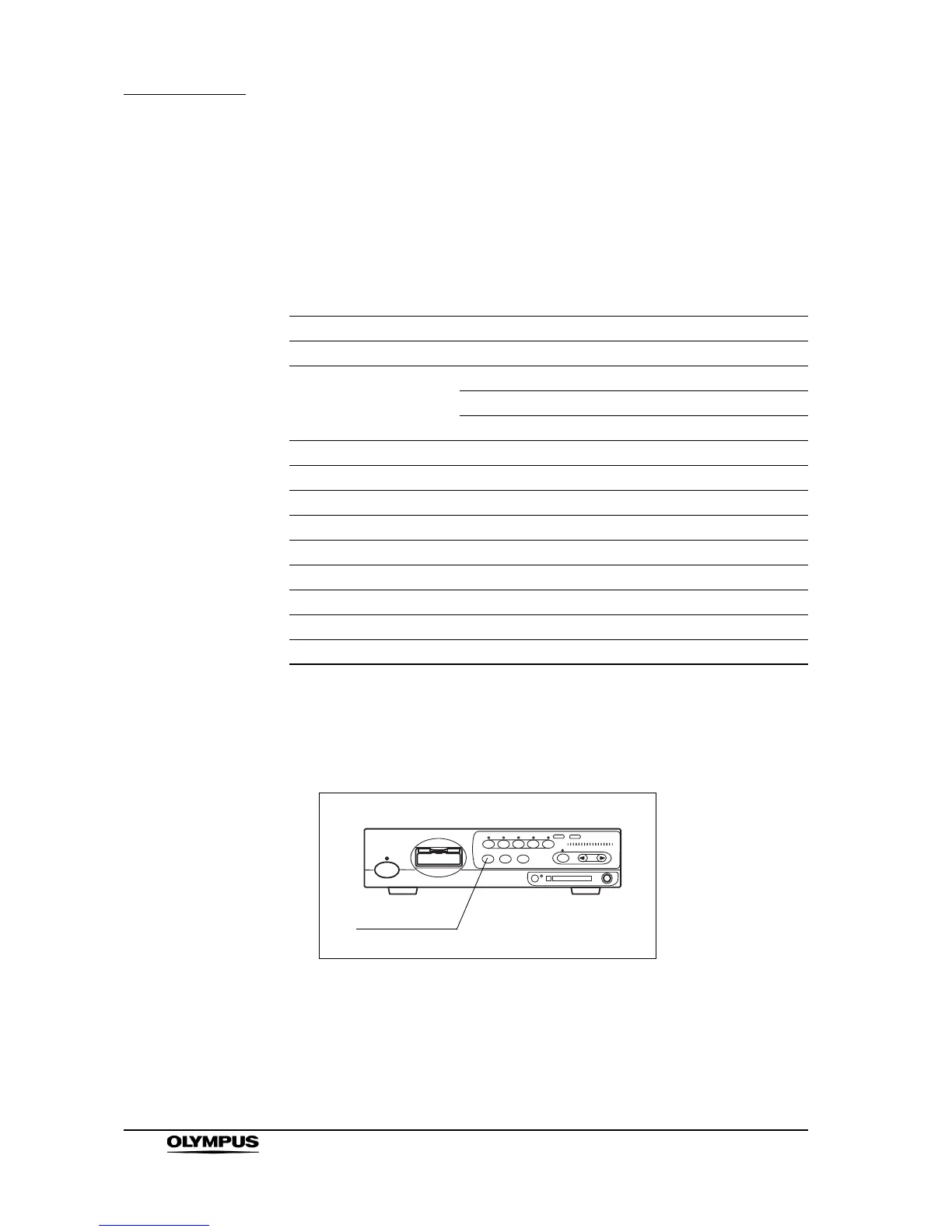

Figure 5.16
Function Default setting
Image source Scope
Color tone R [0]
G[0]
C[0]
Freeze Live image
Release index 4 sec
Zoom x1.0
Special light observation Normal observation
Arrow pointer OFF
Stop watch OFF
Characters on screen Full display
Exposure Center
PinP OFF
Table 5.5
RESET button
