Chapter 5 Functions
EVIS EXERA II VIDEO SYSTEM CENTER CV-180
Chapter 5 Functions
This chapter explains the functions of the buttons and keys on the video system
center. See the “System setup” menu and “User preset” menu in Chapter 9,
“Function setup” for presetting.
5.1 Front panel
Image source buttons
Used to select the image source displayed on the monitor. The buttons other
than the “SCOPE” button has to be pressed for more than 1 second to activate.
1. The Image source buttons select the images to be displayed on the monitor
(see Figure 5.1). The indicator above the active button lights up.
2. Confirm that the desired image appears on the monitor.

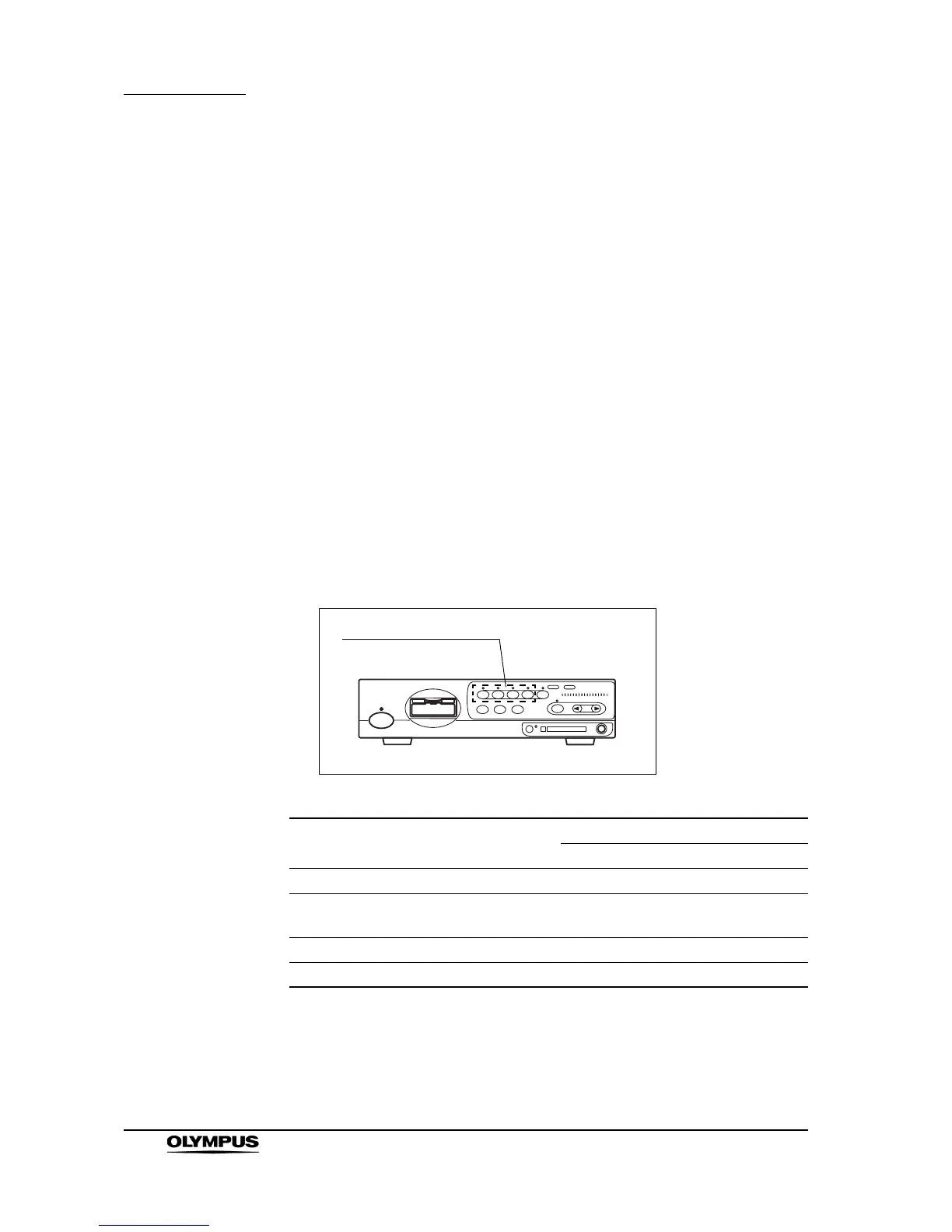

Figure 5.1
Button Images on the monitor
Terminal and image sources
Front panel Rear panel
SCOPE Endoscope’s live image Scope connector -
DV/VCR VCR, video recorder - VCR REMOTE or
DIGITAL OUT
PC Digital filing system - PC IN
PRINTER Video printer - PRINTER IN
Table 5.1
