Quantum QXS G2 Series User Manual

128 QXS G2 Hardware Installation and Maintenance Guide
Tabl e 2 0 provides the fan LED status and description.
5U Chassis Ops Panel LEDs
The Ops panel displays the aggregated status of all the modules. Figure 106 provides an illustration
of the 5U chassis Ops panel LEDs.

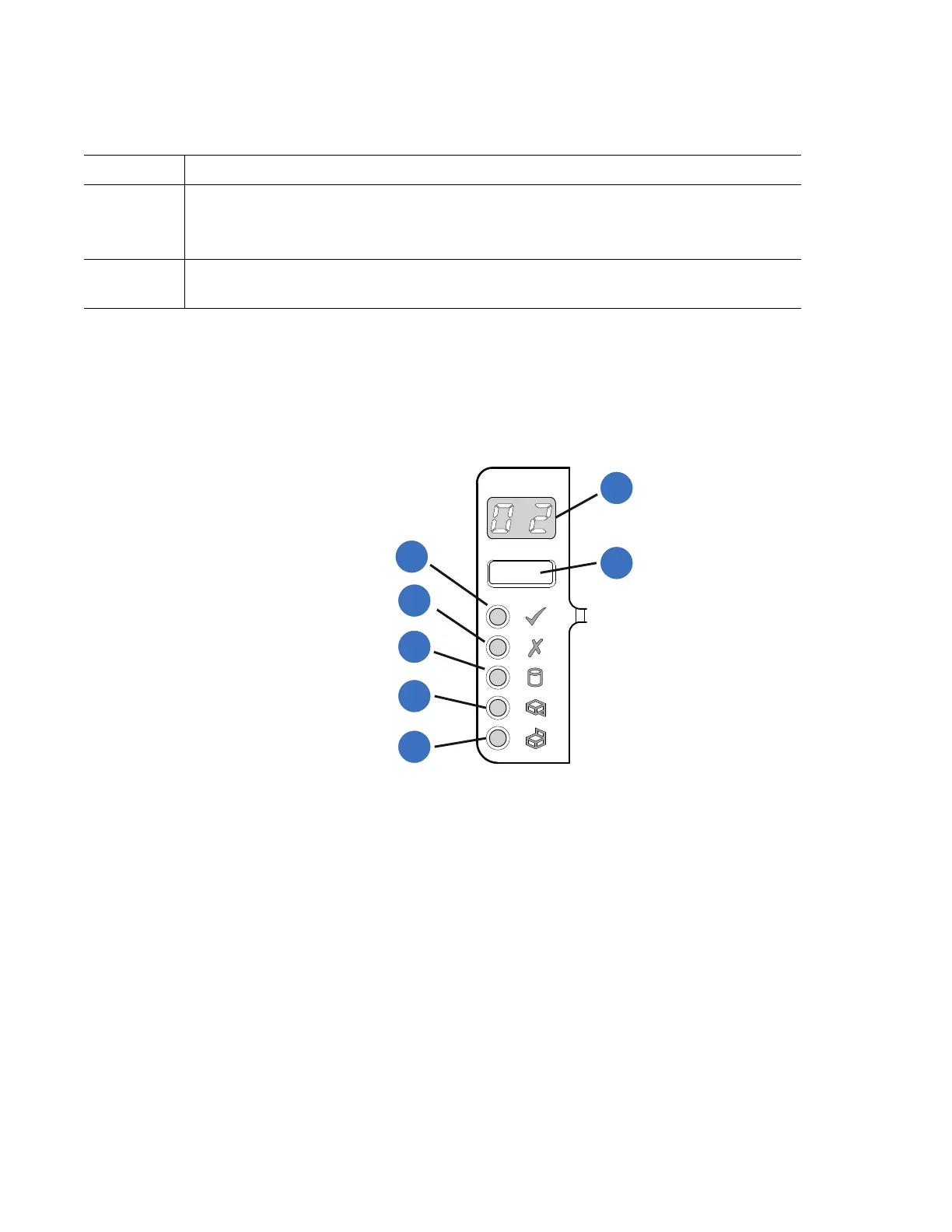

Figure 106 5U Chassis Ops Panel LEDs
Ta b l e 2 0 5U Chassis Fan LEDs
LED Status/Description
Module OK Constant green indicates that the fan is working correctly.
Off indicates the fan module has failed. Follow procedure in Replacing a 5U84 System
Fan on page 205.
Fan Fault Amber indicates the fan module has failed. Follow procedure in Replacing a 5U84
System Fan on page 205.
LED Status
1
Unit Identification Display Green: Seven segment display: chassis sequence
2
Input Switch Not used
3
System Power On/Standby Constant Green: positive indication
Constant Amber: system in standby (not operational)
4
Module Fault Constant or blinking amber: fault present
5
Logical Status Constant or blinking amber: fault present
6
Top Drawer Fault Constant or blinking amber: fault present in drive, cable, or
sideplane.
7
Bottom Drawer Fault Constant or blinking amber: fault present in drive, cable, or
sideplane.
3
2
1
5
6
7
4
