Quantum QXS G2 Series User Manual

176 QXS G2 Hardware Installation and Maintenance Guide
4 Remove the T10 lock key.

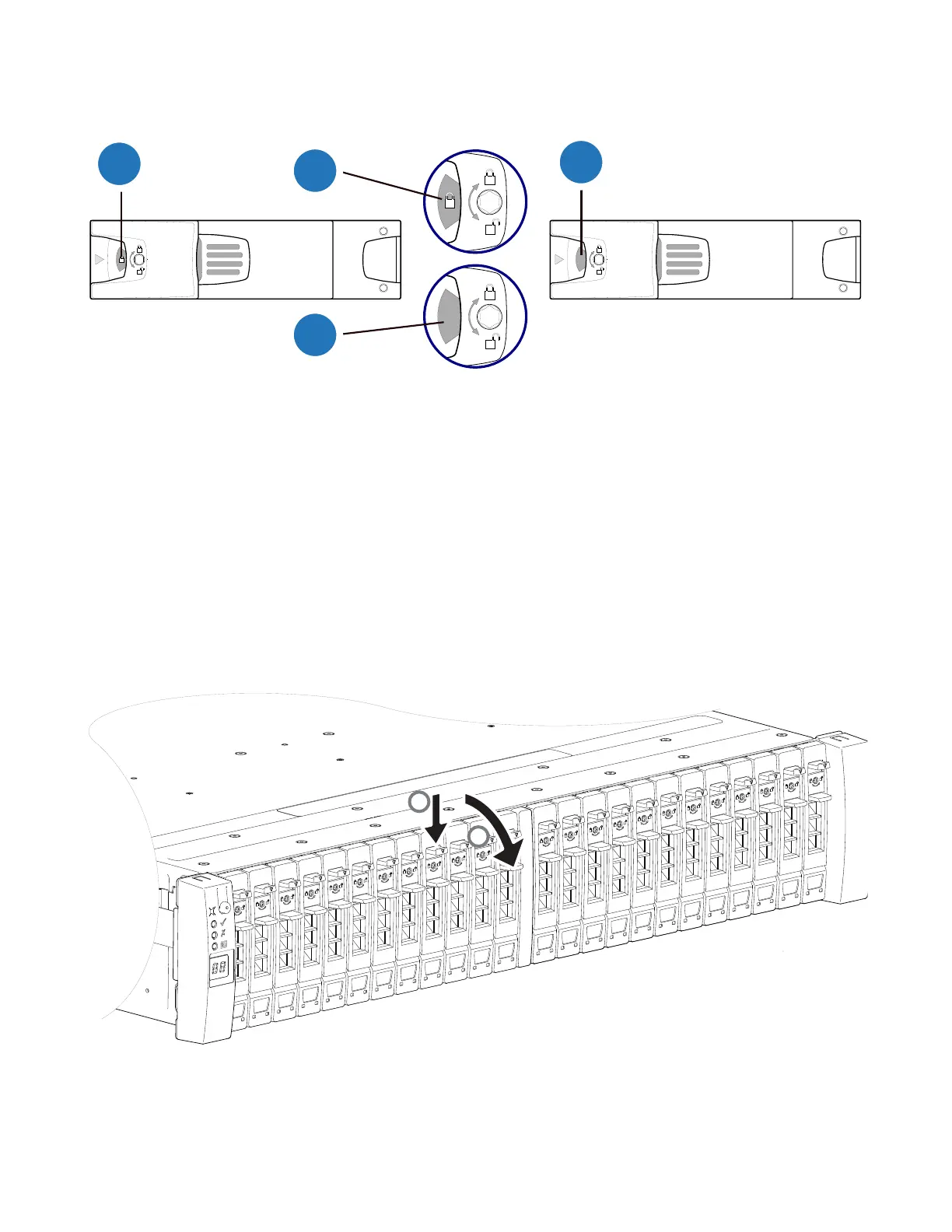

Figure 138 Activating Anti-Tamper Lock
Removing a 2U 2.5” SFF Drive Carrier Module
The removal/replacement procedure for 2.5” SFF drive carrier modules is basically the same as for 3.5”
LFF models, except that the 2.5” SFF carriers are mounted vertically.
1 Refer to Using the Anti-Tamper Locks on page 175 to unlock the anti-tamper lock on the drive
module to allow removal of the drive module.
2
Press the latch in the carrier handle downward to release the carrier handle so that it can revolve
outward as shown below
.
Figure 139 Removing 2.5” SFF Drive Carrier Module-1
3 Gently move the drive carrier module outward from the drive slot.
1
2
3
4
1
Indicator Aperture: Locked
2
Anti-Tamper Lock: Locked Position
3
Indicator Aperture: Unlocked
4
Anti-Tamper Lock: Unlocked Position
1
2
