148 QXS G2 Hardware Installation and Maintenance Guide
2U12 RAID Chassis/Expansion Chassis CRUs
This section provides the following information:
• 2U12 RAID Chassis CRUS (Front)
• 2U12 QXS-G2-312 RAID Chassis CRUS (Rear)
• 2U12 QXS-G2-412 RAID Chassis CRUS (Rear)
• 2U12 Expansion Chassis CRUs (Front)
• 2U12 Expansion Chassis CRUs (Rear)
2U12 RAID Chassis CRUS (Front)

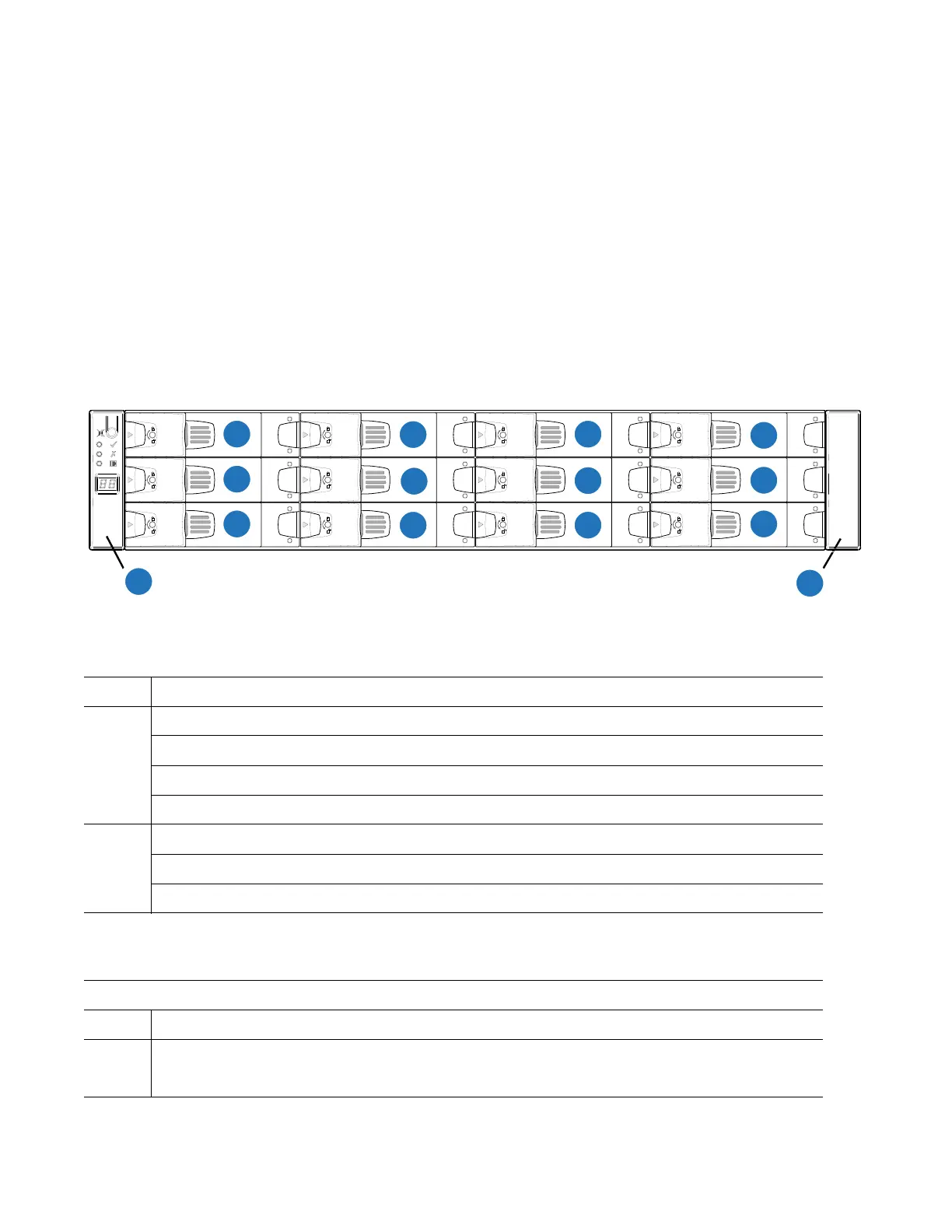

Figure 109 provides the location of the 2U12 RAID chassis CRUs (front). The QXS-G2-312 and
QXS-G2-412 both look the same in front.
Figure 109 2U12 RAID Chassis CRUS (Front)
Tabl e 3 5 provides a list of CRUs in the 2U12 RAID chassis (front and additional CRUs not shown).
1
2
0
3
4
5
6
7
8
9
10
11
12
Ta b l e 3 5 2U12 RAID Chassis CRUs (Front)
Item Chassis Component Description
0-11 Drives (SFF or LFF)
• 3.5" drive module (LFF)
• 2.5" drive module (LFF) with adapter
• Dummy drive carrier module (blank to maintain optimum air flow within chassis)
12 Ear components
• Left ear assembly
• Right ear assembly
Note: The 2U12 RAID Chassis bezel is a CRU (not shown) and can be replaced.
See Removing a 2U Bezel on page 167 and Installing a 2U Bezel on page 167 for the 2U12 bezel
replacement.
Additional CRUs Not Shown
Chassis Chassis (sheet metal chassis that is configurable as a RAID or expansion chassis)
Rail Kit Rail kit (variable attachment options)
2U rack mount kit, shelf, short, all HW
