184 QXS G2 Hardware Installation and Maintenance Guide

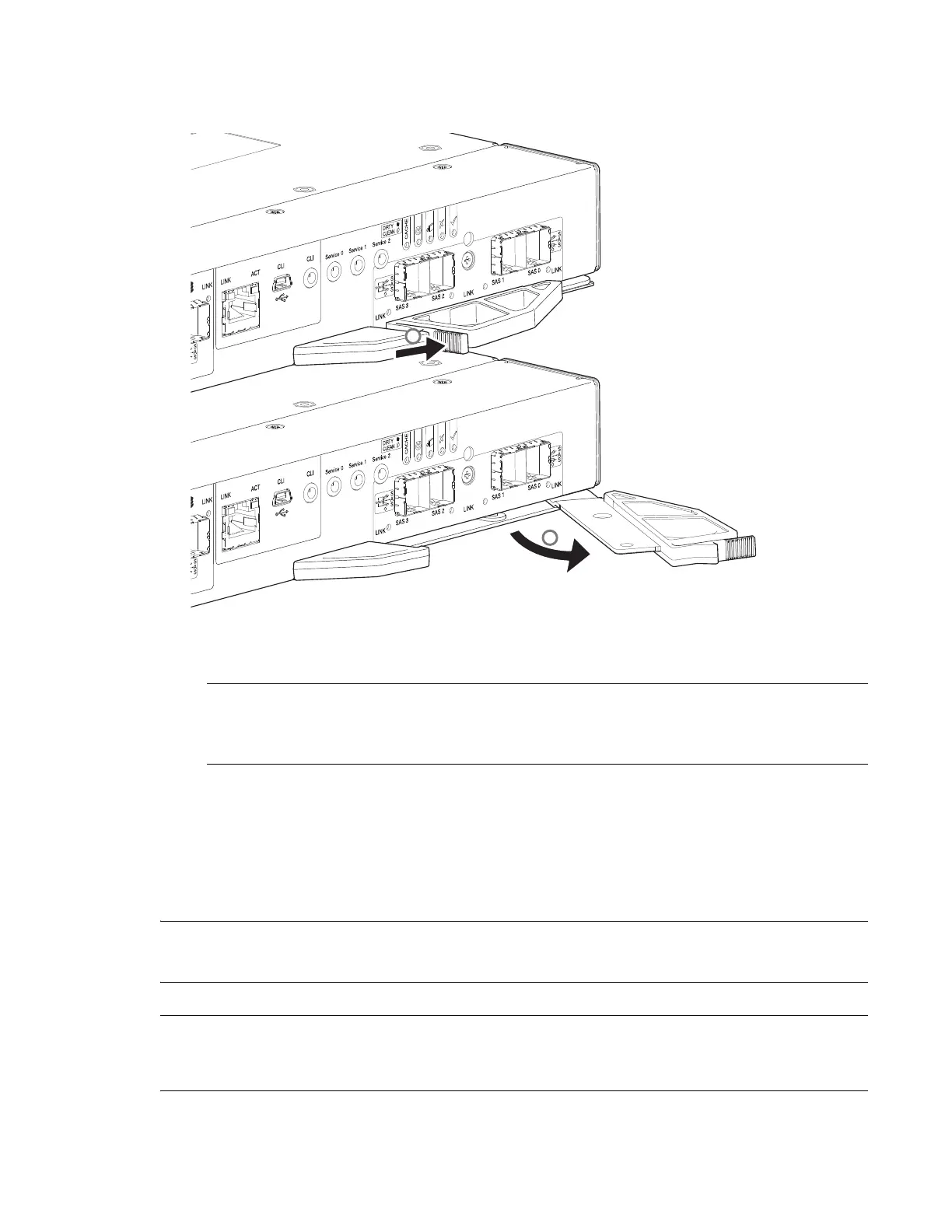

5 Swing the latch handle open as shown in detail No.2 within Figure 144 and Figure 145.
Figure 145 Removing a Controller or Expansion IOM
6 Grip the latch handle and ease the RAID controller or expansion IOM forward from the slot as
shown in detail No.2 within Figure 145.
NOTE: The illustration above shows a 4-port controller module. However, the procedure
applies to all RAID controllers and expansion IOMs discussed herein. They all use the same
latch mechanism, but feature different faceplate geometry.
7 Place both hands on the canister body, and pull it straight out of the chassis such that the RAID
controller or expansion IOM remains level during removal.
Installing a 2U RAID Controller or an Expansion IOM
Comply with all ESD precautions. Refer to ESD Precautions on page 165 for additional information.
CAUTION: I f passive copper cables are connected, the cable must not have a connection to a common
ground/earth point.
NOTE: When performing the following procedure, refer to Figure 145 on page 184 while ignoring
the directional arrow. For installation, the RAID controller or expansion IOM will travel in the opposite
direction relative to the arrow shown.
1
2
