10 QXS G2 Hardware Installation and Maintenance Guide

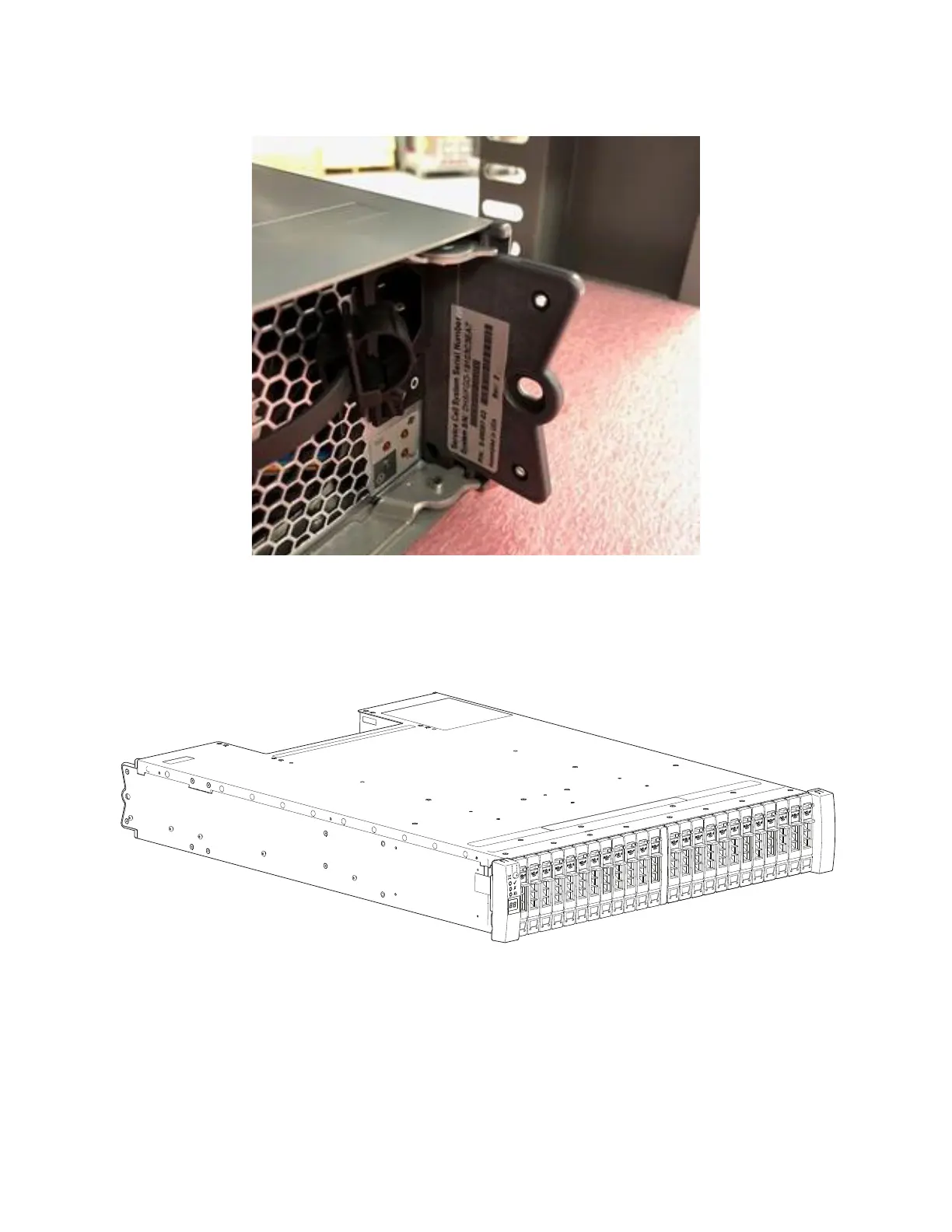

Figure 7 provides the serial number label location on the right-rear ear of the chassis.
Figure 7 Serial Number Label on Right-rear Ear of Chassis
2U24-Drive System
Figure 8 provides a front view of the 2U24-drive system.
Figure 8 2U24-Drive System (Front)
