162 QXS G2 Hardware Installation and Maintenance Guide
RAID Controllers and Expansion IOMs for QXS G2 Systems
CNC Controller for RAID Chassis (2-Host Ports)

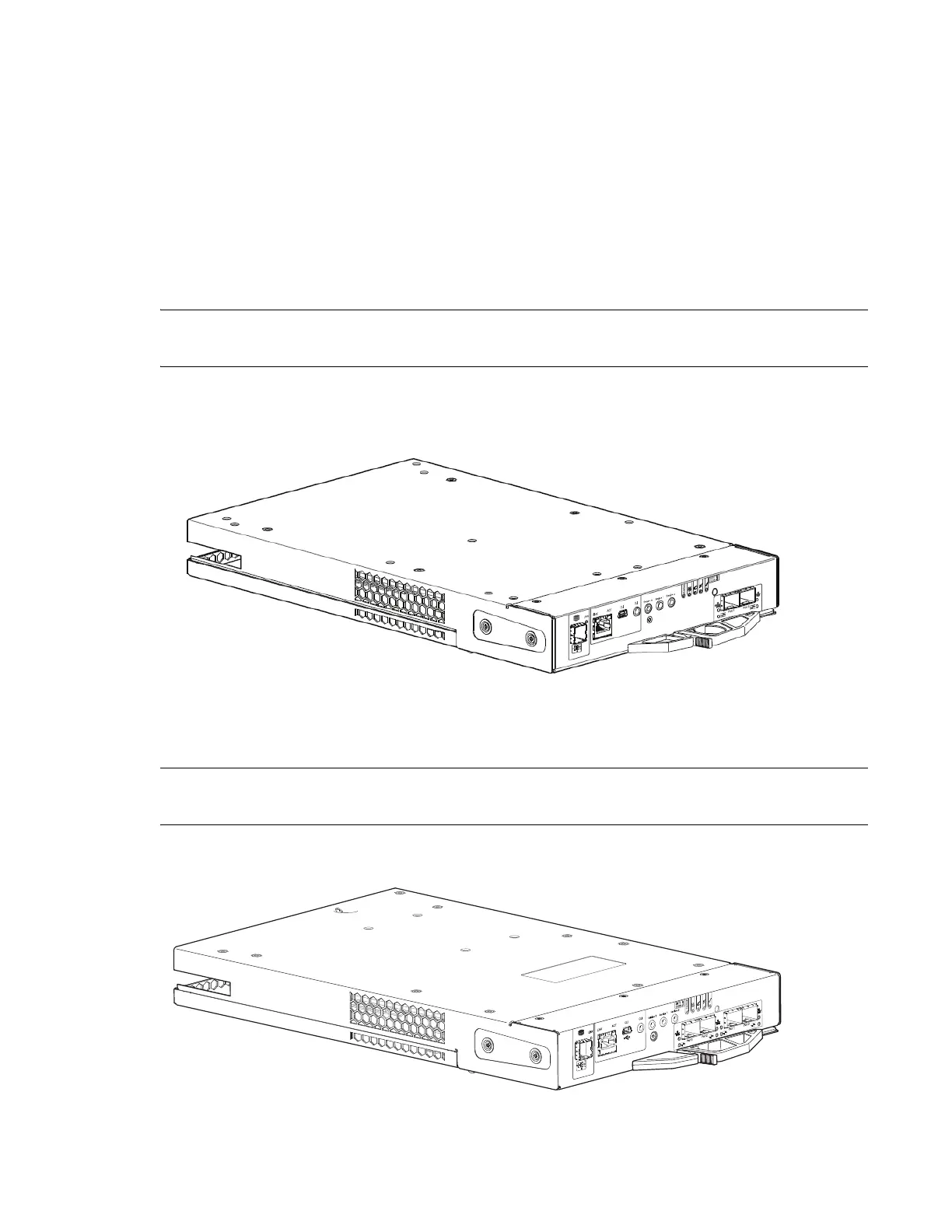

Figure 123 provides an illustration of a CNC controller used in the RAID chassis (2-Port FC/iSCSI module).
NOTE: This CNC controller is used within the QXS-G2-312 and QXS-G2-324 RAID chassis (2-host
port systems).
Figure 123 Controller in RAID Chassis (2-Port FC/iSCSI module)
CNC Controller for RAID Chassis (4-Host Ports)
Figure 124 provides an illustration of a CNC controller used in the RAID chassis (4-Port FC/iSCSI module).
NOTE: This CNC controller is used within the QXS-G2-412, QXS-G2-424, and QXS-G2-484 RAID
chassis (4-host port systems).
Figure 124 Controller in RAID Chassis (4-Port FC/iSCSI module)
