Quantum QXS G2 Series User Manual

Module Remove and Replace 197
Figure 154 5U84 Chassis with Bezel Installed
Removing a 5U84 Bezel
NOTE: Removing Drawer 0 bezel and Drawer 1 bezel is the same process. This is a representative
example of removing the Drawer 1 bezel (lower drawer) from the chassis.
1 Locate the anti-tamper lock (2 Each) and the bezel screws (4 each) on the front of the 5U84
chassis drawer bezel that must be replaced (Figure 155).

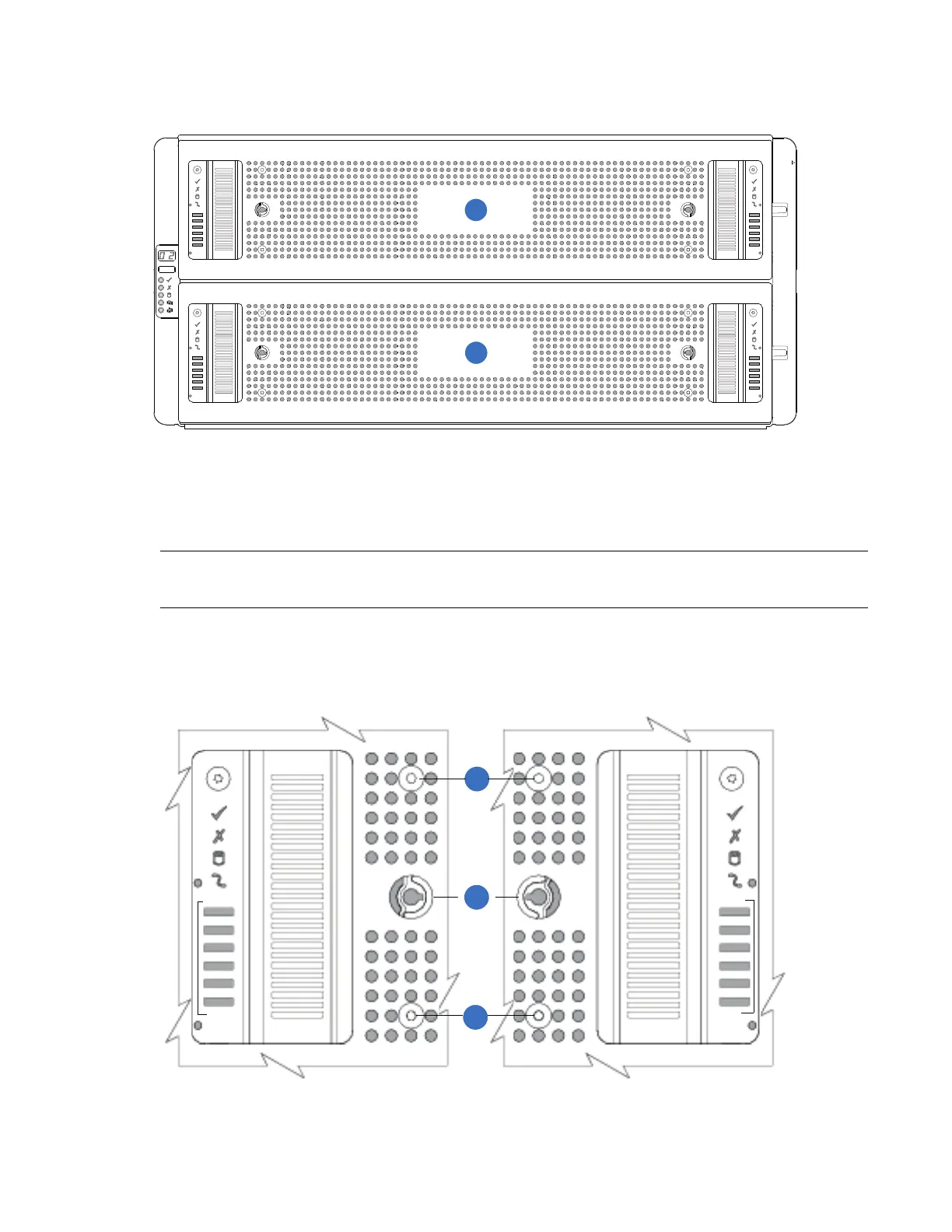

Figure 155 5U84 Chassis Drawer Bezel
1
2
1
Drawer 0 Bezel
2
Drawer 1 Bezel
2
1
2
1
Anti-tamper Lock (2 Each)
2
Bezel Screws (4 each)
