Quantum QXS G2 Series User Manual

18 QXS G2 Hardware Installation and Maintenance Guide
QXS-G2-412, QXS-G2-424, and QXS-G2-484 RAID Chassis Rear View (4-Host
Port Controllers)
NOTE: The QXS-G2-412, QXS-G2-424, and QXS-G2-484 RAID chassis (4-host port controllers) rear
views look identical.
Figure 19 provides an illustration of the chassis rear view with two CNC controllers (4 FC/iSCSI ports).
Refer to the numbers on the CRUs, Figure 19, and the table to identify components within the 2U
chassis. PSU and controller modules are available as CRUs. The RAID chassis use 4-port controller
modules. Use expansion chassis for optionally added storage.
RAID Chassis (CNC Controllers and 4 FC/iSCSI ports)
Figure 19 provides a rear view of the 2U12-drive or 2U24-drive RAID chassis with two CNC controllers
(4 FC/iSCSI ports).

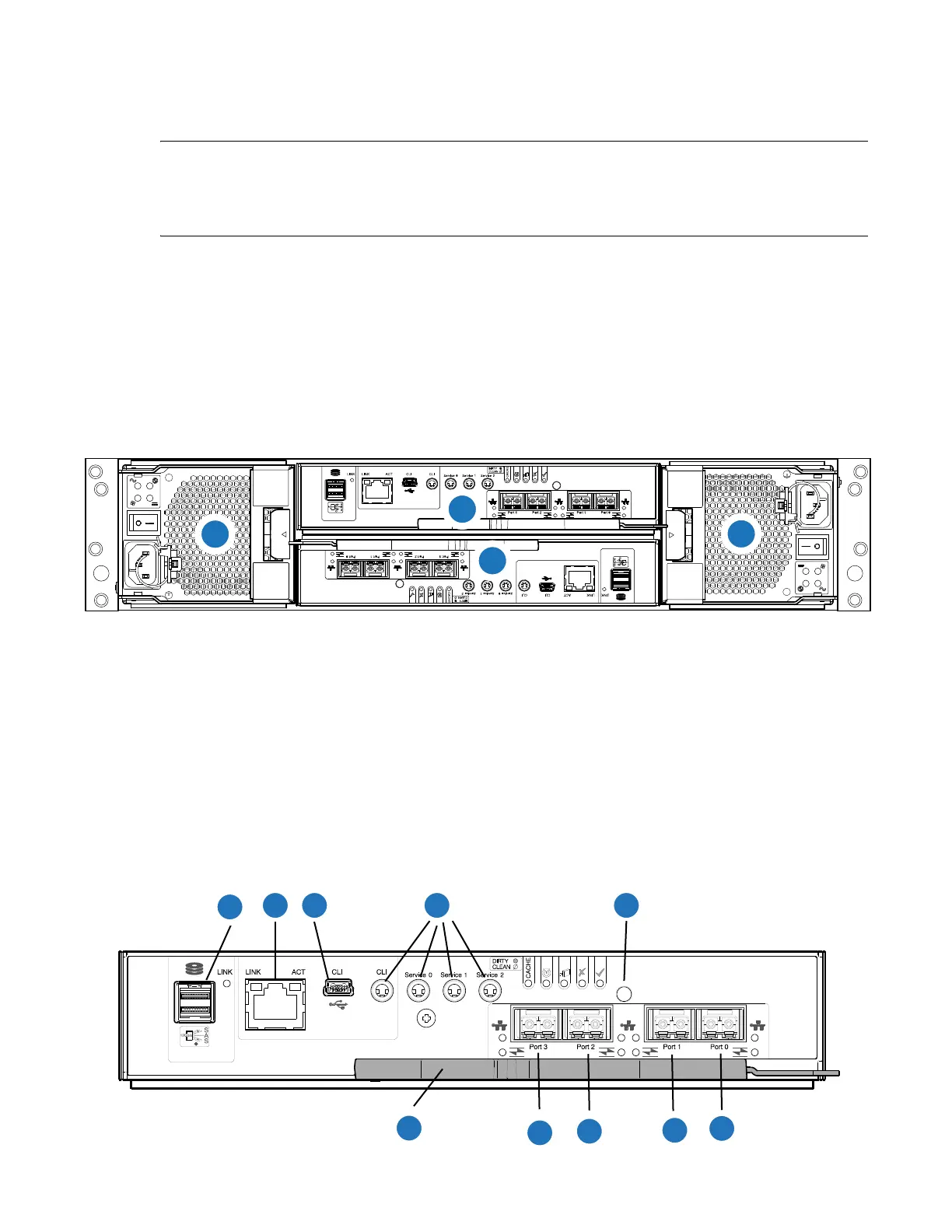

Figure 19 2U12-Drive/2U24-Drive RAID Chassis (4 FC/iSCSI ports)
CNC FC/iSCSI Controller
Callout 1, Figure 19, is the Controller A location. Callout 2, Figure 19, is the Controller B location.
Both controllers are shown in the closed/locked position.
Figure 20 provides a rear view of the CNC FC/iSCSI controller used in the 2U12-drive or 2U24-drive
systems. You can configure the CNC host interface ports (Ports 0, 1, 2 and 3) with 8/16Gb/s FC SFPs;
10GbE iSCSI SFPs; or 1Gb/s RJ-45 SFPs.
Figure 20 CNC FC/iSCSI Controller
4
1
2
3
1
Controller A
2
Controller B
3
PSU0
4
PSU1
2 3 4 5
1
6
7
8
9
10
