Common Procedures
SM 3-17 J012/J013/J014
Replacement
Adjustment
3.2.8 PAPER CASSETTE, OUTPUT TRAY
Here are some important points about cover removals:
 The scanner unit must be raised to the full upright position to remove the left and right
covers.
 The scanner unit must be removed in order to remove the rear cover.
 The right inner cover does not need to be removed in order to remove the scanner unit.
 The tabs of the covers are fragile. Work carefully to avoid breaking the tabs
during cover removal and reinstallation.

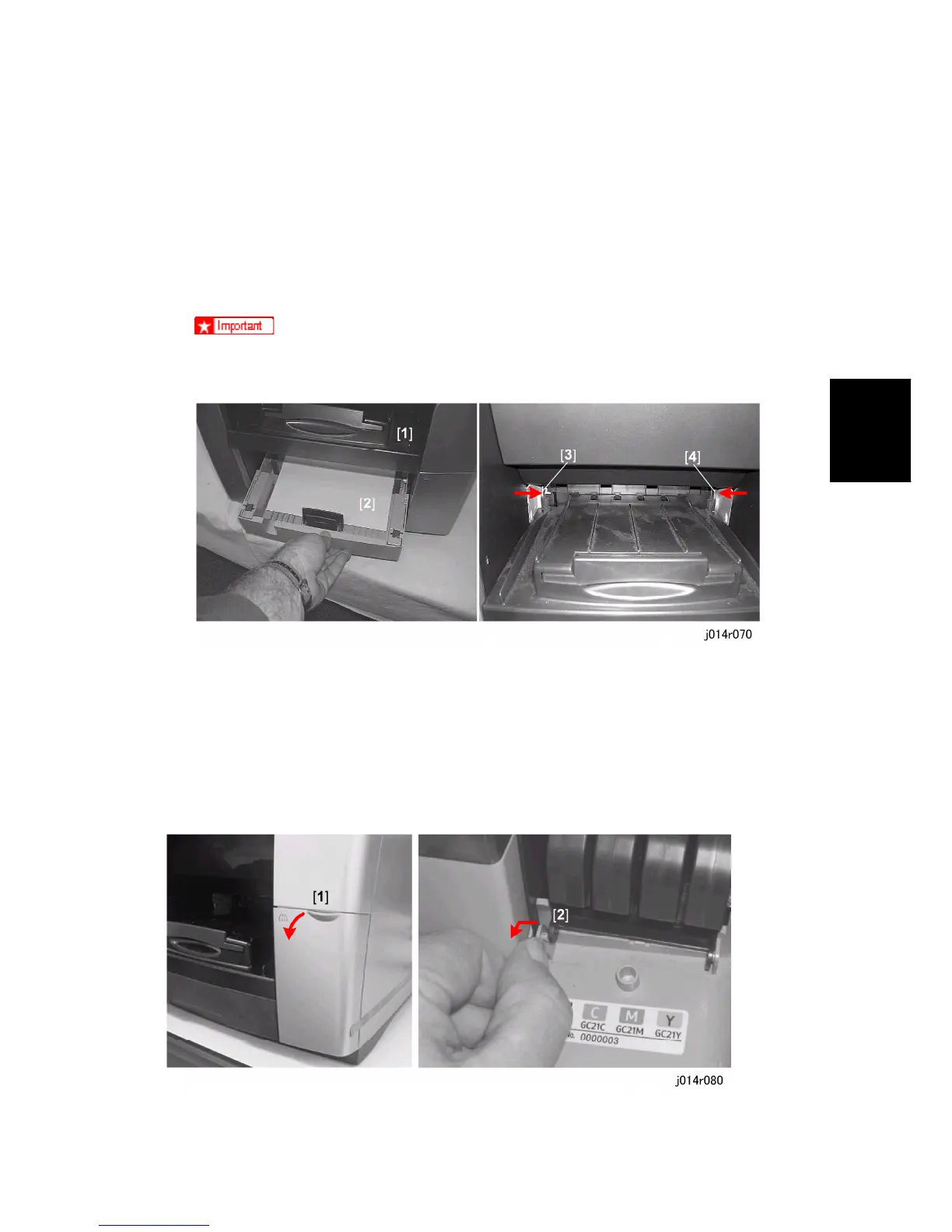

1. Raise the output tray [1].
2. Pull the paper cassette [2] out partially, raise it slightly, then pull it out of the machine.
3. Lower the paper output tray.
4. Use the middle fingers of both hands to press the output tray arms [3] and [4] inward to
release them, then pull the output tray out of the machine.
3.2.9 RIGHT FRONT COVER
CÓPIA NÃO CONTROLADA
CÓPIA NÃO CONTROLADA
