Paper Feed Unit (Option)

SM 6-77 J012/J013/J014

Detailed

Description

6.13.2 PAPER FEED

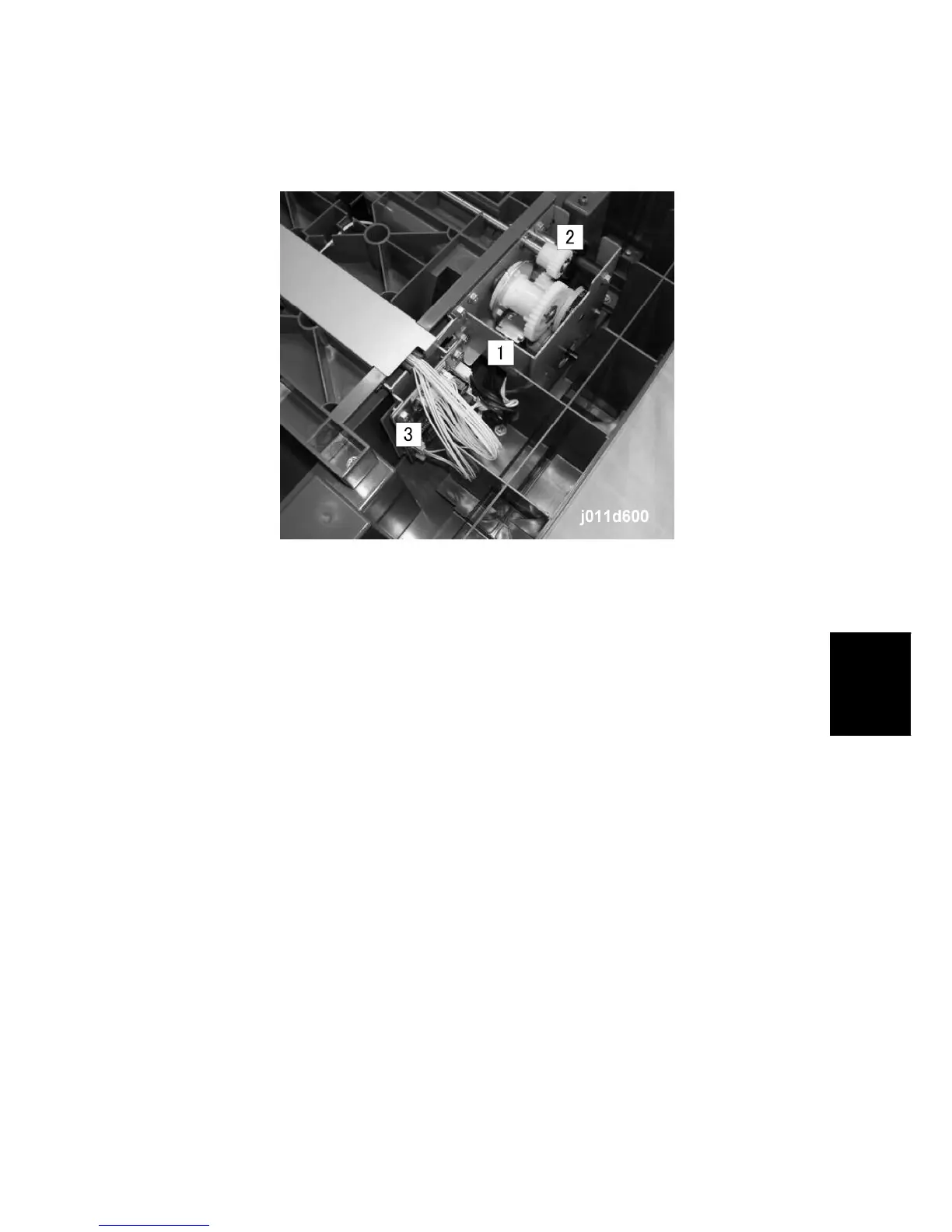

The paper feed motor [1] in the tray drives the feed roller [2]. The control board [3] controls

the operation of the feed clutch (not shown). This engages the shaft where the feed roller is

mounted. Then it rotates it at the prescribed times to feed paper from the tray.

A friction pad at the edge of the cassette below the feed roller does not let sheets double

feed.
