SP Mode Service Tables
J012/J013/J014 5-74 SM
Input Check: Sensors 1/2
5400 INPUT CHK1 Check Input Sensors (1)

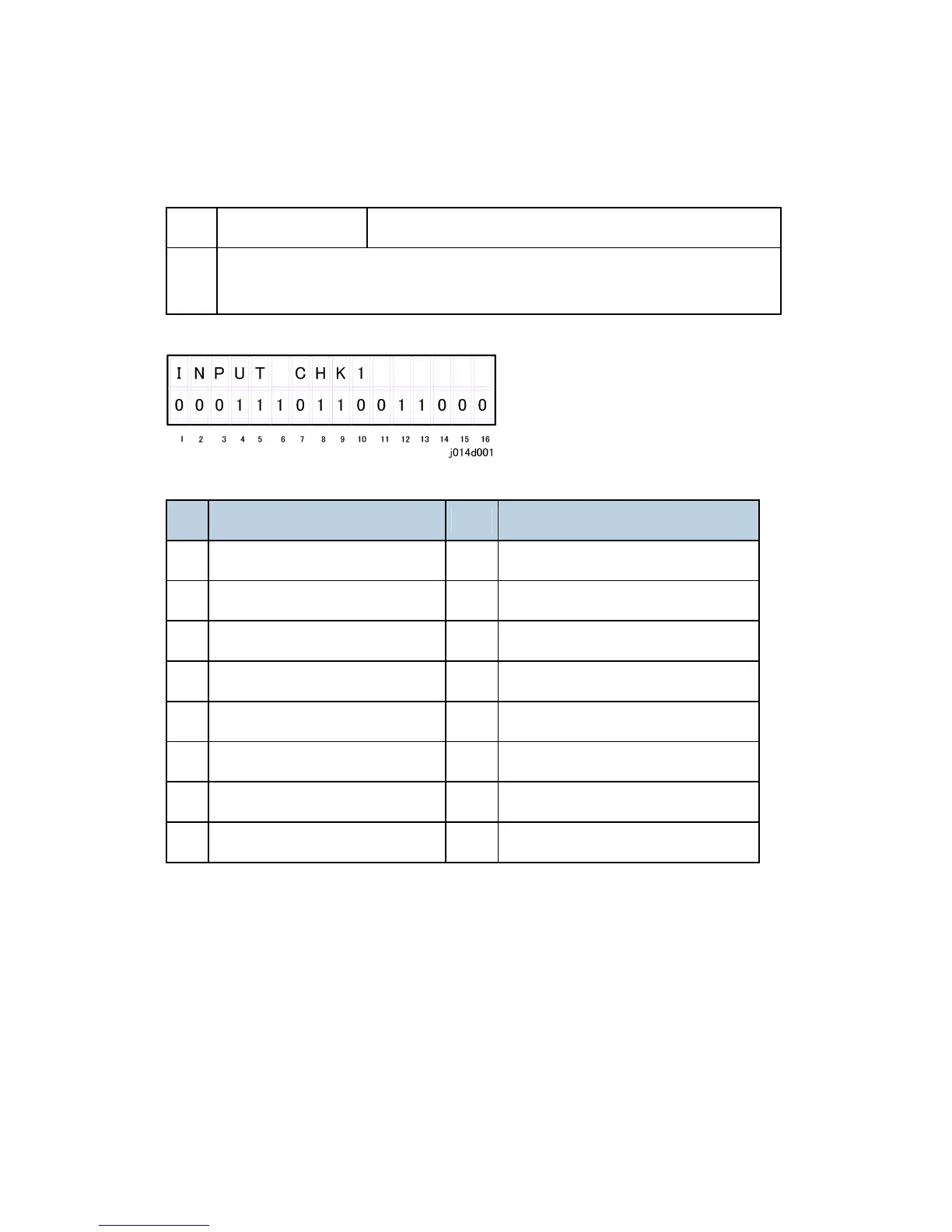

Use this SP to display the on/off status of each sensor. The status of each sensor
(0, 1) is displayed on the 2nd line of the display.
No. Meaning No. Meaning
1 Ink Cartridge Set Switches 9 Trailing Edge Sensor
2 Maintenance HP Sensor 10 2nd Registration Sensor
3 Ink Collector Tank Sensor 11 1st Registration Sensor
4 Carriage Position Sensor 12 Optional Bank Unit Sensor
5 Not Used 13 Bypass tray set Sensor
6 Paper End Sensor – Tray 2 14 Duplexer Set Sensor
7 Paper End Sensor – Tray 1 15 Duplex Cover Sensor
8 Bank Relay Sensor 16 Right Front Cover Sensor
To Next Page
