Important Parts
SM 6-5 J012/J013/J014
Detailed
Description
6.1.2 J013/J014

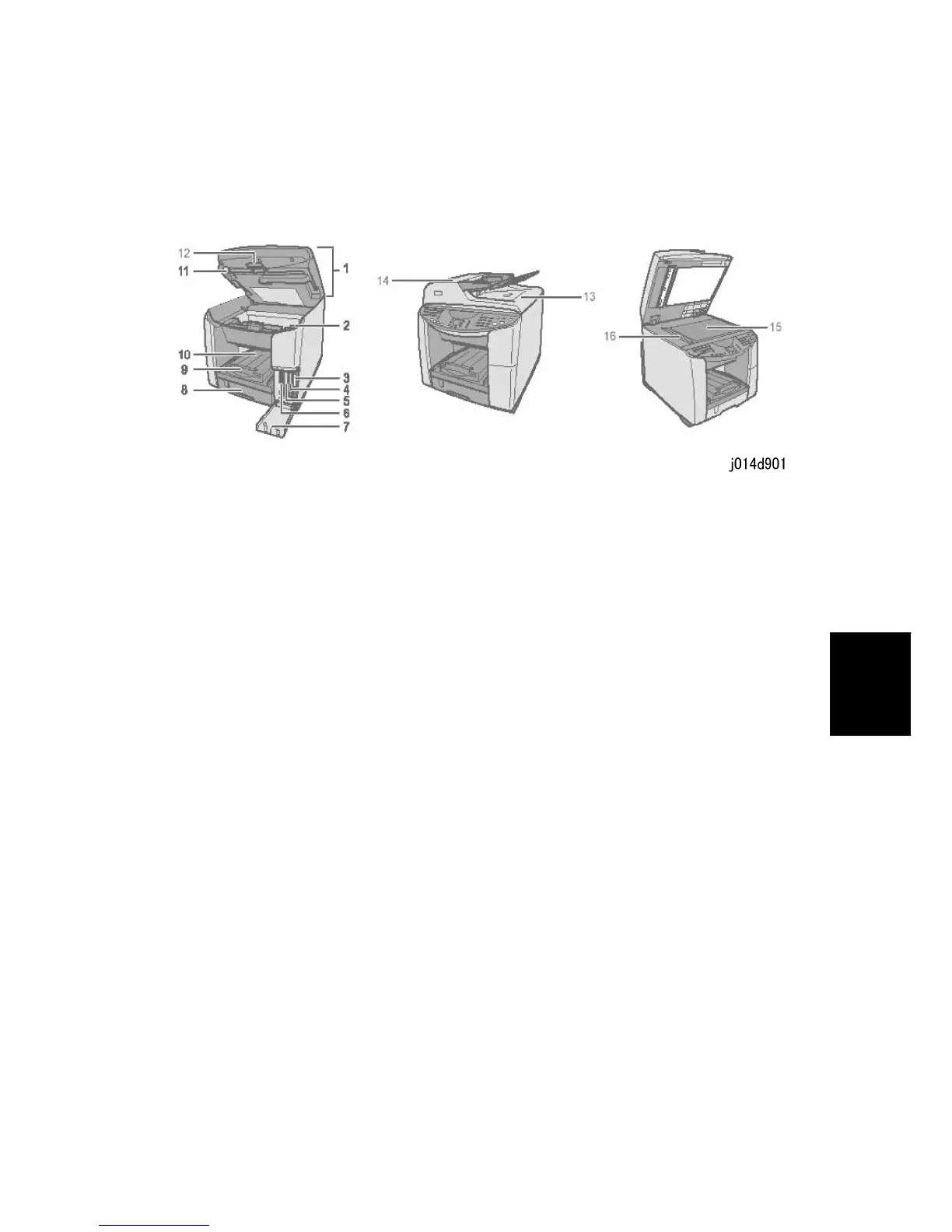

Front View: J013/J014
1. Scanner unit
Open to access the envelope selector, to access the shipping lock, and to remove jams.
Otherwise, keep the scanner unit cover closed.
2. Envelope selector
Push back to print on envelopes. Pull forward to print on all other types of paper.
3. Print cartridge (Y)
4. Print cartridge (M)
5. Print cartridge (C)
6. Print cartridge (K)
7. Right front cover
Open only to install or replace Ink cartridges. Otherwise, this cover should be closed.
8. Tray 1
This is the standard tray that holds paper fed to the machine.
9. Output extension tray
Pull out this extension to print on paper longer than A4 or LTR size paper.
10. Paper output tray
Holds paper that has exited the printer. Pull out the output tray extension when printing
on paper longer than A4 or LTR.
11. Shipping lock
Locks and unlocks the scanning mechanism. Locked only before moving the machine to
keep the scanning mechanism from moving. Be sure to unlock after the machine has
been moved to its new location.
